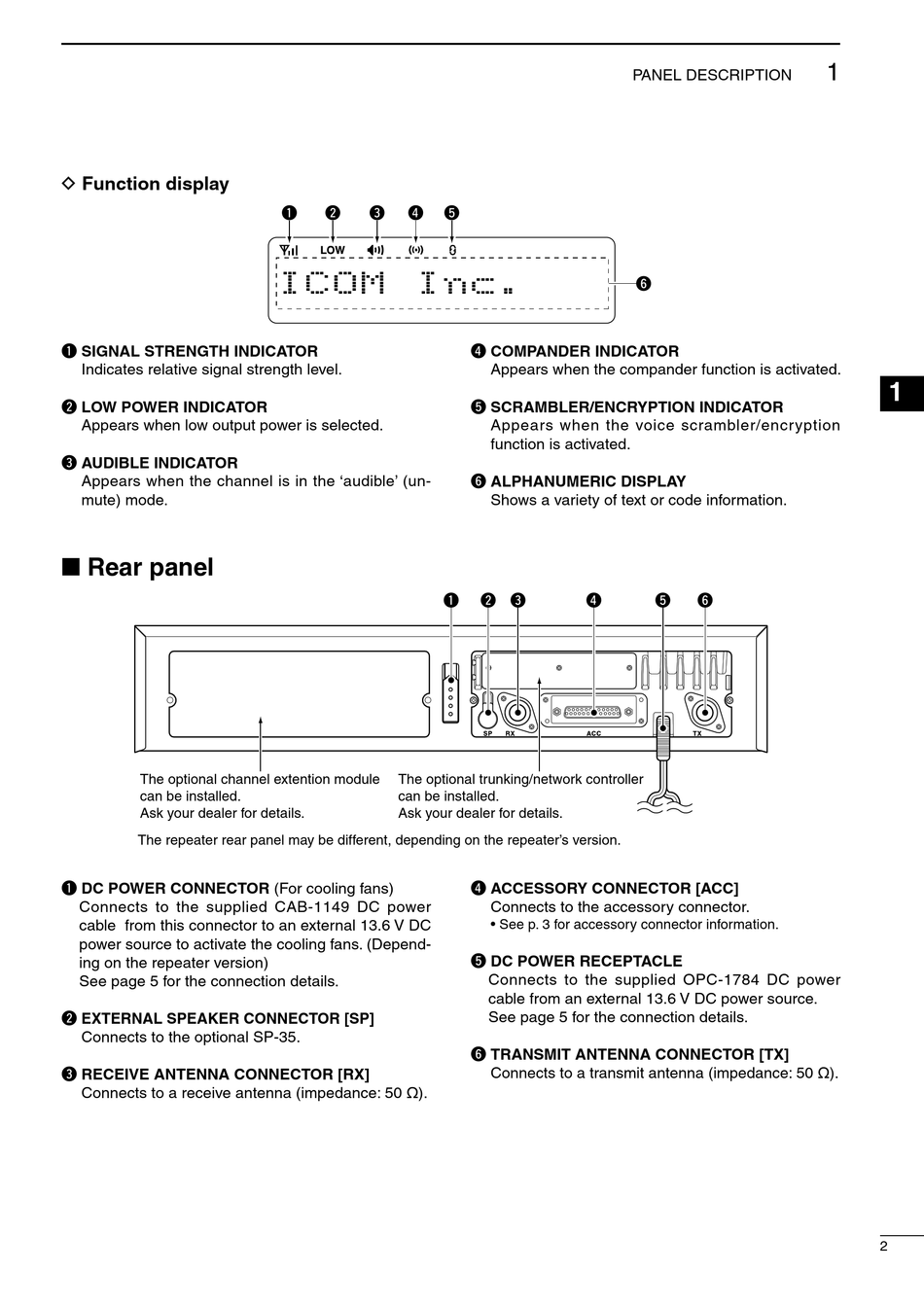

D Function display

q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
Appears when the channel is in the 'audible' (un-
mute) mode.
n Rear panel
The optional channel extention module
can be installed.
Ask your dealer for details.
The repeater rear panel may be different, depending on the repeater's version.
q DC POWER CONNECTOR (For cooling fans)
Connects to the supplied CAB-1149 DC power
cable from this connector to an external 13.6 V DC
power source to activate the cooling fans. (Depend-
ing on the repeater version)
See page 5 for the connection details.
w EXTERNAL SPEAKER CONNECTOR [SP]
Connects to the optional SP-35.
e RECEIVE ANTENNA CONNECTOR [RX]
Connects to a receive antenna (impedance: 50 ø).
q
w
e
r
t
I C O M
I n c .
q
The optional trunking/network controller
can be installed.
Ask your dealer for details.
PANEL DESCRIPTION
y
r COMPANDER INDICATOR
Appears when the compander function is activated.
t SCRAMBLER/ENCRYPTION INDICATOR
Appears when the voice scrambler/encryption
function is activated.
y ALPHANUMERIC DISPLAY
Shows a variety of text or code information.
w e
r
r ACCESSORY CONNECTOR [ACC]
Connects to the accessory connector.
• See p. 3 for accessory connector information.
t DC POWER RECEPTACLE
Connects to the supplied OPC-1784 DC power
cable from an external 13.6 V DC power source.
See page 5 for the connection details.
y TRANSMIT ANTENNA CONNECTOR [TX]
Connects to a transmit antenna (impedance: 50 ø).
