D Function Display; Rear Panel - Icom IC-FR5000 Instruction Manual

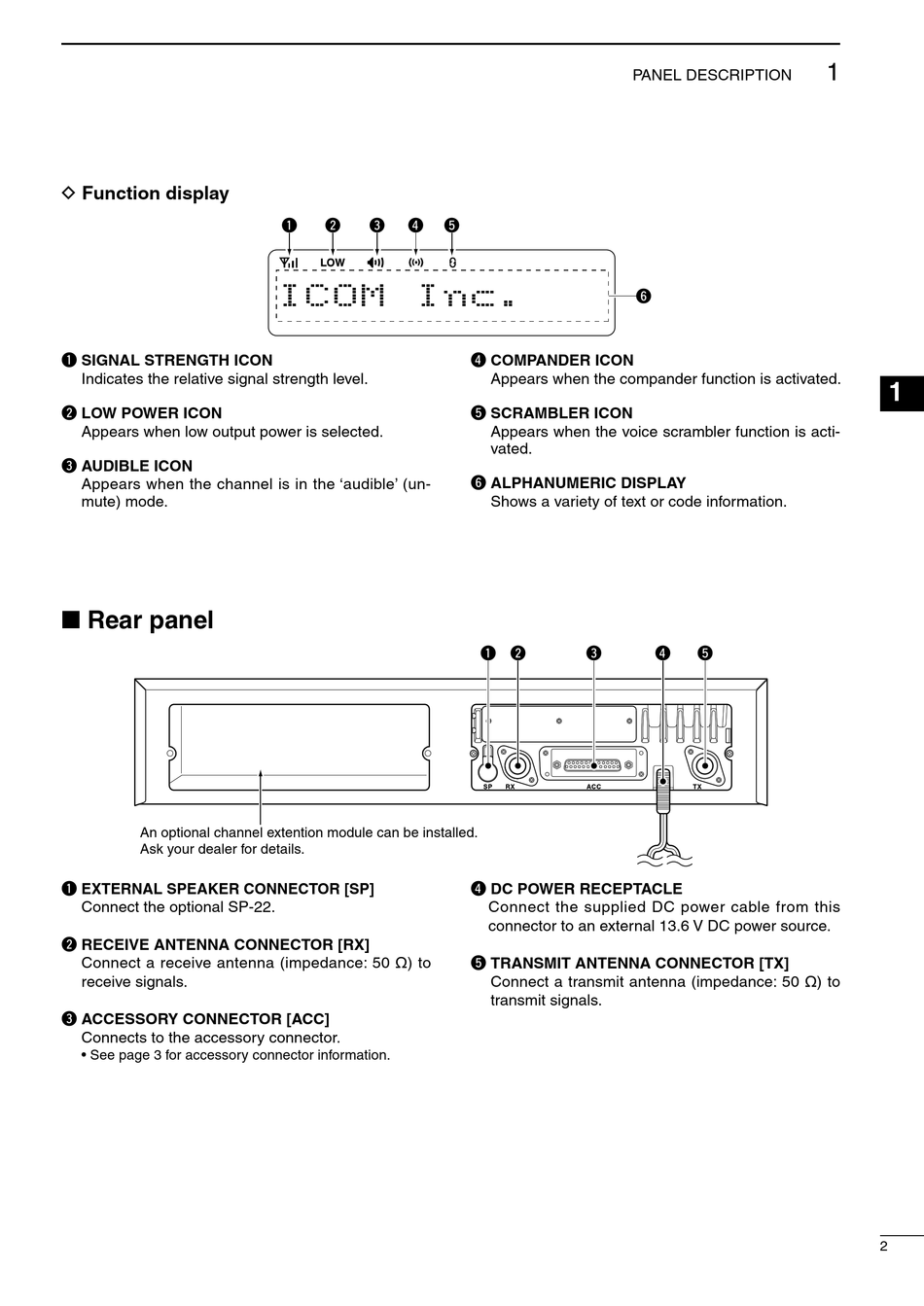

D Function display

q SIGNAL STRENGTH ICON
Indicates the relative signal strength level.
w LOW POWER ICON
Appears when low output power is selected.
e AUDIBLE ICON
Appears when the channel is in the 'audible' (un-
mute) mode.

■ Rear panel

An optional channel extention module can be installed.
Ask your dealer for details.
q EXTERNAL SPEAKER CONNECTOR [SP]
Connect the optional SP-22.
w RECEIVE ANTENNA CONNECTOR [RX]
Connect a receive antenna (impedance: 50 ˘) to
receive signals.
e ACCESSORY CONNECTOR [ACC]
Connects to the accessory connector.
• See page 3 for accessory connector information.
q w e r t
I C O M I n c .
PANEL DESCRIPTION
y
r COMPANDER ICON
Appears when the compander function is activated.
t SCRAMBLER ICON
Appears when the voice scrambler function is acti-
vated.
y ALPHANUMERIC DISPLAY
Shows a variety of text or code information.
q w e
r DC POWER RECEPTACLE
Connect the supplied DC power cable from this
connector to an external 13.6 V DC power source.
t TRANSMIT ANTENNA CONNECTOR [TX]
Connect a transmit antenna (impedance: 50 ˘) to
transmit signals.
