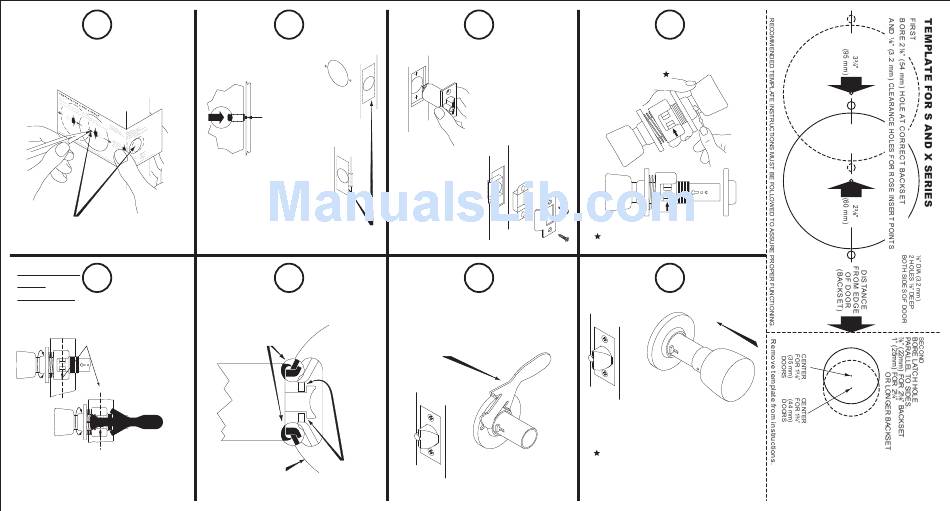

Allegion Falcon S Series How To Install

1
MARK DOOR
Recommended template instructions
must be followed to assure proper
functioning. (See attached template).
Mark centers for latch hole, side hole
and rose insert points on both sides of
door.
ADJUST FOR
5
DOOR
THICKNESS
Hold lock against edge of door. Adjust
outer rose collar so door center mark on
lock housing is in center of door.
Centerline of
door and lock
Door Edge
12172 WRENCH
ALTERNATE
METHOD
Wrench can be used to adjust lock for door
thickness by holding tip of wrench against
rose insert and turning rose collar until
desired arrow on wrench lines up with arrow
on lock case.
2
BORE 3 HOLES
A. Bore side hole from both
sides of door.
A
B
B. Bore latch hole.
Use strike locating tool
or other pointed object
to locate position for
hole in jamb.
C. Bore jamb.
C
NOTE: A minimum ³⁄₄"
deep hole must be
bored in frame behind
opening in strike for
proper function of latch bolt.
Outline latch face and strike as illustrated
and chisel out to proper depth.
6
ENGAGE LOCK WITH LATCH
Both latch prongs engage housing.
Retractor
Housing
engages
latch tail.
3
INSTALL LATCH AND STRIKE
Install latch.
Be sure beveled
side of latch
bolt is facing
the door frame.
If dust box is
to be used,
clear area
with wood
chisel.
7
SECURE LOCK TO DOOR
Replace inside rose and collar
and using spanner wrench
turn collar clockwise and
tighten firmly.
4
REMOVE INSIDE TRIM
Depress knob catch to remove knob.
Remove rose by unscrewing collar
If Cylinder knob, see reverse side.
8
INSTALL KNOB
Place knob on spindle, slide to knob
catch, depress knob catch and push
knob until catch engages slot in knob.
If cylinder knob, see reverse side.
FOLD ALONG EDGE OF DOOR
