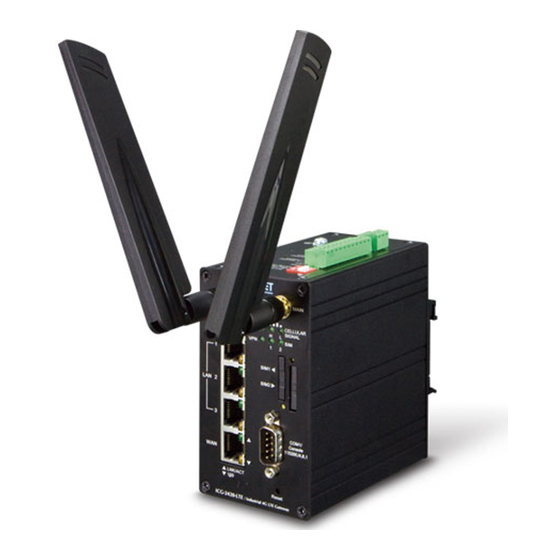

- Page 1 Industrial 4G LTE Cellular Gateway ICG-2420-LTE Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ............... 3 2. Requirements ................4 3. Starting Web Management ............5 4. Terminal Setup ................8 4.1. Logon to Console ..............9 4.2. Configuring IP Address ............9 5. Recovering Back to Default Configuration ........11 6. Customer Support ..............12... -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET Industrial 4G LTE Cellular Gateway. Please refer to the table list below for the two models used in Europe and the U.S.: 4G LTE Model Name ICG-2420-LTE-EU B1/B3/B5/B7/B8/B20 B38/B40/B41 ICG-2420-LTE-US B2/B4/B12 Please contact your cellular carrier for more details about LTE band support. Note “Cellular Gateway” is used as an alternative name in this Quick Installation Guide. -
Page 4: Requirements
2. Requirements Workstations running Windows 10/XP/2003/Vista/7/8/2008, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/ IP protocols. Workstations are installed with Ethernet NIC (Network Interface Card) Ethernet Port Connection ¾ Network cables -- Use standard network (UTP) cables with RJ45 connectors. -
Page 5: Starting Web Management
For example, the default IP address of the Cellular Gateway is 192.168.1.1, then the manager PC should be set to 192.168.1.x (where x is a number between 2 and 254), and the default subnet mask is 255.255.255.0. ICG-2420-LTE RJ45/UTP Cable PC / Workstation with Web IP Address: Browser 192.168.1.x... - Page 6 2. After entering the http://192.168.1.1 the main screen appears as Figure 3-2 shows. Figure 3-2: Web-based Main Screen of Cellular Gateway 3. When any function item is pressed, the following dialog box will appear. Please enter the default user name and password “admin” (or the password you have changed via console). Default IP Address: 192.168.1.1 Default Username: admin Default Password: admin...
- Page 7 The Cellular Gateway Menu on the left of the Web page lets you access all the commands and statistics the Cellular Gateway provides. Figure 3-4: Cellular Gateway Menu Now, you can use the Web management interface to continue the Cellular Gateway management or manage the Cellular Gateway by console interface. Please refer to the user’s manual for more.
-
Page 8: Terminal Setup
4. Terminal Setup It is optional for you to configure the system by connecting a serial cable (not included in the package) to a COM port on a PC or notebook computer and to the serial port of the Cellular Gateway. ICG-2420-LTE Serial Port PC/Workstation with Terminal Emulation Software RS232 DB9 Cable... -
Page 9: Logon To Console
Users must use the Null-Modem cable directly connected to the Cellular Gateway. The Null-Modem DB9 connector shown in the Important picture must be used. 4.1. Logon to Console Once the terminal is connected to the device, power on the Cellular Gateway, and the terminal will display “running testing procedures”. Then, the following message asks to log-in user name and password. - Page 10 IP Address: 192.168.1.1 Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the Cellular Gateway, please use the procedures as follows: Show the current IP Address 1. At the “#” prompt, enter “lan ipv4 ip list”. 2. The screen displays the current IP address as shown in Figure 4-4. Figure 4-4: IP Information Screen Configuring IP Address 3. At the “#” prompt, enter the following command and press <Enter>...
-
Page 11: Recovering Back To Default Configuration
10 seconds. After the device is rebooted, you can login the management Web interface within the same subnet of 192.168.1.xx. MAIN CELLULAR SIGNAL SIM1 SIM2 COM1/ Console 115200,N,8,1 LNK/ACT Reset Reset ICG-2420-LTE Industrial 4G LTE Gateway Figure 5-1: ICG-2420-LTE Reset Button... -
Page 12: Customer Support
6. Customer Support You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. PLANET online FAQ: http://www.planet.com.tw/en/support/faq.php?type=1 Switch support team mail address: support@planet.com.tw ICG-2420-LTE User’s Manual: http://www.planet.com.tw/en/support/download. php?type1=22153&model=&type=3 (Please select your model name from the drop-down menu of Product Model.)
