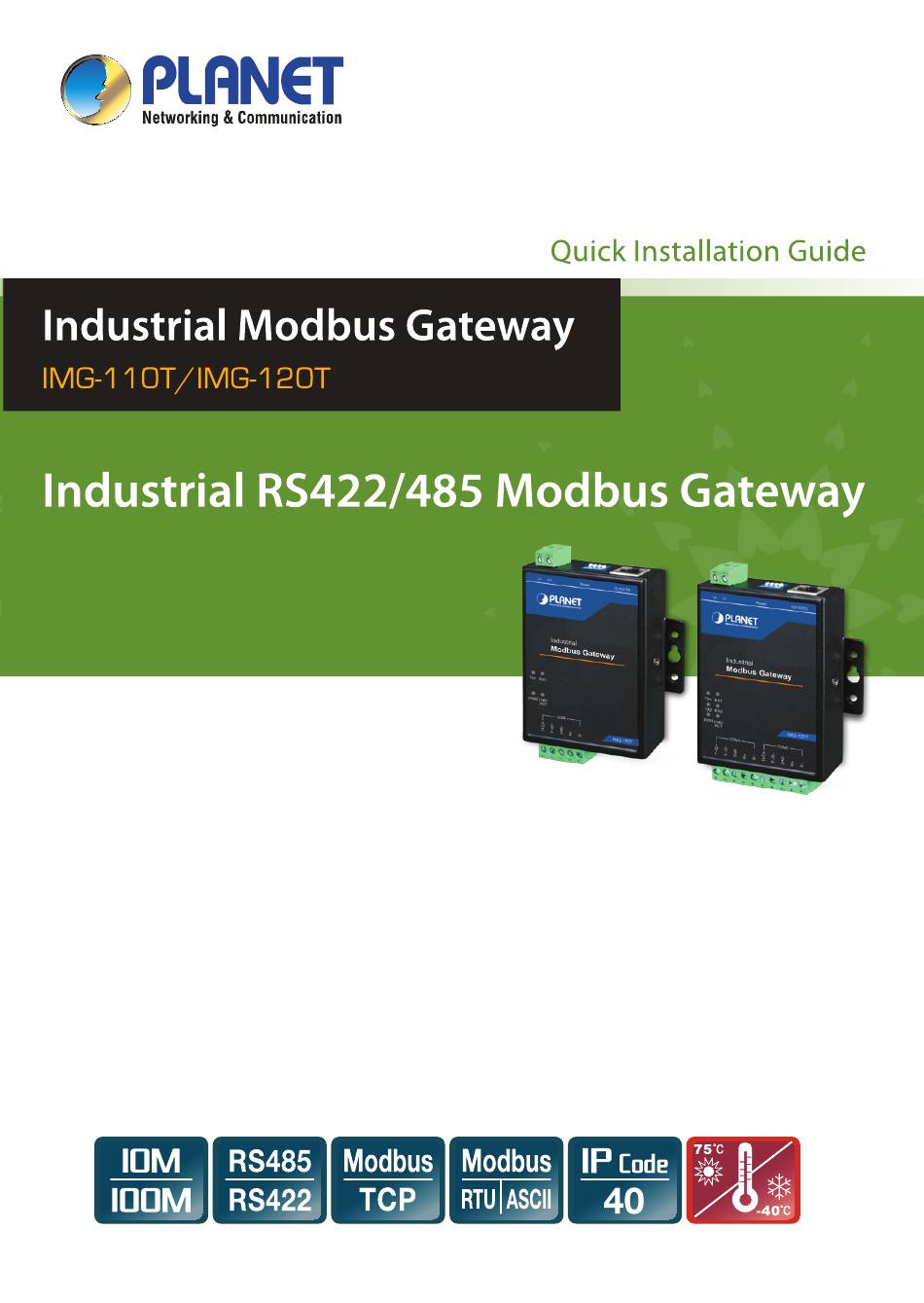

Planet IMG-110T Quick Installation Manual

Industrial rs422/485 modbus gateway
Hide thumbs Also See for IMG-110T:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMG-110T and is the answer not in the manual?

Questions and answers

Related Manuals for Planet IMG-110T

Summary of Contents for Planet IMG-110T

  • Page 2: Package Contents

    RS422/485 Modbus Gateway, IMG-110T/120T. “Industrial Modbus Gateway” mentioned in this quick installation guide refers to the IMG-110T/120T. Open the box of the Industrial Modbus Gateway and carefully unpack it. The box should contain the following items: Industrial Modbus Quick Installation User’s Manual...
  • Page 3 2. Requirements z Ethernet Port Connection z Workstations running Windows XP/2003/Vista/7/8/ 2008/10, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP protocols. z Workstations are installed with Ethernet NIC (Network Interface Card)  Network cables -- Use standard network (UTP) cables with RJ45 connectors.

  • Page 4: Physical Introduction

    3. Physical Introduction RS422/485 Serial IMG-110T: 5-contact terminal block connector IMG-120T: 10-contact terminal block connector Reset 10/100TX Ethernet port LED indicator (LNK/ACT) Power LED indicator Industrial Modbus Gateway Serial receive data indicator (RX) Serial transmit data LNK/ IMG-120T COM1 COM2...
  • Page 5 DC power input and the DC power input range is 9-48V. Please follow the DC power input symbol from the front panel of the IMG-110T/120T -- insert positive DC power wire into V+, and negative DC power wire into V-. Other- Note wise, it will damage the device.
  • Page 6 RS485 PIN Define RS422 PIN Define  IMG-120T: The 10-contact terminal block connector on the lower panel of the Industrial Modbus Gateway is used for RS422/485 connection. 1 2 3 4 5 6 7 8 9 10 Serial port PIN RS485 PIN define RS422 PIN define COM1 COM2...

  • Page 7: Starting Web Management

    4. Starting Web Management following shows start Management of the Industrial Modbus Gateway. Note the Industrial Modbus Gateway is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. For example, the default IP address of the Industrial Modbus Gateway is 192.168.0.100, then the manager PC should be set to 192.168.0.x (where x is a number between 1 and 254, except 100) and the default subnet...
  • Page 8 Logging in to the Industrial Modbus Gateway 1. Use Internet Explorer 8.0 or above Web browser and enter IP address http://192.168.0.100 to access the Web interface. 2. When the following dialog box appears, please enter the default user name and password “admin”. The login screen in Figure 4-2 appears.
  • Page 9 3. After entering the username and password, the main screen appears as Figure 4-3 shows. Figure 4-3: Web Main Screen of Industrial Modbus Gateway - 8 -...
  • Page 10 The Industrial Modbus Gateway Menu on the left of the Web page lets you access all the commands and statistics the Industrial Modbus Gateway provides. Figure 4-4: Industrial Modbus Gateway Menu Now, you can use the Web management interface to continue the Industrial Modbus Gateway management.

  • Page 11: Recovering Back To Default Configuration

    5. Recovering Back to Default Configuration  IP address has been changed or admin password has been forgotten – To reset the IP address to the default IP address “192.168.0.100” or reset the login password to default value, there are two solutions. Please refer to the following for more details.
  • Page 12 DIP 2 to the lower position. Otherwise, the Note Industrial Modbus Gateway will continue to reset to the factory default mode. 2: Reset to default through PLANET Modbus Gateway Utility 2.1: Activate PLANET Modbus Gateway Utility. 2.2: Search the Industrial Modbus Gateway that needs to be reset to default and choose the device.
  • Page 13 2.4: Click “Yes” when the “Are you sure to restore factory settings” pop up window appears. 2.5: Press “OK” complete factory default procedure. - 12 -...
  • Page 14 2.6: Search the device again and you will see the Industrial Modbus Gateway with default IP address, and username and password: “admin”. - 13 -...

  • Page 15: Customer Support

    Thank you for purchasing PLANET products. You can browse our online FAQ resource and user’s manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET media converter support team.

This manual is also suitable for:

Img-120t
