Web: Profile Editor
Create a new profile or edit an existing one using the
profile-editor. Profile Editor opens in a new page in your
web browser. Select a module on the left and the right
panel will provide help about that panel. Connect a
module to another using wires from one point to another.
The direction of the wire (arrow) is important, the arrow
signifies output, and reflects the flow of data.

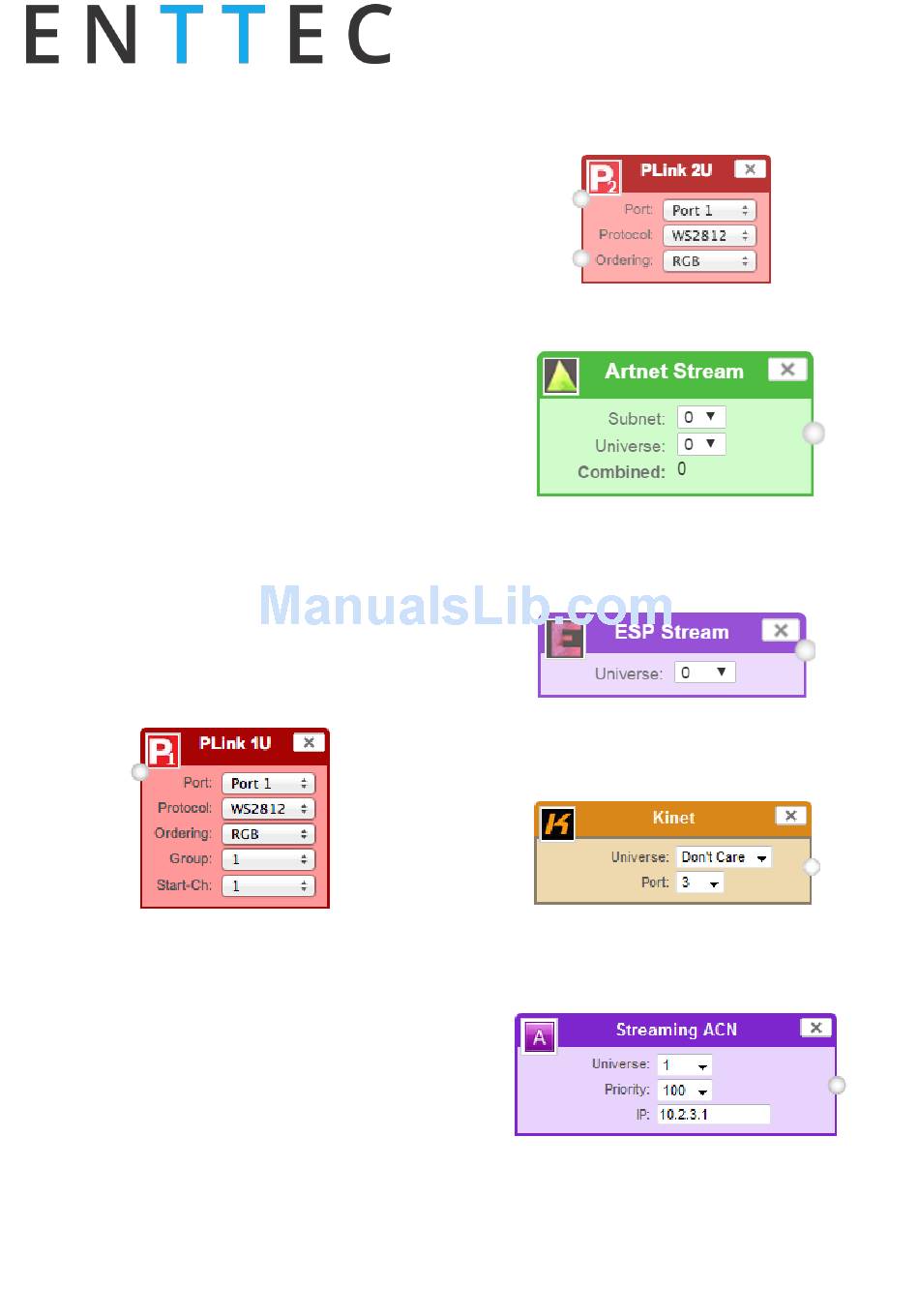

Web: Profile Modules
Each profile is made up of two or more connected
Modules or Actions. The relationship between them
forms the layout of the data flow within the profile.
The following modules are available:
PLink 1U
The module represents one of the physical
ports on the rear of this unit, and maps to 1 Universe.
Protocol: select the led protocol that the pixel
•
tape conforms to.
Ordering: RGB or RGBW mapping that the pixel
•
tape conforms to. RGB modes use 3 DMX slots per
LED pixel, and RGBW modes use 4 DMX slots.
Grouping: it allows one DMX pixel to drive
•
multiple physical LED pixels
Start-Ch: DMX Start Channel for the 1
•
be changed as needed.
Limitation: Same PLink port# cannot be re-used within
the same profile
PLink 2U
The module represents one of the physical
ports on the rear of this unit, and maps to 2 Universe.
Each PLink 2U module has 2 input nodes that can
•
be connected to two Ethernet streams. Top one
(U1) is mapped to the First universe and Bottom
one (U2) is mapped to the Second universe
relative to the pixel-tape.
Protocol: select the led protocol that the pixel
•
tape conforms to.
Ordering: RGB or RGBW mapping that the pixel
•
tape conforms to.
Limitation: Same PLink port# cannot be re-used within
the same profile
US Patent Patenting
Art-Net Stream:
address used when the stream is sending data only.
ESP Stream
stream (ESP).
IP address is the destination address used when the
stream is sending data only.
st pixel can
Kinet Stream
to an Art-Net Stream to convert and output as Art-Net. (Kinet
stream is supported as input only) .
Streaming ACN
used when
(default is disabled = 0.0.0.0)
DMX Generator
values and assign the selected ones.
Snapshot feature can be used to capture values from an
input stream. All modifications can be done using the
DMX Grid Page.
ID: 2114
"Send IP address": is the destination
: ENTTEC Show protocol DMX over Ethernet
: For example: You can connect Kinet Stream
: "IP address" is the destination address
the stream is sending
: Define your own custom DMX Channel
User Manual
50657 (PIXELATOR)
www.enttec.com
data only
