Enttec Pixelator 70060 Quick Start Manual

Box Contents

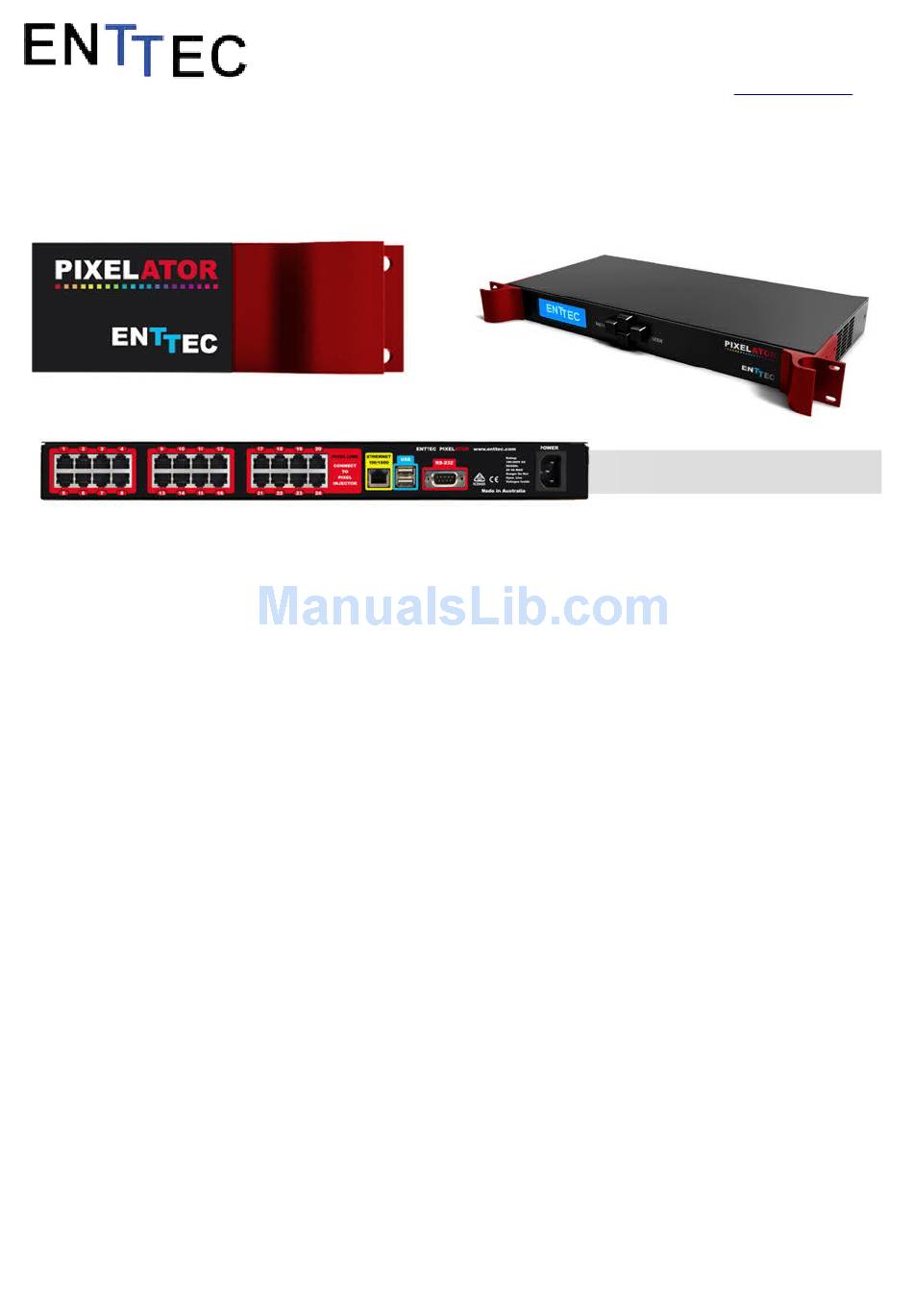

Pixelator (pn:70060)
•
Straight connect Ethernet lead (pn:79102)
•
IEC power cord (country dependent plug)
•
User manual (pn: 50657)
•
Physical Features
24 Pixel Link ( RJ-45) ports (data output only)
•
Gigabit Ethernet Connection
•
LCD display provide status information on system
•
and data flow
Software Features
Pixel Protocol is configurable for each Pixel Link
•
port (WS2812B or APA-104)
Pixel Grouping is configurable for each Pixel Link
•
port (up-to 340)
Pixel Ordering is configurable for each Pixel Link
•
port (RGB and RGBW modes)
Each Pixel Link can be assigned upto 2 Ethernet
•
Universes. (allows 340 indivudal leds to be
assigned from each port in RGB modes)
All configurations
•
browser.
PIXELATOR
are made through
US Patent Patenting
( P N 7 0 0 6 0 )
Graphical User Interface for creating and editing
•
ports is flow-chart oriented and documents data
flow as you configure it.
Clock module to sync multiple universes output
•
Supports following DMX over Ethernet protocols:
•
◦ ESP
◦ Art-Net
◦ StreamingACN (sACN)
◦ KiNet
DMX Generator and Stream snapshot (web) .
•
Safety
Do not expose the unit to rain or moisture, doing
•
this will void the warranty
Do not remove the cover, there are no serviceable
•
parts inside
Since the Pixelator is designed to run 24/7, the fan
•
will always remain on, however it can be disabled if
needed.
Basic Setup
ENTTEC
Pixelator is a standard Art-Net node. Because of
this, you can use the device with applications, consoles,
web
desks, or controllers that are compatible with Art-Net to
distribute Art-Net data via Ethernet network.
Quick Start Manual
50657 (PIXELATOR)
for more information visit:
enttec.com/pixelator
