Enttec Pixelator 70060 User Manual

Box Contents
Pixelator (Part #:70060)
•
Straight connect Ethernet lead (Part #: 79102)
•
IEC power cord (country dependent plug)
•
User manual (Part #: 50657)
•
LED Protocols Supported
9PDOT-8bit and 9PDOT-16bit
•
WS2811, WS2812, WS2813, WS2812B
•
APA-104 LEDs
•
SK6812 – use WS2812B
•
TM1804 – use WS2812B
•
TM1812 – use WS2812B
•
Notes:
▪ 9PDOT protocols are only supported by revB (units sold from 2017
onwards)
▪ We cannot claim to support other led protocols similar to the ones
supported by Pixelator. If you happen to find one that works, and is
not listed, please let us know, so we can update our documentation

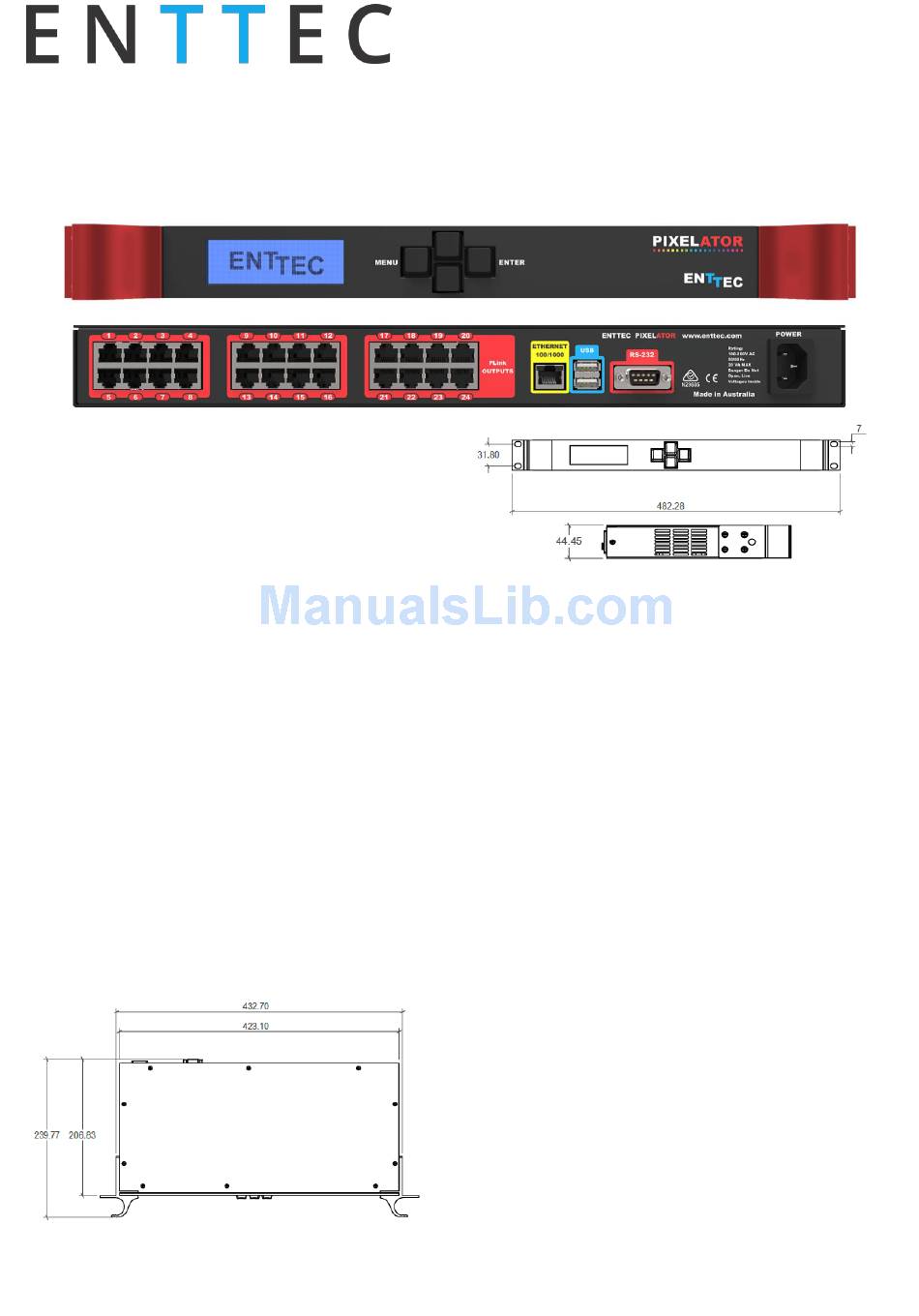

Physical Dimensions
US Patent Patenting
PIXELATOR
( P N 7 0 0 6 0 )
Note:
▪ All dimensions are in millimetres unless specified otherwise
Features
•
•
•
•
•
•
•
•
•
•
ID: 2114
24 Pixel Link (RJ-45) ports (data output only)
Superfast Gigabit ethernet connection – delivers
best performance.
Dual core CPU, with a clock speed 2GHz – provides
efficient and reliable output
1GB DDR3 RAM – allows best utilization of the
system.
Pixel Protocol is configurable for each Pixel Link
port
Pixel Grouping is configurable for each Pixel Link
port (up-to 340)
Pixel Ordering is configurable for each Pixel Link
port (RGB and RGBW modes)
Each Pixel Link can be assigned up to 2 Ethernet
Universes. (allows 340 individual LEDs to be
assigned from each port in RGB modes)
Each port outputs at least 40 frames per second
Supports following DMX over Ethernet protocols:
ESP
◦
Art-Net
◦
StreamingACN (sACN)
◦
KiNet
◦
User Manual
50657 (PIXELATOR)
www.enttec.com
1
