Summary of Contents for Enttec S-PLAY NANO

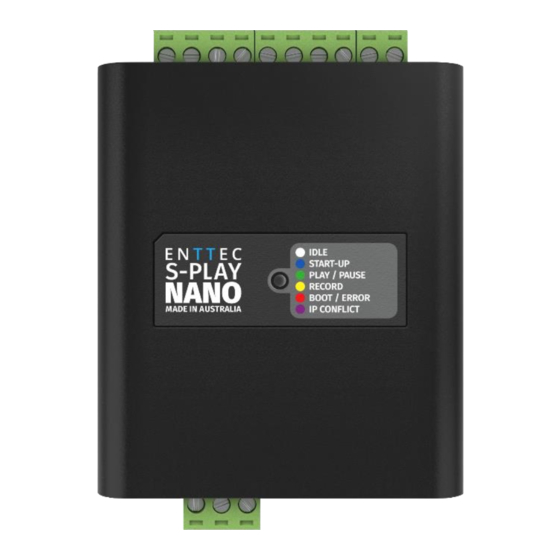

- Page 1 S-PLAY NANO 70095 User Manual Create, Record, Edit and Play 1 DMX Universe light shows integrating with 3 party hardware and systems in a compact 4 DIN module width form factor.
-
Page 2: Table Of Contents
Connection to DMX Neon Flex ....................................6 Connection to DMX XLR Connector ..................................7 Connection to Relay........................................7 Connection to Digital Inputs ....................................8 Using Motion Sensors with the S-PLAY NANO ............................... 8 Functional Features ........................................... 9 Hardware Features........................................... 10 Overview ............................................10 S-PLAY NANO Connectivity ..................................... - Page 3 S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Search and Filter Bar ......................................23 Cues, Triggers & Events Library ..................................23 Playlist Playback Configuration ..................................24 Playlist Settings ........................................25 Event and Trigger Tracks....................................26 Storage .............................................. 27 Backup ............................................
-
Page 4: Safety
ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance. -
Page 5: Protection From Injury During Installation
Keep the S-PLAY NANO and its accessories in its protective packaging until final installation. Note the serial number of each S-PLAY NANO and add it to your layout plan for future reference when servicing. -
Page 6: Application Diagram
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Application Diagram Relay Digital Input Activate external Playlist Triggers equipment for Events Pump Curtain Winch Dual Direction Control through Ethernet DMX Control UDP, OSC DMX Lights PC software Lighting... -
Page 7: Connection To Dmx Xlr Connector
If your application requires main power switching or high current applications, ENTTEC recommends the use of a DMX switch pack controlled by the S-PLAY NANO’s DMX output or wire the S-PLAY NANO’s relay outputs to connect to the primary coil of a DIN mount high powered relay or contactor. -
Page 8: Connection To Digital Inputs
CONNECTION POWER 1. Connect the sensor output to one of the Digital Input ports (IN1 to IN4) in S-PLAY NANO. 2. Connect 0V (GND) from sensor to GND of Digital Input connectors in S-PLAY NANO. 3. Go to web interface: Go to Triggers. -
Page 9: Functional Features
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Functional Features Overview Supports DMX Output and live recording. Max output refresh rate 40 FPS. Record Cues or Create Effects Record/edit up to 4 Static, Dynamic or Effect Cues. -
Page 10: Hardware Features
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Hardware Features Overview 4-DIN-module width unit form factor. One bi-directional 3-Pin Phoenix DMX Port. 12 to 24v DC Input 100 Mbps Ethernet RJ45 Port with built-in Link and Activity LED Indicator. -
Page 11: Led Indicator
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. LED Indicator The LED status indicator is used to determine the S-PLAY NANO’s current state: LED Colour S-PLAY NANO Status White Idle Blue Device starting up Green Play/Pause Yellow... -
Page 12: Resume Factory Default
IP to avoid IP conflicts. When the S-PLAY NANO is set to a static IP, the default gateway MUST be the same for both the S-PLAY NANO and your computer for EMU to discover the S-PLAY NANO. -
Page 13: Web Interface
3. Open EMU, access the Settings in the top right corner, and go to the Output tab. Here, you can 'Rescan for Devices' and wait until EMU finds the S-PLAY NANO as well as any other supported ENTTEC device on the network. -
Page 14: Cue
▪ Editing it in the Cue Library directly overwrites the full universe values received and extends the length of the cue if necessary. ▪ Once a cue is selected to be edited, the S-PLAY NANO will internally trigger the Stop All command to stop all playback on the S-PLAY NANO to stop overlapping. -
Page 15: Static Cue
2) Use the Colour Picker from the colour palette and press 'Set DMX' to apply and populate the selected channels. 3) Capture a DMX frame from the selected DMX source connected to the S-play NANO by pressing the ‘DMX Snapshot’. It will automatically populate the recorded DMX values to the selected channels. -
Page 16: Dynamic Cue
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Dynamic Cue Dynamic Cues are recordings that allow DMX streams to be recorded and integrated into a show. Follow the instructions below to create a dynamic cue at your preferred methods. -
Page 17: Effect Cue
Each colour point can be dragged to a position to create preferable effect. A maximum of 8 colours can be created for a Effect Cue in S-PLAY NANO. In order to create for smooth loops, ensure the beginning and end colour of the Effect are the same. The exact range of fixtures that the color point in the gradient graphic will affect can be counted based on Number of Fixtures and Position (%). -
Page 18: Events
Editing, testing and deletion of Events. Use events to allow integration between S-PLAY NANO and other devices by sending commands over UDP and OSC protocols and interacting with the relay. A UDP Event will send the command defined below ... -
Page 19: Triggers
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Triggers . The Triggers page allows: Create up to 8 custom Triggers, ready to be embedded in playlists. Set receiving triggers from: digital input, UDP and OSC. ... -
Page 20: Digital Input
Digital Input Use digital inputs with sensors, pressure pads, and wall switches to create an interactive installation. S-PLAY NANO has 4 digital input ports to activate triggers. Idle position for digitals input is high. A Trigger is registered when the circuit is completed ... -
Page 21: Playlists
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Playlists The Playlists page is where playlists can be created by combining Cues, Events and Triggers using the timeline editor which allows: Create up to 4 playlists and play simultaneously. -
Page 22: Playlists
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Playlists Page Layout The playlists page is comprised of 9 key elements: A. Control all playlists playback with master level B. Global playlist control C. Search and filter bar for cues, triggers & events D. -
Page 23: Created Playlists
Control - Play: Play the selected playlist, also the Playlist is loaded into the timeline and media track section. Control - Pause: Pause the selected playlist. By pausing a playlist, S-PLAY NANO holds the las DMX value. Control - Stop: Stops the selected playlist. By stopping a playlist, S-PLAY NANO stops outputting any data (set DMX value to 0). -
Page 24: Playlist Playback Configuration
Hide from Home: Option to show or hide this playlist in Home Page. Save: Saves any change on the Playlist. S-PLAY NANO will ask to save any change before playing a Playlist. USER MANUAL... -
Page 25: Playlist Settings
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Playlist Settings FADE IN TIME FADE OUT TIME END TIME ZOOM CONTROL START TIME CUE NAME INTENSITY CUE TRACK FADER HANDLE TIME INDICATOR TIMELINE NAVIGATION Cue Fader Configuration: This configures start/end time, fade in/out time for a specific cue added into the cue track. -
Page 26: Event And Trigger Tracks
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Event and Trigger Tracks These tracks are specifically designated for events and triggers. The vertical line indicates the precise timing at which the playlist will either pause until the trigger becomes active or execute the event. When triggers are used, the playlist will pause and maintain the last output value. -
Page 27: Storage
Restore from a backup file in the computer. (Note: restoring a backup will erase the current shows on your S-PLAY NANO – always backup your current configuration before restoring a backup). Backup The S-PLAY NANO can produce a backup package that includes all: Cues ... -
Page 28: Restore
S-PLAY NANO (70095) Visit the ENTTEC website for the latest version. Restore Use the created .bak file to restore cues, playlists and output settings. Navigate to the Storage Menu in the web interface, then go to Restore section. Select internal storage. -
Page 29: Settings
Fast navigation between each option tab can be made using the navigation menu on the left-hand side of the page. The settings page allows the user to: Set the S-PLAY NANO device name to be identical on the network. Configure DMX output refresh rate. -
Page 30: Device Info
Network Settings allow a DHCP or Manual IP address to be defined. After effecting the IP changes, the S-PLAY NANO will reboot in order to initiate all services. UDP and OSC input ports for use with S-PLAY NANO Triggers can also be defined in the Network Settings: Default Network Settings: DHCP: Enabled Fall Back/Static IP: 192.168.0.10... -
Page 31: Playback Configuration
On the boot page, click the ‘Browse’ button to locate an S-PLAY NANO firmware from your computer. The firmware files are with a .bin extension. Next, click on the ‘Update Firmware’ button to begin the update. -
Page 32: Factory Reset
Monitor DMX current, login to users account and switch languages between English and Chinese. Monitor DMX Current S-PLAY NANO allows the user to monitor DMX current for all universes at real time. By clicking , an overview of each universe current setting will appear at the bottom page. -
Page 33: Lock Feature
"Home", "Cue Library" and/or "Playlist Page". This is to avoid having conflicting commands that can jeopardise any part of the recording process. To unlock the S-PLAY NANO, simply click on the padlock icon on the top right corner of the web interface. Default Login and Password... -
Page 34: Servicing, Inspection & Maintenance
Do not spray device or accessories. The device is an IP20 product. To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth. -
Page 35: Package Contents
S-PLAY NANO (70095) Din Clip x 2pcs + screws x 4pcs ReadMe Card Ordering Information For further support and to browse ENTTEC’s range of products visit the ENTTEC website. Item Part No. S-PLAY NANO 70095 S-PLAY MINI 70093 Due to constant innovation, information within this document is subject to change.
