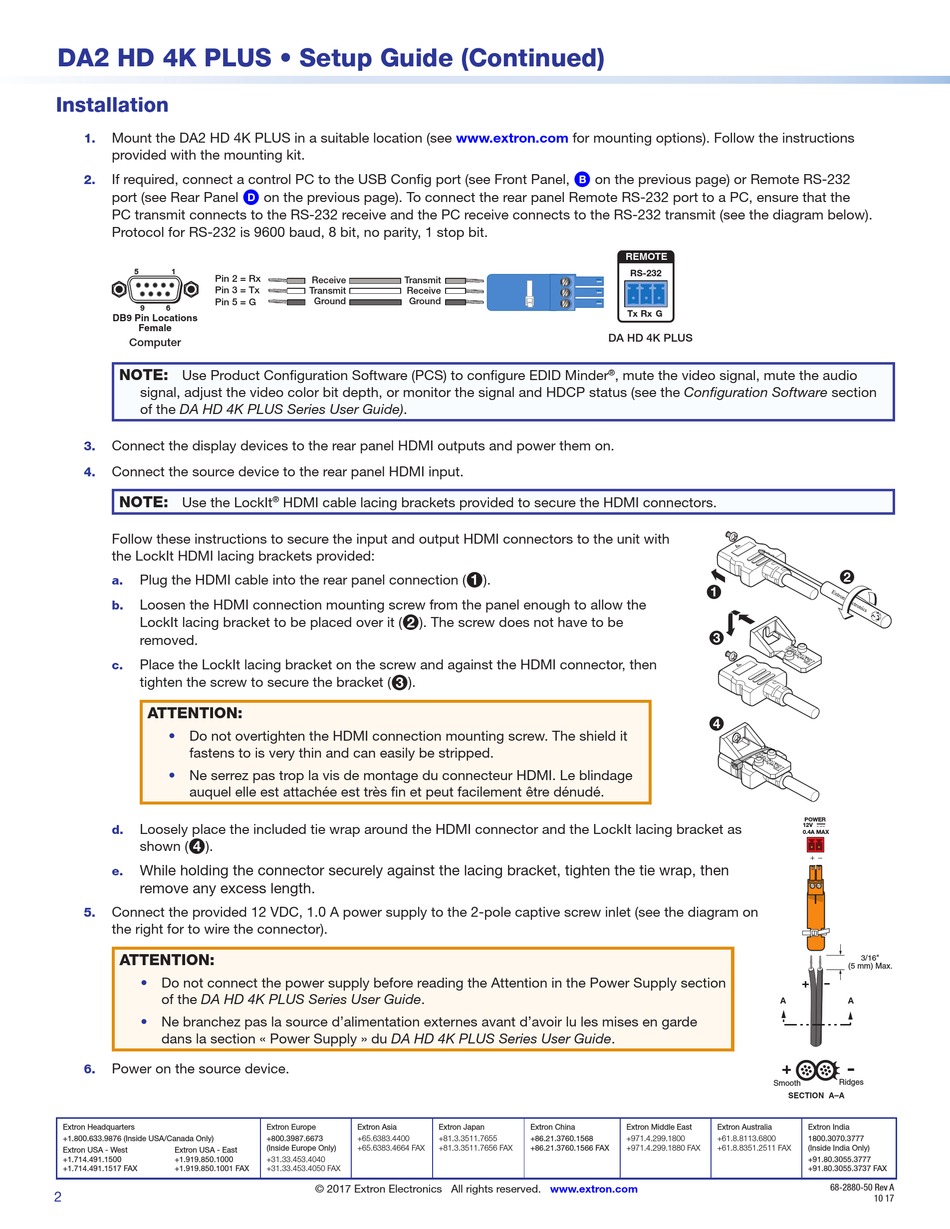

Installation

Mount the DA2 HD 4K PLUS in a suitable location (see
1.
provided with the mounting kit.
If required, connect a control PC to the USB Config port (see Front Panel,
2.
port (see Rear Panel
PC transmit connects to the RS-232 receive and the PC receive connects to the RS-232 transmit (see the diagram below).
Protocol for RS-232 is 9600 baud, 8 bit, no parity, 1 stop bit.
5 1
Pin 2 = Rx
Pin 3 = Tx
Pin 5 = G
9 6
DB9 Pin Locations
Female
Computer
NOTE:
Use Product Configuration Software (PCS) to configure EDID Minder
signal, adjust the video color bit depth, or monitor the signal and HDCP status (see the Configuration Software section
of the DA HD 4K PLUS Series User Guide).
Connect the display devices to the rear panel HDMI outputs and power them on.
3.
Connect the source device to the rear panel HDMI input.
4.
NOTE:
Use the LockIt
Follow these instructions to secure the input and output HDMI connectors to the unit with
the LockIt HDMI lacing brackets provided:
Plug the HDMI cable into the rear panel connection (
a.
Loosen the HDMI connection mounting screw from the panel enough to allow the
b.
LockIt lacing bracket to be placed over it (
removed.
Place the LockIt lacing bracket on the screw and against the HDMI connector, then
c.
tighten the screw to secure the bracket (
ATTENTION:
• Do not overtighten the HDMI connection mounting screw. The shield it
fastens to is very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage
auquel elle est attachée est très fin et peut facilement être dénudé.
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as
d.
shown ( 4 ).
While holding the connector securely against the lacing bracket, tighten the tie wrap, then
e.
remove any excess length.
Connect the provided 12 VDC, 1.0 A power supply to the 2-pole captive screw inlet (see the diagram on
5.
the right for to wire the connector).
ATTENTION:
• Do not connect the power supply before reading the Attention in the Power Supply section
of the DA HD 4K PLUS Series User Guide.
• Ne branchez pas la source d'alimentation externes avant d'avoir lu les mises en garde
dans la section « Power Supply » du DA HD 4K PLUS Series User Guide.
Power on the source device.
6.
