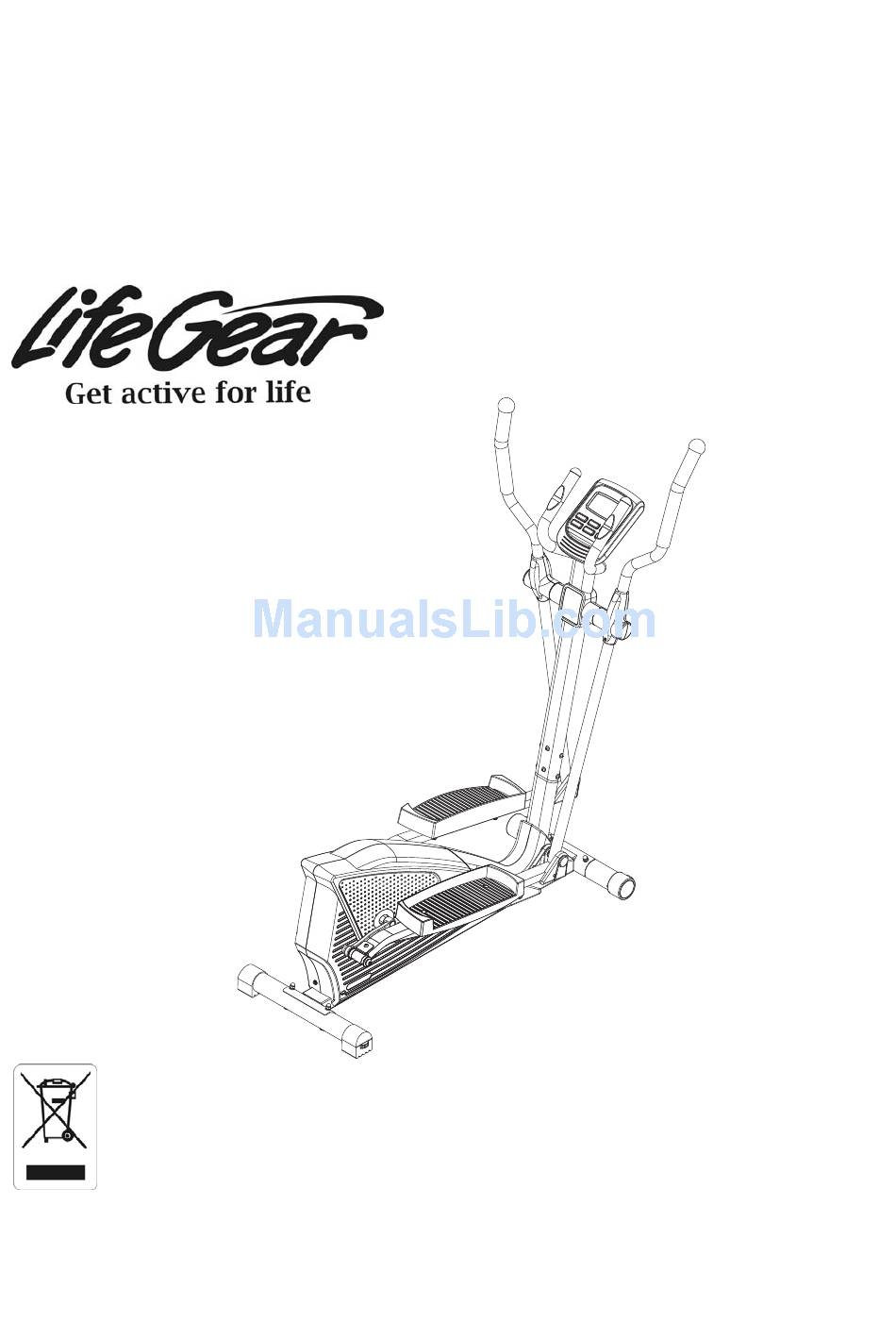

CLASSIC PRO
Elliptical Cross Trainer
ITEM NO.: 93795
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change without
prior notice.
2017, Aug.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLASSIC PRO 93795 and is the answer not in the manual?

Questions and answers

Related Manuals for Life Gear CLASSIC PRO 93795

Summary of Contents for Life Gear CLASSIC PRO 93795

  • Page 1 CLASSIC PRO Elliptical Cross Trainer ITEM NO.: 93795 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST ------------------------------------------------------------------------------- 4 HARDWARE AND TOOLS PACK ---------------------------------------------------- 6 FRONT & REAR DECORATIVE COVERS PACK ------------------------------- 7 HANDRAIL ARM COVERS PACK --------------------------------------------------- 7 EXPLODED VIEW ----------------------------------------------------------------------- 8 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9 HOW TO MOVE THE ELLIPTICAL TRAINER ------------------------------------ 27 OPERATING THE COMPUTER ------------------------------------------------------ 28 ADJUSTMENT ---------------------------------------------------------------------------- 38...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing free of charge, any parts which may prove to be defective under normal home use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following important safety instructions when using this equipment. Read all instructions before using this equipment. Read all instructions and follow it carefully before using this equipment. Make sure the equipment is properly assembled and tightened before use.

  • Page 5: Parts List

    PARTS LIST Description Qty No. Description 001 Carriage Bolt M8x75 4 024 Handlebar Hexagon Socket Pan Head Cap 002 Rear Stabilizer Ø60 1 025 Bolt M8x25 003 Rear Stabilizer End Cap Ø60 2 026 Handlebar Foam Grip 004 Curve Washer Ø8.5xØ18x1.5t 12 027 Hand Pulse Sensor 005 Spring Washer Ø8.5xØ14x2.0t 8 028 Handlebar End Cap...
  • Page 6 PARTS LIST Description Qty No. Description Cross Recessed Pan Head Bolt 044L Left Foot Pedal 1 064 M5x12 044R Right Foot Pedal 1 065 Belt Pulley Shaft Hexagon Socket Pan Head Cap 2 066 Belt Pulley Ø240 Bolt M8x50 046L Left Foot Bar 1 067L Left Crank 046R Right Foot Bar 1 067R Right Crank...

  • Page 7: Hardware And Tools Pack

    HARDWARE AND TOOLS PACK (47L) Left Bolt 1 PC (48) Wave Washer 1 PC (51) Spring Washer 1 PC (52L) Left Nylon Nut 1 PC (47R) Right Bolt 1 PC (48) Wave Washer 1 PC (51) Spring Washer 1 PC (52R) Right Nylon Nut 1 PC (6) Cap Nut...

  • Page 8: Front & Rear Decorative Covers Pack

    S6 Allen Wrench with S8 Allen Wrench Phillips Screwdriver 1 PC 1 PC Multi Hex Tool Multi Hex Too 1 PC 1 PC FRONT & REAR DECORATIVE COVERS PACK (16) Cross Recessed Pan Head Tapping Screw 2 PCS (15A) Front Decorative Cover for Front Post 1 PC (15B) Rear Decorative Cover for Front Post 1 PC...

  • Page 9: Exploded View

    EXPLODED VIEW 4 33 10 5 4 33 83 84...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Position the Front Stabilizer (7) in front of the Main Frame (69) and align bolt holes. Attach the Front Stabilizer (7) onto the front curve of the Main Frame (69) with two Carriage Bolts (1), two Curve Washers (4), two Spring Washers (5), and two Cap Nuts (6). Tighten cap nuts with the Multi Hex Tool provided.
  • Page 11 STEP 2 Position the Rear Stabilizer (2) behind the Main Frame (69) and align bolt holes. Attach the Rear Stabilizer (2) onto the rear curve of the Main Frame (69) with two Carriage Bolts (1), two Curve Washers (4), two Spring Washers (5), and two Cap Nuts (6). Tighten cap nuts with the Multi Hex Tool provided.
  • Page 12 STEP 3 Remove two Washers (10), four Curve Washers (4), and six Hexagon Socket Pan Head Cap Bolts (9) from the Main Frame (69). Remove bolts with the S6 Allen Wrench with Phillips Screwdriver provided. STEP 4 It is recommended to have a second person assist with this step. One person should hold the Front Post (11) in place while the other person to connect the wires.
  • Page 13 STEP 5 Insert the Front Post (11) onto the tube of the Main Frame (69) and secure with two Washers (10), four Curve Washers (4), and six Hexagon Socket Pan Head Cap Bolts (9) that were removed. Tighten bolts with the S6 Allen Wrench with Phillips Screwdriver provided.
  • Page 14 STEP 6 Attach the Front Decorative Cover for Front Post (15A) and Rear Decorative Cover for Front Post (15B) onto the Front Post (11) with two Cross Recessed Pan Head Tapping Screws (16). Tighten screws with the S6 Allen Wrench with Phillips Screwdriver provided. Front &...
  • Page 15 STEP 7 Remove two Hexagon Bolts (43), two Washers (41), and two Nylon Nuts (42) from the Left Foot Bar (46L). Remove bolts and nylon nuts with two Multi Hex Tools provided. Use the same procedure to remove the bolts, washers, and nylon nuts on the Right Foot Bar (46R).
  • Page 16 STEP 8 Attach the Left Foot Pedal (44L) onto the Left Foot Bar (46L) with two Hexagon Bolts (43), two Washers (41), and two Nylon Nuts (42) that were removed from the Left Foot Bar (46L). Tighten the nylon nuts with the Multi Hex Tool provided. Use the same procedure to attach the Right Foot Pedal (44R) onto the Right Foot Bar (46R).
  • Page 17 STEP 9 Remove two Screws (37) from the Left Foot Bar (46L). Remove screws with the S6 Allen Wrench with Phillips Screwdriver provided. Attach the Front Left Foot Bar Cover (38L) and Front Right Foot Bar Cover (38R) onto the front end of the Left Foot Bar (46L) with two Screws (37) that were removed from the Left Foot Bar (46L).
  • Page 18 STEP 10 Remove one Hexagon Socket Pan Head Cap Bolt (21), one Spring Washer (5), one Big Washer (20), and one Washer (19) from the right horizontal axis of the Front Post (11). Remove bolt with the S6 Allen Wrench with Phillips Screwdriver provided. Use the same procedure to remove bolt and washers from the left horizontal axis of the Front Post (11).
  • Page 19 STEP 12 Attach the Right Handrail Arm (36R) onto the right horizontal axis of the Front Post (11) with one Hexagon Socket Pan Head Cap Bolt (21), one Spring Washer (5), one Big Washer (20), and one Washer (19) that were removed from the right horizontal axis of the Front Post (11). Tighten bolt with the S6 Allen Wrench with Phillips Screwdriver provided.
  • Page 20 STEP 13 Attach the left Foot Bar Bracket (50) to the Left Crank (67L) with one Left Bolt (47L), one Wave Washer (48), one Spring Washer (51), and one Left Nylon Nut (52L). Tighten bolt and nylon nut with the S8 Allen Wrench and Multi Hex Tool provided. Install one Round Cap (53) onto the Left Nylon Nut (52L).
  • Page 21 STEP 14 Attach the right Foot Bar Bracket (50) to the Right Crank (67R) with one Right Bolt (47R), one Wave Washer (48), one Spring Washer (51), and one Right Nylon Nut (52R). Tighten bolt and nylon nut with the S8 Allen Wrench and Multi Hex Tool provided. Install one Round Cap (53) onto the Right Nylon Nut (52R).
  • Page 22 10 5 STEP 15 Remove two Hexagon Socket Pan Head Cap Bolts (25), two Spring Washers (5), and two Washers (10) from the Front Post (11). Remove bolts with the S6 Allen Wrench with Phillips Screwdriver provided. 10 5 25 10 5 25 STEP 16 Insert the Hand Pulse Sensor Wires (76) from the Handlebar (24) into the hole on the Front...
  • Page 23 STEP 17 Remove two Hexagon Bolts (32), two Curve Washers (4), and two Hexagon Nylon Nuts (33) from Left Handrail (31L). Remove bolts and nylon nuts with two Multi Hex Tools provided. Use the same procedure to remove the bolts, curve washers, and nylon nuts on the Right Handrail (31R).
  • Page 24 4 33 STEP 19 Secure both Left and Right Handrails (31L, 31R) into the top ends of both Left and Right Handrail Arms (36L, 36R) with four Hexagon Bolts (32), four Curve Washers (4), and four Hexagon Nylon Nuts (33) that were removed from Left and Right Handrails (31L, 31R). Tighten bolts and nylon nuts with two Multi Hex Tools provided.
  • Page 25 STEP 20 Attach the Handrail Arm Cover-A (35A) and Handrail Arm Cover-B (35B) onto the Left Handrail Arm (36L) with four Cross Recessed Pan Head Tapping Screws (16). Tighten screws with the S6 Allen Wrench with Phillips Screwdriver provided. Attach the other Handrail Arm Cover-A (35A) and Handrail Arm Cover-B (35B) onto the Right Handrail Arm (36R) with four Cross Recessed Pan Head Tapping Screws (16).
  • Page 26 STEP 21 Remove four Cross Recessed Pan Head Bolts (23) from the Computer (22). Remove bolts with the S6 Allen Wrench with Phillips Screwdriver provided. STEP 22 It is recommended to have a second person assist with this step. One person should hold the Computer (22) in place while the other person to connect the wires.
  • Page 27 STEP 23 Plug the wire of the AC Adapter (14) into the receptacle of the Power Supply Wire (73), which is located on the rear of the Left Cover (55L) and then connect the AC Adapter (14) to the electrical wall outlet.

  • Page 28: How To Move The Elliptical Trainer

    HOW TO MOVE THE ELLIPTICAL TRAINER Left & Right Handrails Transport Wheel This elliptical trainer has a pair of Transport Wheels built into the front stabilizer and can be carefully tilted onto its Transport Wheels for easy moving and storage. Stand in front of the elliptical trainer, hold both Left and Right Handrails, and place one foot against one of the transport wheels.

  • Page 29: Operating The Computer

    OPERATING THE COMPUTER AUTO ON /OFF: The display will turn off automatically after 4 minutes of inactivity. Press any button to turn on the display. BUTTON FUNCTIONS: START/STOP 1. Quick Start function: Allows you to start the computer without selecting a program. Manual workout only and time automatically begins to count up from zero.
  • Page 30 PULSE RECOVERY Press the PULSE RECOVERY button to activate heart rate recovery function. COMPUTER FUNCTIONS: START: Indicates the program selected has started. STOP: Indicates the program selected has stopped. PROGRAM: Indicates the programs selected. LEVEL: Indicates the level of resistance selected. GENDER: Indicates the gender (Male or Female) selected.
  • Page 31 1) Grip the hand pulse sensors with both hands during exercise. 2) Press the PULSE RECOVERY button. 3) Grip the hand pulse sensors with both hands. 4) The time will countdown from 60 to 0 seconds. 5) Your personal fitness Pulse Recovery level will appear on the display. When countdown is complete, the Pulse Recovery grade will be displayed.
  • Page 32 press the START/STOP button again to continue the workout with other unfinished parameters. P1: MANUAL PROGRAM 2-13 (PRE-SET PROGRAMS MODE): There are 12 PRE-SET PROGRAMS (PROGRAM 2-13) that offer you a variety of workout options. To select a program, use the UP or DOWN button to select one of the pre-set programs.
  • Page 33 PROGRAM 14-17 (U1-U4 CUSTOM PROGRAMS MODE): Press the UP or DOWN button to select the one of the CUSTOM USER PROGRAMS mode. There are 4 CUSTOM USER PROGRAMS (U1, U2, U3, and U4) that can be offer four different people to create his/her own training profile for the feature workout. Press the ENTER button to enter into the CUSTOM USER PROGRAM.
  • Page 34 PROGRAM 18-21 (HEART RATE CONTROL) (55%, 65%, 75%, AND 85% OF YOUR MAXIMUM HEART RATE PROGRAMS MODE): Press the UP or DOWN button to select the one of the H.R.C. (HEART RATE CONTROL) PROGRAMS mode and then press the ENTER button to enter into the H.R.C. (HEART RATE CONTROL) PROGRAM.

  • Page 35: Program Mode

    P18: 55% HRC P19: 65% HRC P20: 75% HRC P21: 85% HRC PROGRAM 22 TARGET H.R.C. (TARGET HEART RATE CONTROL PROGRAM MODE): Press the UP or DOWN button to select the PROGRAM 22 (TARGET HEART RATE CONTROL) PROGRAM mode and then press the ENTER button to enter into the TARGET H.R.C.
  • Page 36 level. If your current heart rate is lower the target heart rate, the computer will automatically increases the resistance level. During you exercise, when a goal is reached, that display will flash, signaling that your workout is complete. You may press the START/STOP button again to continue the workout with other unfinished parameters.
  • Page 37 Type 2: 27 ≥ Body fat value ≥ 20 Type 3: body fat value <20 The display shows the result in your body fat percentage, BMI (Body Mass Index) and BMR (Basal Metabolic Rate). 2. Press the UP or DOWN button to select the body fat value measurement program P24. 3.
  • Page 38 ERROR MESSAGES E1 (Error 1): During operation: If the computer receives no signal from the motor more than 4 seconds, the display shows E1. In the "Power On" state: If the computer has no signal for more than 4 seconds, the motor stops, resets the counter to zero, and the display shows E1.

  • Page 39: Adjustment

    ADJUSTMENT Adjustable Leveler Adjusting the Adjustable Leveler Turn the adjustable leveler on the rear stabilizer end cap as needed to level the elliptical trainer. MAINTENANCE Cleaning The elliptical trainer can be cleaned with a soft clean damp cloth. Do not use abrasives or solvents on plastic parts.

  • Page 40: Troubleshooting

    TROUBLESHOOTING PROBLEM: The elliptical trainer wobbles when in use. SOLUTION: Turn the adjustable leveler on the rear stabilizer end cap as needed to level the elliptical trainer. PROBLEM: There is no display on the computer console. SOLUTION: Make sure the AC Adapter is plugged into the power jack of the elliptical trainer and the electrical wall outlet.

  • Page 41: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 42 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
