EtherNet/IP Module
Installation Guide
Each connection adds a delay to the communication with the next device. The maximum number of devices in a line network is
32. Exceeding this number may reduce the reliability of the network.

9.3 Ring Topology

In a ring topology network, the controller connects to the 1
connects to another device, which in turn connects to another device until all devices are connected. The final device connects back
to the switch.
The device supports beacon-based ring node configuration.

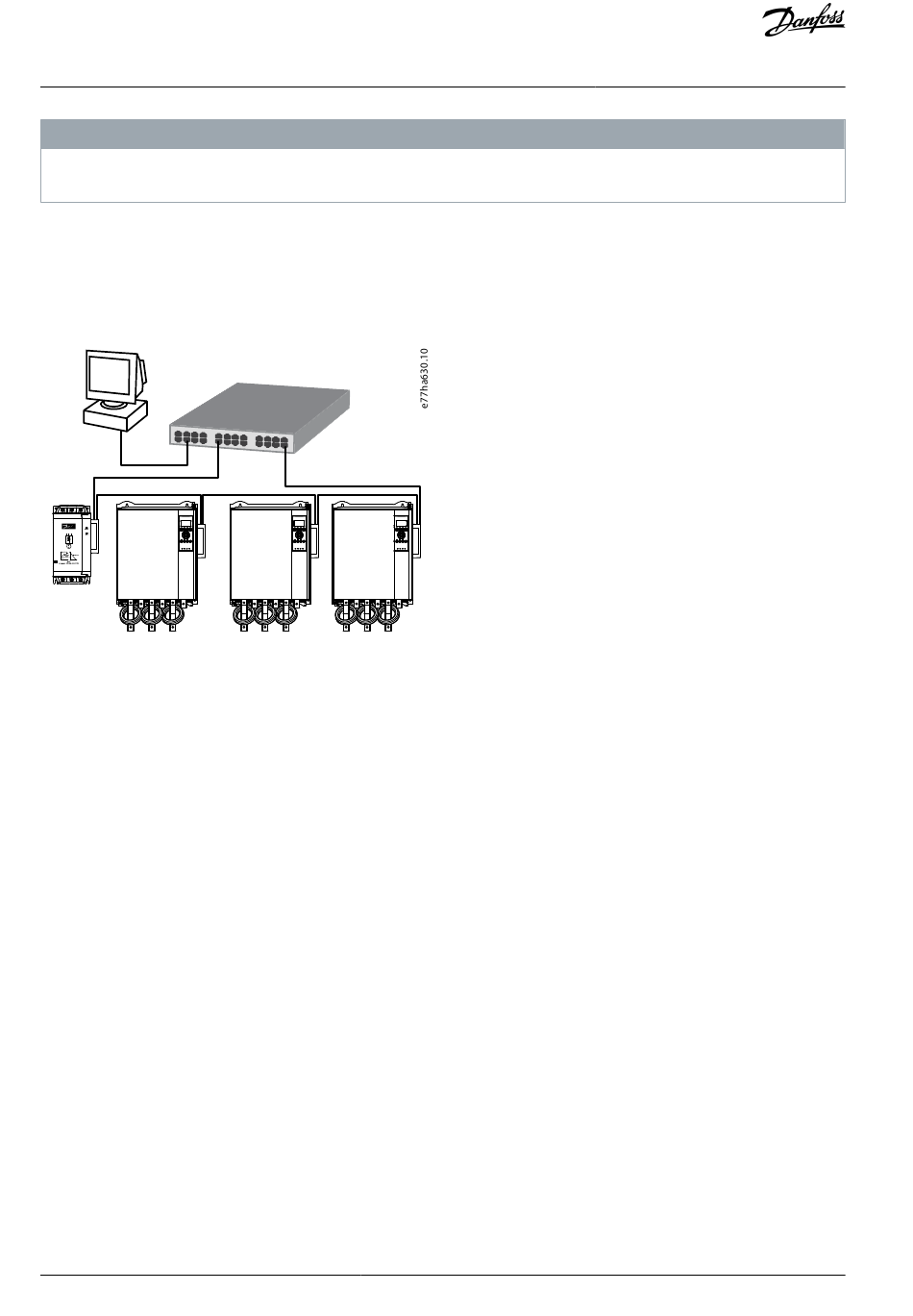

Illustration 6: Example of Ring Topology

9.4 Combined Topologies

A single network can include both star and line components.
32 | Danfoss A/S © 2022.10
N O T I C E
st
module via a network switch. The 2
Network Design
nd
Ethernet port of the module
AN427641276310en-000101 / 175R1187
