USB board

Description
USB board
USB board cable
Before removing the USB board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the any smart cards and memory cards.
5. Remove the base enclosure (see
6. Remove the battery (see
7. Remove the hard drive (see
8. Remove the SSD (see
9. Remove the right fan (see
Remove the USB board:

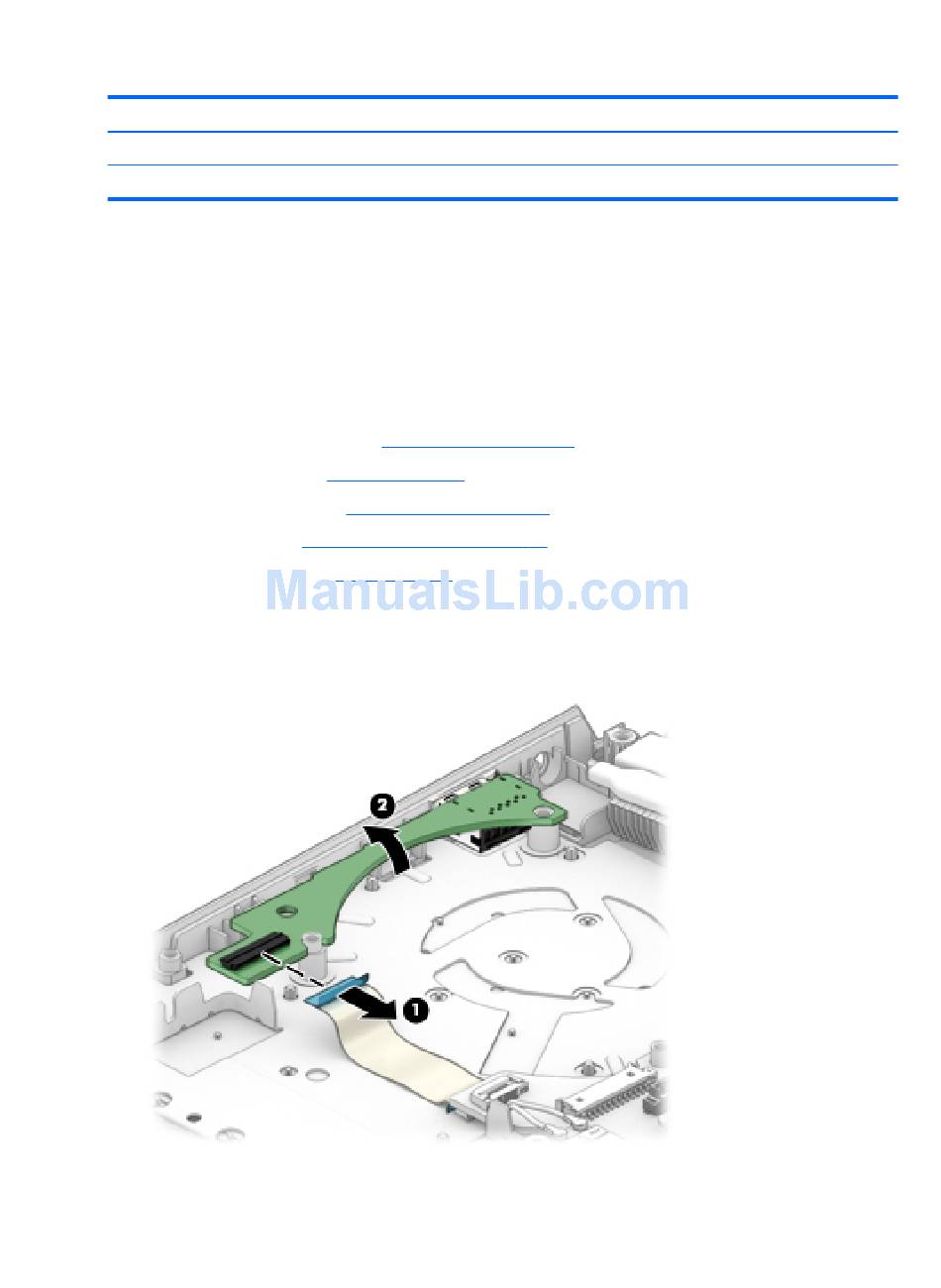

1. Disconnect the USB board cable (1) from the connector on the system board.
2. Remove the USB board from the computer (2).
Reverse this procedure to install the USB board.
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
Base enclosure on page
Battery on page 46).
Hard drive (HDD) on page
Solid-state drive (SSD) on page
Fans on page 49).
35).
38).
40).
Spare part number
L24349–001
L24350–001
