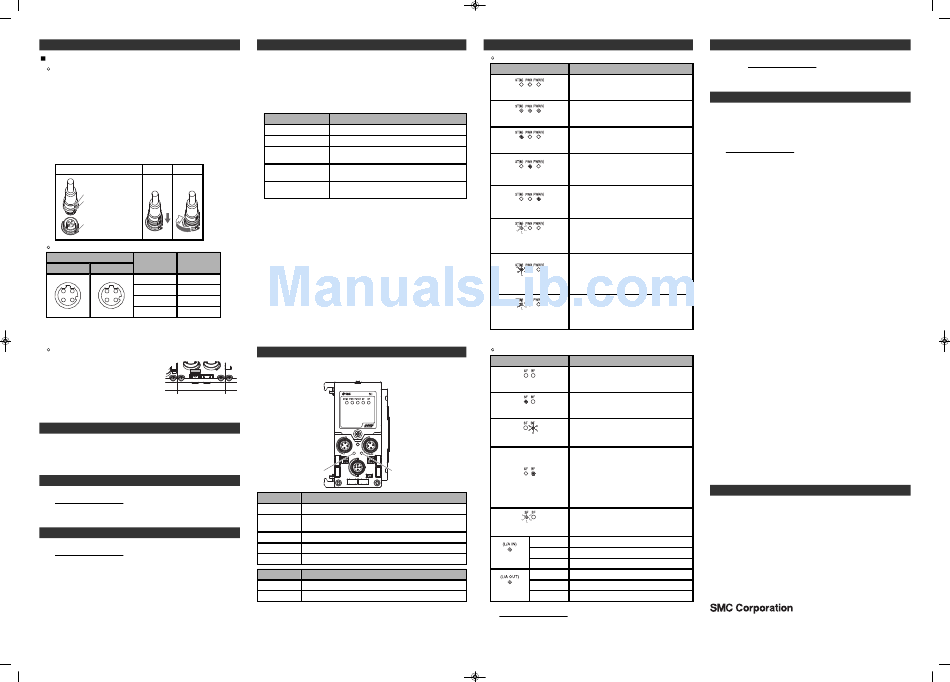

4 Installation (continued)
Wiring
Connect the M12 connector cable.
The M12 SPEEDCON connector connection method is explained
below.
(1)Align mark B on the metal bracket of the cable connector
(plug/socket) with mark A.
(2)Align with mark C on the unit and insert the connector vertically.
If they are not aligned, the connector cannot be connected
correctly.
(3)When mark B has been turned 180 degrees (1/2 turn), wiring is
complete. Confirm that the connection is not loose. If turned too
far, it will become hard to remove the connector.
(1) (2) (3)
Mark A
Mark B
Mark C on the unit
Connector pin assignment
Configuration
Pin number Signal name
BUS IN BUS OUT
1 TD+
1 2 1 2
2 RD+
3 TD-
4 3 4 3
4 RD-
Mounting the marker
The signal name of the input or output
devices and unit address can be written
to the marker, and can be installed to
each unit.
Mount the marker (EX600-ZT1) into the
marker groove as required.
5 Setting
This product has no switches for setting, therefore the display cover
should not be opened.
6 How to order
Refer to the operation manual on the SMC website
(URL http://www.smcworld.com).
7 Outline Dimensions (mm)
Refer to the operation manual on the SMC website
(URL http://www.smcworld.com).
8 Maintenance
Turn OFF the power supply, stop the supplied air, exhaust the residual
pressure and verify the release of air before performing maintenance.
Cleaning method
Use a soft cloth to remove stains.
For heavy stains, use a cloth soaked with diluted neutral detergent and
fully squeezed, then wipe up the stains again with a dry cloth.
Do not use solvents such as benzene, thinner etc. to clean each unit.
Inspection item Content of inspection
Connector/wiring If the connector is loose, tighten it correctly.
Seal cap If the seal cap is loose, tighten it correctly.
Screws for mounting If the screws are loose, tighten according to the
and installation specified torque.
If the cable is damaged or has any visual
Connection cables
abnormality, replace the cable.
Check that the supply voltage is within
Supply voltage
specification (24 VDC ±10%).
How to reset the product for power cut or forcible de-energizing
Supply power to the product.
The output status from just before the power was disconnected will not be
maintained when the power supply is recovered.
Start operation of the product after confirming the safety of the entire
system.
9 LED Display
The status display LED displays the power supply and communication
status.
L/A IN L/A OUT
Display Content
ST(M) Displays the diagnostic status of the unit.
Displays the status of the power supply voltage for control
PWR
and input.
PWR(V) Displays the status of the power supply voltage for outputs.
SF Displays the system status.
BF Displays the communication status.
Display Content
L/A IN Displays the communication status of the BUS IN side.
L/A OUT Displays the communication status of the BUS OUT side.
9 LED Display (continued)
SI unit common status
LED display Content
The power supply for control and input is
OFF.
OFF.
The unit is in normal operation.
Green LEDs are ON.
An internal memory error has occurred in
the SI unit.
Red ST(M) LED is ON.
The power supply voltage for control and
input is abnormal.
(Control and input power supply voltage
Red PWR LED is ON.
monitoring parameter is valid)
The power supply voltage for outputs is
abnormal.
(Output power supply voltage monitoring
Red PWR(V) LED is ON.
parameter is valid)
A unit other than the SI unit has been
detected.
Green ST(M) LED is
flashing.
Either of the following conditions:
•The valve ON/OFF counter has exceeded
the set value.
•The valve is short circuited or
Red ST(M) LED is flashing.
disconnected.
Connection error between units has
Red/Green ST(M) LED is occurred.
flashing alternately.
PROFINET status
LED display Content
The communication with the PLC has been
established normally, or the power supply
OFF.
for control and input is OFF.
The communication with the PLC has been
established, but a diagnostic error has
Red SF LED is ON. occurred.
The configuration data of the PLC and
EX600 are not consistent.
Red BF LED is flashing.
Either of the following conditions:
•Power supply for the PLC is OFF.
•The cable between the PLC and SI unit is
not connected.
•The PLC or the SI unit is faulty.
Red BF LED is ON.
•The configuration data of the PLC and the
Device Name of the SI unit are not
consistent.
The SI unit received a Node flashing test
command.
Green SF LED is flashing.
OFF BUS IN side : No Link, No Activity
ON BUS IN side : Link, No Activity
(Green)
Flashing BUS IN side : Link, Activity
OFF BUS OUT side: No Link, No Activity
ON BUS OUT side: Link, No Activity
(Green)
Flashing BUS OUT side: Link, Activity
Refer to the operation manual on the SMC website
(URL http://www.smcworld.com).
10 Troubleshooting
Refer to the LED Display. Refer to the operation manual on the SMC
website (URL http://www.smcworld.com).
11 Commissioning
•Parameter Setting
•Hardware Configuration
•I/O Map
•Diagnostic
Refer to the operation manual on the SMC website
(URL http://www.smcworld.com).
12 Contacts
AUSTRIA (43) 2262 62280-0 LATVIA (371) 781 77 00
BELGIUM (32) 3 355 1464 LITHUANIA (370) 5 264 8126
BULGARIA (359) 2 974 4492 NETHERLANDS (31) 20 531 8888
CZECH REP. (420) 541 424 611 NORWAY (47) 67 12 90 20
DENMARK (45) 7025 2900 POLAND (48) 22 211 9600
ESTONIA (372) 651 0370 PORTUGAL (351) 21 471 1880
FINLAND (358) 207 513513 ROMANIA (40) 21 320 5111
FRANCE (33) 1 6476 1000 SLOVAKIA (421) 2 444 56725
GERMANY (49) 6103 4020 SLOVENIA (386) 73 885 412
GREECE (30) 210 271 7265 SPAIN (34) 945 184 100
HUNGARY (36) 23 511 390 SWEDEN (46) 8 603 1200
IRELAND (353) 1 403 9000 SWITZERLAND (41) 52 396 3131
ITALY (39) 02 92711 UNITED KINGDOM (44) 1908 563888
