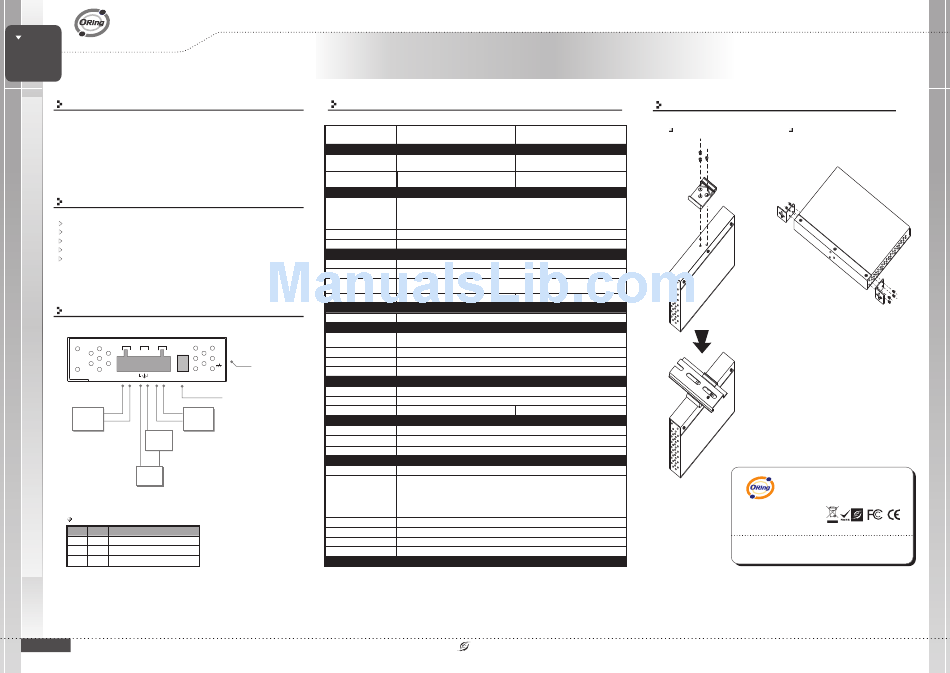

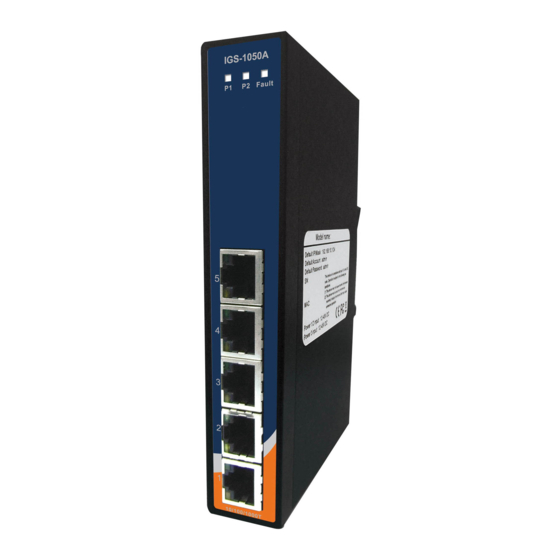

ORiNG IGS-1050A Quick Installation Manual

ORing Industrial Networking Corp.
GIGABIT
SWITCH
Q I
uick nstallation
I N D U S T R I A L
Introduction
IGS-1000 series are industrial unmanaged gigabit Ethernet switches.
series support dual redundant power inputs, rigid IP-30 housing and have DIP
switches to enable or disable relay output alarm. In addition, the wide operating
o o
temperature range from -40 C to 70 C can satisfy most of operating environment.
Features
Dual redundant DC power inputs at terminal block
Very wide operating temperature range from -40 C to 70 C
Rigid IP-30 slim type housing design
DIN-Rail and panel mounting enabled
Relay output to carry capacity of 1A at 24 VDC
Power Connection Guide
PWR-2 1A@24V PWR-1 DC12-48V
V2+ V2- V1+ V1-
V+ V-
Power Power
V- V+
Supply Supply
12-48 VDC 12-48 VDC
Warning
Device
+24V GND
Power
Supply
DIP Switch Function
DIP-1 DIP-2 Description
OFF OFF Power failure relay alarm disabled
ON OFF PWR-1 failure, relay alarm enabled
OFF ON
PWR-2 failure, relay alarm enabled
Q I G
IGS-1000 Series
IGS-1000 Series
G
uide
Specifications
IGS-1000
ORing Gigabit Switch
Model
Physical Ports
10/100/1000 Base-T(X) Ports in
RJ45 Auto MDI/MDIX
1000Base-X SFP Port
Technology
Ethernet Standards
o o
MAC Table
Processing
LED indicators
Power indicator
Fault Indicator
10/100/1000TX RJ45 Port
Indicator
1000X SFP port indicator
Fault contact
Relay
Power
Redundant Input power
Power consumption(Typ.)
G Reverse polarity protection
Frame Ground
Overload current protection
Physical Characteristic
Enclosure
DIP Switch Select for
Dimension (W x D x H)
Power Alarm Relay Output
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory approvals
EMI
EMS
Shock
Free Fall
Vibration
Safety
Warranty
IGS-1050A IGS-1041GPA
5 4
- 1
IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X) and 100BaseFX,
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
1024 MAC addresses
Store-and-Forward
Green: Power LED x2
Amber: Indicate PWR1 or PWR2 failure
Green: Link/Act
Amber: 100 Mbps indicator
-
Green for port Link/Act
Relay output to carry capacity of 1A at 24VDC
Dual DC inputs. 12-48VDC on 6-pin terminal block.
5.5 Watts
Present
Present
IP-30
26.1(W) x 95(D) x 144.3 (H) mm (1.30 x 3.74 x5.68 inch)
420g 403g
-40 to 85 C (-40 to 185 F) o o
o o
-40 to 70 C (-40 to 158 F)
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950
5 years
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Gigabit Switch
Installation
DIN-Rail Install Step Wall-mounted Install Step
ORing Industrial Networking Corp.
Copyright© 2008 ORing
All rights reserved.
TEL: +886-2-2918-3036 Website: www.oring-networking.com
FAX: +886-2-2918-3084 E-mail: support@oring-networking.com
Quick Installation Guide
Version 1.1
