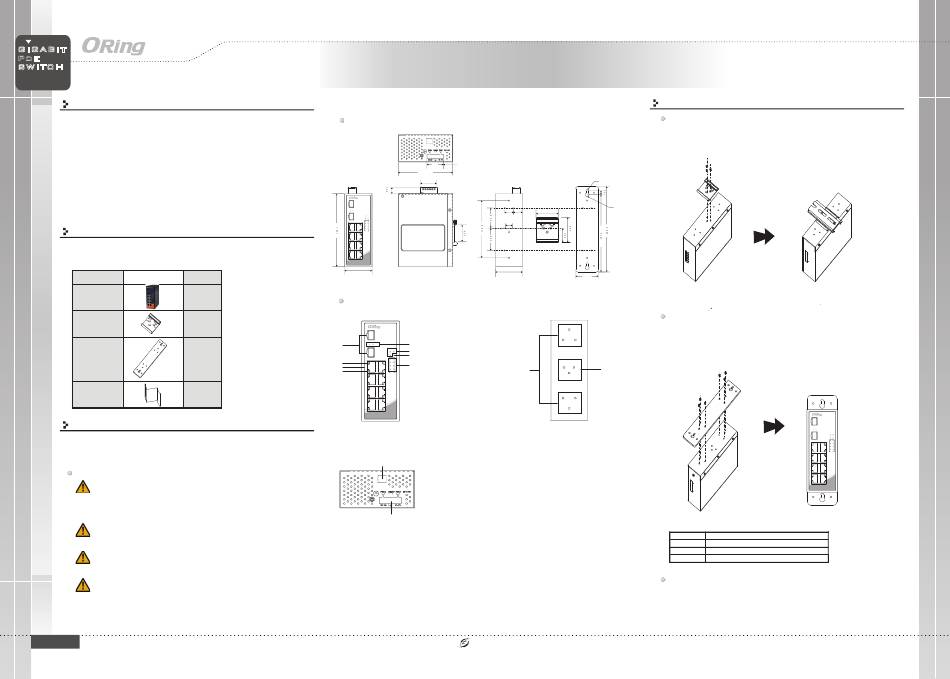

Introduction

The IGPS-1082GP series , which includes the
1082GP-24V models, are full Gigabit unmanaged PoE Ethernet switches
with 8x10/100/1000Base-T(X) P.S.E. ports and 2x100/1000Base-X SFP
ports. To enable higher cost efficiency, the series support Power-over-
Ethernet, a technology that transmits electrical power along with data on a
standard twisted-pair cable. The total power budget for
IGPS-1082GP-24V is 180W and 120W respectively, both with maximum 30W
per port. Configuration of SFP speed is made easy with a 4-pin DIP switch
which can also be set to send power failure alerts. With a wide operating
o o
temperature range from -40 C to 75 C and dual power inputs, they can work
perfectly in harsh environments.

Package Contents

The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IGPS-1082GP or
IGPS-1082GP-24V
DIN-rail Kit
Wall-mount Kit
QIG

Preparation

Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
Q I G
IGPS-1082GP Series
IGPS-1082GP Series
G
uide
IGPS-1082GP and the IGPS-

Dimension

IGPS-1082GP and
IGPS-1082GP
G10
G6 G10
PWR1 PWR
G9
100/1000X PWR2 Fault
LNK/ACK 7 8
5 6
G7 G8
3 4
1 2
PoE
G5 G6
G3 G4
G1 G2
10/100/1000T
Speed
54.3
X 1

Panel Layouts

Front View
X 1
G10
4 G6 G10
G9
100/1000X
X 1
LNK/ACK
6
5
G7
7
G5
G3
X 1
G1
Speed
Top Panel
1. Terminal blocks: PWR1, PWR2
, Relay
2. DIP switch
1907-2-29-IGPS1082GP-1.0
32.2 19.0
108.5
32.2
40.0
18.0 18.15
14.0
54.3
Rear View
IGPS-1082GP 1. Power status LED
2. Fault LED
3. LNK/ACT LED for SFP modules
3
4. SFP Ports
PWR1 PWR 1
5. Gigabit LAN ports
2
PWR2 Fault
7 8 6. Link/Act LED for Gigabit LAN
5 6 8
G8 3 4 ports
1 1
1 2
PoE
7. Speed LED for Gigabit LAN ports
G6 8. PoE status LED
G4
G2
10/100/1000T
1. Wall-mount screw holes
2. Din-rail screw holes
2
1
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Gigabit PoE Switch

Installation

DIN-rail Installation

Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
R2.5
R3.95
51.0

Wall-mounting

Step 1: Screw the wall-mount kit onto the rear panel of the switch. A total of six
screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
2
Dip Switch
DIP-Switch 1 Power-2 failed warning : (ON) enable, (OFF) disable
DIP-Switch 2 Power-1 failed warning : (ON) enable, (OFF) disable
DIP-Switch 3 DIP switch 3 and 4 (ON) : SFP speed setting to 100Mbps
DIP-Switch 4 DIP switch 3 and 4 (OFF) : SFP speed setting to 1000Mbps(default)

Network Connection

The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs). Please
specifications.
