ORiNG IGS-1082GP Quick Installation Manual

GIGABIT
SWITCH
Q I
uick nstallation
I N D U S T R I A L
Introduction

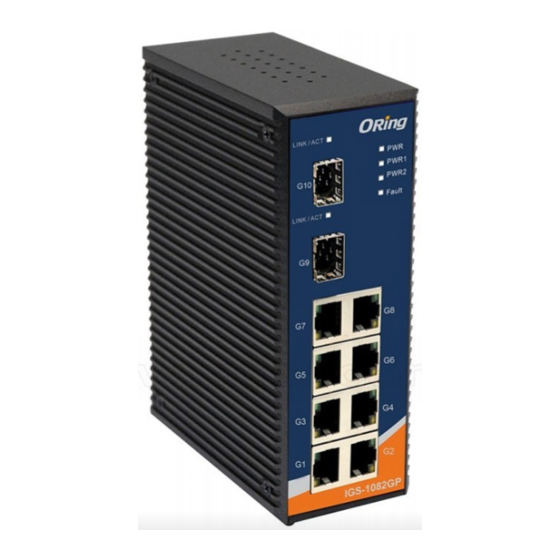

The IGS-1082GP is a Gigabit unmanaged Ethernet switch with
8x10/100/1000Base-T(X) ports and 2x100/1000Base-X SFP ports, ideal for
applications that demand high bandwidth. The device support a wide range
power input between 12~48VDC to satisfy the demands of devices.
Configuration of SFP speed is made easy with a 4-pin DIP switch which can
also be set to send power failure alerts. With a wide operating temperature
o o
range from -40 C to 75 C and dual power inputs, the devices can work
perfectly in harsh environments.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IGS-9042GP
DIN-rail Kit
Wall-mount Kit
QIG
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply wiring. Appropriate
Q I G
IGS-1082GP
G
uide
Dimension
IGS-1082GP
G10
G6 G10
PWR1 PWR
G9
100/1000X PWR2 Fault
LNK/ACK
G7 G8
G5 G6
G3 G4
G1 G2
10/100/1000T
Speed
54.3
X 1
Panel Layouts
X 1
Front View
G10
4 G6 G10
X 1
G9
100/1000X
LNK/ACK
6
5
G7
7
X 1
G5
G3
G1
Speed
Top Panel
1. Terminal blocks: PWR1, PWR2
, Relay
2. DIP switch
1907-2-29-IGS1082GP-1.0
IGS-1082GP
32.2 19.0
108.5
32.2
40.0
18.0 18.15
14.0
54.3
Rear View
IGS-1082GP 1. Power status LED
2. Fault LED
3. LNK/ACT LED for SFP modules
3
4. SFP Ports
PWR1 PWR 1
5. Gigabit LAN ports
2
PWR2 Fault
6. Link/Act LED for Gigabit LAN
G8 ports
1 1
7. Speed LED for Gigabit LAN ports
G6
G4
G2
10/100/1000T
1. Wall-mount screw holes
2. Din-rail screw holes
2
1
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Gigabit Switch
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
R2.5
R3.95
51.0
Wall-mounting
Step 1: Screw the wall-mount kit onto the rear panel of the switch. A total of six
screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
2
Dip Switch
DIP-Switch 1 Power-2 failed warning : (ON) enable, (OFF) disable
DIP-Switch 2 Power-1 failed warning : (ON) enable, (OFF) disable
DIP-Switch 3 DIP switch 3 and 4 (ON) : SFP speed setting to 100Mbps
DIP-Switch 4 DIP switch 3 and 4 (OFF) : SFP speed setting to 1000Mbps(default)
Network Connection
The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs). Please
specifications.
Version 1.0
IGS-1082GP
G10
G6 G10
PWR1 PWR
G9
100/1000X PWR2 Fault
LNK/ACK
G7 G8
G5 G6
G3 G4
G1 G2
10/100/1000T
Speed
refer to the following table for cable
Quick Installation Guide
