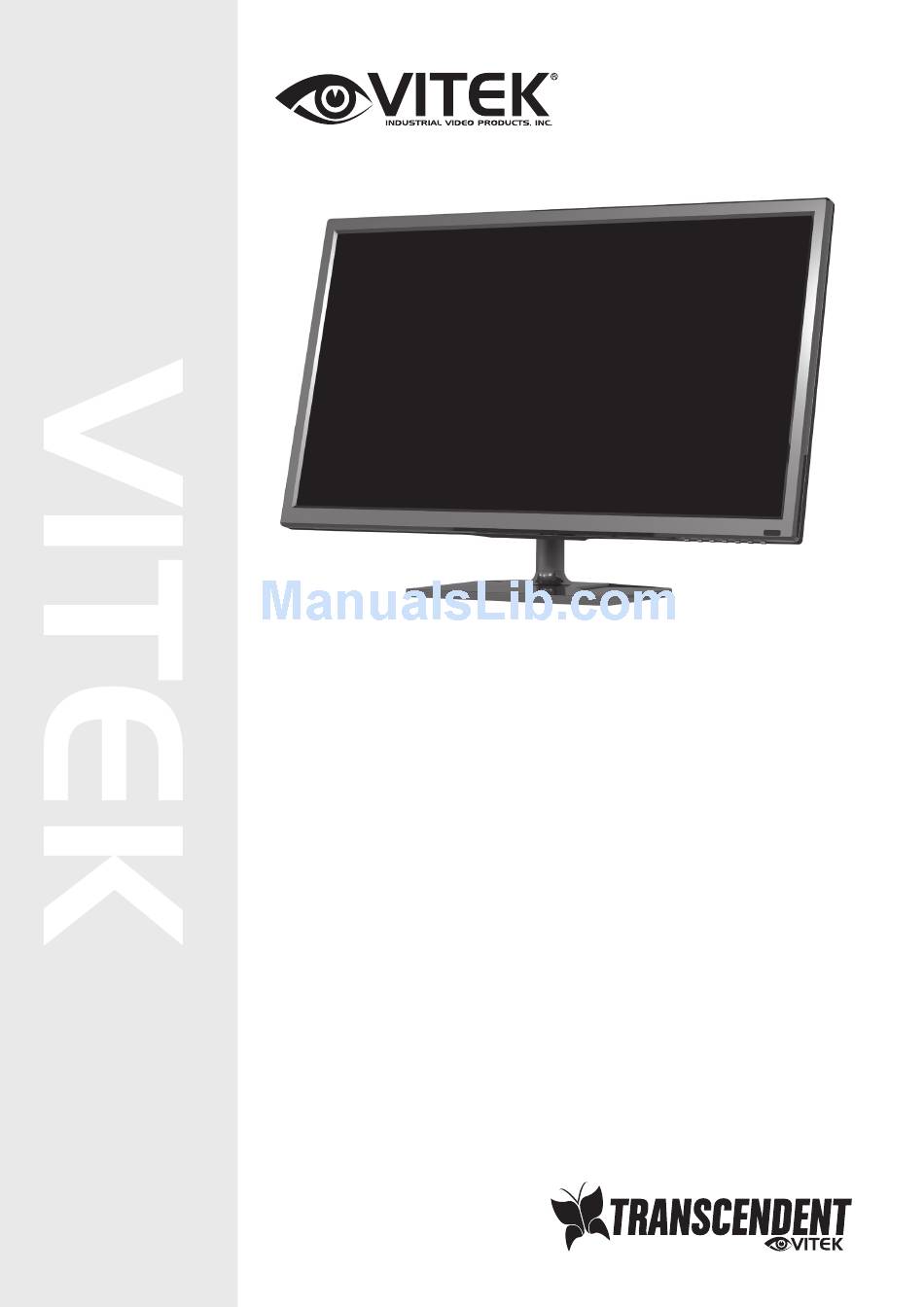

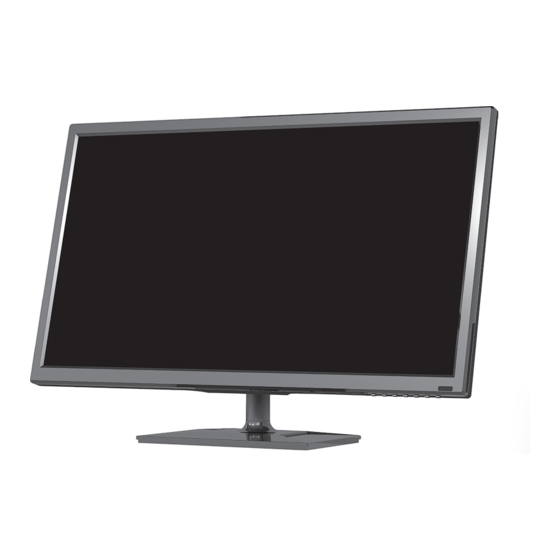

VTM-LED280-4K
Transcendent 28" Professional
4K LED Monitor with HDMI and
DisplayPort Inputs
FEATURES
• 28" Wide Screen 4K LED Display Panel
• Dual HDMI v2.0 & Dual DisplayPort v1.2 Video Inputs with Stereo Audio Output
• 4K Resolution (3840 x 2160)
• Contrast Ratio of 1000:1
• <5ms Response time
• 170° Horizontal Viewing Angle
• Front Panel Controls
• 100mm VESA Standard Mounting
• Professional grade display designed for 24/7 continuous use in security
applications with 50,000 Hour Panel Life
• 3 Year Warranty
Advertisement
Table of Contents
Related Manuals for Vitek VTM-LED280-4K
Summary of Contents for Vitek VTM-LED280-4K
- Page 1 VTM-LED280-4K Transcendent 28” Professional 4K LED Monitor with HDMI and DisplayPort Inputs FEATURES • 28” Wide Screen 4K LED Display Panel • Dual HDMI v2.0 & Dual DisplayPort v1.2 Video Inputs with Stereo Audio Output • 4K Resolution (3840 x 2160) •...
-
Page 2: Table Of Contents
VTM-LED280-4K: Operation Manual TABLE OF CONTENTS 1) SAFETY INFORMATION ................2 2) WHAT’S INCLUDED ................... 4 3) CONNECTIONS ..................4 4) BUTTON FUNCTIONS ................5 5) WALL MOUNTING ..................5 6) GETTING STARTED ................... 5 INITIAL SETUP ..................... 5 PICTURE SET ...................... 6 IMAGE ........................7 COLOR TEMP ...................... -
Page 3: Safety Information
VTM-LED280-4K: Operation Manual 1) SAFETY INFORMATION • Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. - Page 4 VTM-LED280-4K: Operation Manual • Do not remove the safety covers. There are no user serviceable parts inside. Trying to service the unit yourself is dangerous and may invalidate the product’s warranty. Only qualified personnel should service this apparatus. • To avoid battery leakage, remove exhausted batteries from the remote control when not in use for a long period.
-
Page 5: What's Included
VTM-LED280-4K: Operation Manual 2) WHAT’S INCLUDED User manual Power supply Power cable HDMI cable IR Remote 3) CONNECTIONS DC input port: Connection for Monitor power HDMI 1 port: This port is HDMI 2.0 HDMI 2 port: This port is HDMI 2.0 DP 1 This port Display Port 1.2... -
Page 6: Button Functions
VTM-LED280-4K: Operation Manual 4) BUTTON FUNCTIONS 1) SOURCE: Press this button to select the source or exit menu. 2) MENU: To enter menu setting page. Press to move left in the OSD setting. Press to move right in the OSD setting Press to move up in the OSD setting ▼... -
Page 7: Picture Set
VTM-LED280-4K: Operation Manual Select from: HDMI 1 HDMI 2 PICTURE SET BRIGHTNESS Change image brightness, according to ambient light. Value “0-100” Contrast: C hange contrast between white and black areas of the image. Value “0-100” Change the image settings among the following:” SRGB –ENERGY SAVE-STANDARD- TEXT-MOVIE-GAME”. -
Page 8: Image
VTM-LED280-4K: Operation Manual IMAGE H. POSITION Change horizontal position of the display image. Press “3” and “4” buttons to horizontally move the image. I. POSITION Change vertical position of the display image. Press “3” and “4” buttons to vertically move the image. -
Page 9: Color Temp
VTM-LED280-4K: Operation Manual COLOR TEMP COLOR TEMP. Change the color settings among the following: ”Warm – Cool – User”, in “ User” option, you can select “ Red : 0-100, Green: 0-100, Blue : 0-100 “. OSD SETTING LANGUAGE Select the desired language: “ENGLISH, FRENCH, TURKCE, ITALIANO, ESPANOL, PORTUGUES, CHINESE, NEDERLANDS, JAPANESE, DEUTSCH, and POLSKI”. -
Page 10: Reset
VTM-LED280-4K: Operation Manual OSD TIMER Set the duration of the OSD, value “0-100”. TRANSPARENCY Set the transparency of the OSD, value “0-100” RESET IMAGE AUTO ADJUST Auto adjust the image. COLOR AUTO ADJUST Auto adjust the image color. RESET Factory default the monitor... - Page 11 VTM-LED280-4K: Operation Manual SIGNAL SOURCE Choose the signal source of the display “ HDMI1, HDMI2, DP1, DP2, AUTO”. VOLUME Adjust the volume level FREE SYNC Set the free sync effect on or off to ensure the image display...
-
Page 12: Troubleshoting
VTM-LED280-4K: Operation Manual 7) TROUBLESHOTING Problem Solution No power Insert the power plug securely into the power outlet. Ensure that the equipment is connected properly. Ensure the correct input is selected. No picture Buttons on the monitor don’t do Disconnect the power plug and then reconnect it. (The unit may not be operating properly due to lightning, static, or other factors.) -
Page 13: Specifications
VTM-LED280-4K: Operation Manual Preliminary Specifications: Transcendent 28” Professional 4K LED VTM-LED280-4K Monitor with HDMI and DisplayPort Inputs 8) SPECIFICATIONS VTM-LED280-4K Specifications Panel Type 28’’ (16:9) 4K LED Backlit Monitor Resolution 3840(H) x 2160(V) @ 60 Hz (4K) Contrast Ratio 1000:1 Typical Brightness 300 cd/m²... -
Page 14: Dimensions
VTM-LED280-4K: Operation Manual 9) DIMENSIONS 2.17” 26.10” 0.79” 1.77” 100mm 10.24”... - Page 15 VTM-LED280-4K: Operation Manual...
- Page 16 VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
