VTM-143C

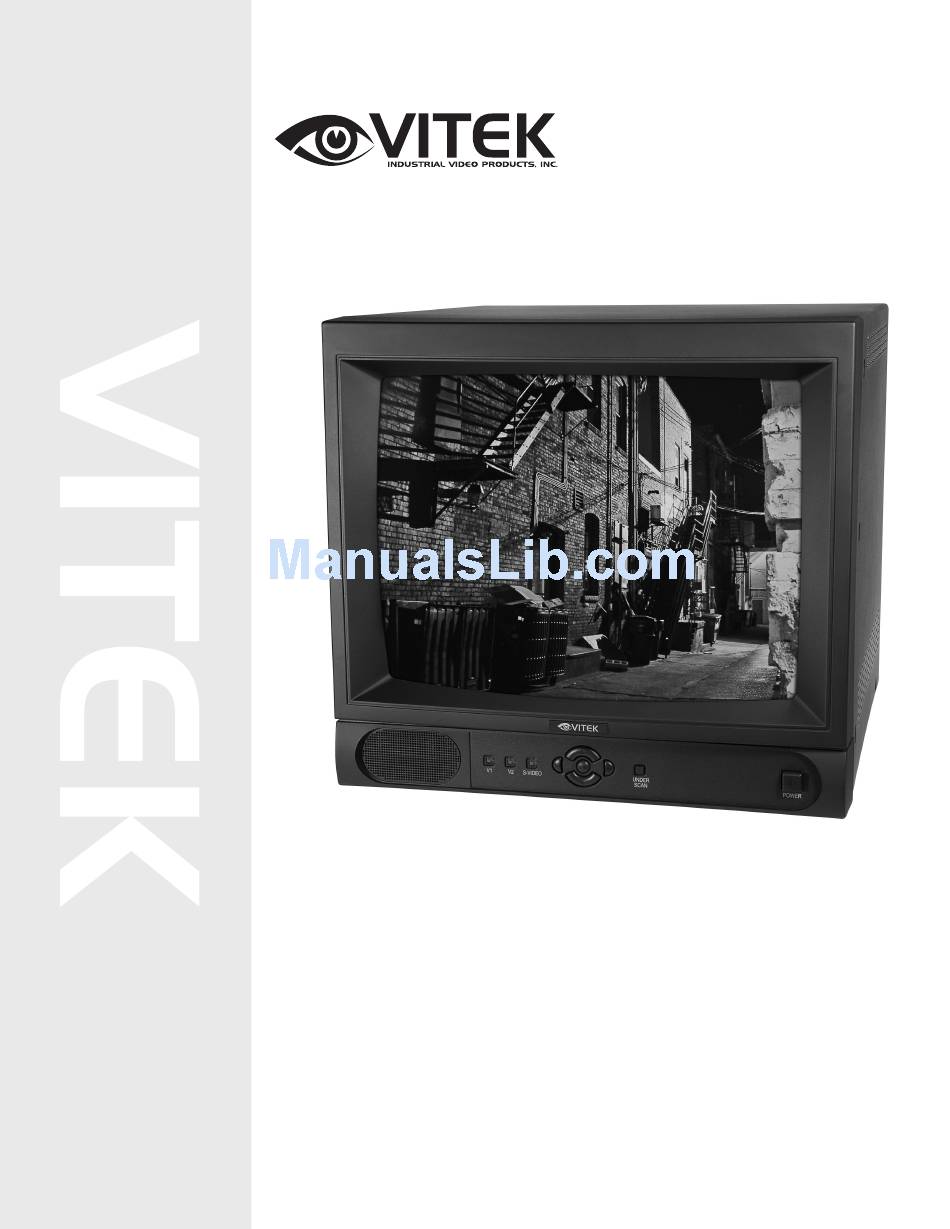

14" Color CRT Monitor
• 450 TV Lines At Center on a 14" Diagonal Screen
• Attractive Black Metal Cabinet
• Digital Front Panel Controls For: Tint, Color, Brightness, Contrast
• Front Panel Video Source Buttons for: Video1 / Video2 / S-Video
• 2 Looping Video Inputs & Dual Audio In / Out
• Rack Kit Available: VI-141CRM
Advertisement
Table of Contents
Related Manuals for Vitek VTM-143C
Summary of Contents for Vitek VTM-143C
- Page 1 VTM-143C 14” Color CRT Monitor • 450 TV Lines At Center on a 14" Diagonal Screen • Attractive Black Metal Cabinet • Digital Front Panel Controls For: Tint, Color, Brightness, Contrast • Front Panel Video Source Buttons for: Video1 / Video2 / S-Video •...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 3 11) Power Sources This product should be operated only from the type of power resource indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions.
- Page 4 FRONT CONTROLS / REAR INPUTS/OUTPUTS...
-
Page 5: Front Panel Controls
These BNC connectors permit looping of a video signal in those installations where it is desirable to display the video signal on more than one monitor. A standard 1.0 Vp-p video signal applied to the VIDEO INPUT will also appear at the VIDEO OUTPUT. - Page 6 OSD MENU ADJUSTMENTS Access the OSD Menu: Press the MENU button and use the arrow up/down buttons and arrow left/right to navigate the menu system. To exit the OSD menus, press MENU repeatedly until the menu closes. Contrast adjustment: Adjust the CONTRAST control for the desired overall display contrast. Proper adjustment will allow maximum gradations between the darkest and lightest picture areas.
-
Page 7: Connecting The Monitor
Audio signal cable Video Video camera Video signal cable Video Monitor Audio Audio signal cable Video Video camera Video signal cable Video Monitor Audio Audio signal cable Video camera Y/C (S-VHS) S-VHS Signal cable CONNECTING THE MONITOR Audio Video Audio Video Audio... - Page 8 NOTES...
- Page 9 NOTES...
-
Page 10: Detailed Specifications
SPECIFICATIONS DETAILED SPECIFICATIONS Picture Tube Resolution Video System A/V Terminals Input Signal Sound output Speaker Power Source Power Consumption Operating Temperature Dimensions(W x H x D) Weight 14" diagonal with 90° deflection angle 450 TV Lines NTSC / PAL Looping BNC Video In/Out, S-Video Input, Audio In/Out Video Composite: 1Vp-p 1.0 W AC 100-240V~, 50/60 Hz... -
Page 11: Warranty Information
Monitors (picture tube) which carry a ninety (90) day warranty due to potential misuse. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of two (2) years, or as otherwise stated above, from the date of purchase. - Page 12 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...
