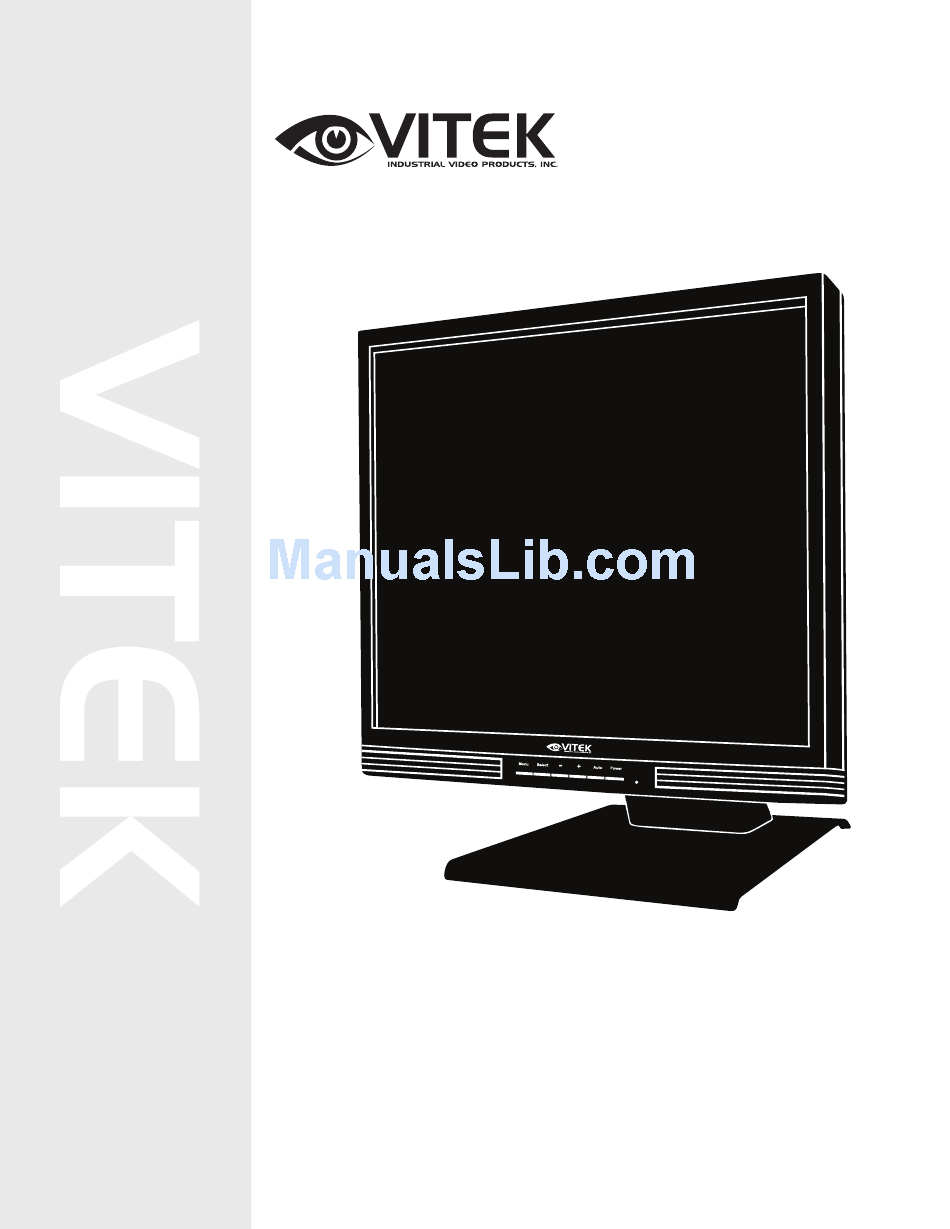

- Page 1 VTM-LCD1 74P VTM-LCD194P 1 7” & 19” Professional LCD Monitors • 17" or 19” LCD Display Panel • VGA, Dual Looping BNC Composite, and HDMI Video Inputs • Resolution up to 1280 X 1024 • Contrast Ratio of 800:1 • Front Panel Controls •...
-
Page 2: Package Contents
VTM-LCD174P / VTM-LCD194P Introduction Congratulations on your purchase. You can expect only the sharpest and most brilliant color images from this monitor. Featuring easy to use OSD controls and built in speakers, you will find this monitor both easy to use and a pleasure to look at. -
Page 3: Specifications
VTM-LCD174P / VTM-LCD194P Specifications VTM-LCD174P VTM-LCD194P Panel Type 17" TFT Color LCD 19" TFT Color LCD Display Colors 16.2 Million Colors 0.264 mm Pixel Pitch Recommended SXGA (1280 x 1024) Resolution Contrast Ratio 800:1 Brightness 350 cd/m2 Viewing Angle H: 160 degrees V: 135 degrees... - Page 4 VTM-LCD174P / VTM-LCD194P Timing Resolution H Freq.(kHz) V Freq.(Hz) Note Item 640x400@70 31.46 640x480@60 31.5 59.940 VESA 640x480@72 37.9 72.809 VESA 640x480@75 37.5 75.000 VESA 720x400@70 31.46 VESA 800x600@60 37.9 60.188 VESA 800x600@72 48.1 72.000 VESA 800x600@75 46.9 75.087 VESA 1024x768@60 48.4...
-
Page 5: Monitor And Osd Control
VTM-LCD174P / VTM-LCD194P Monitor and OSD Control The LCD color monitor has a simple control layout for controlling the monitor and OSD (On Screen Display) functions. The table below summarizes the control keys and their related functions. Keys Function Description Power Pressing this key turns he display system power ON/OFF. -
Page 6: Osd Control Function List
VTM-LCD174P / VTM-LCD194P OSD Control Function List Picture Mode 1. Picture Mode Press “-” OR “+” to select the picture mode “ Memory , Standard , Mid , Dynamic” 2. Contrast This is used to adjust the image contrast. Press “-” OR “+” to adjust the parameter. - Page 7 VTM-LCD174P / VTM-LCD194P Setup Mode 1. Setup Mode Press “Select” to select “Language, Source” mode. 2. Language Press “-” OR “+” to select language. 3. Source Press “-” OR “+” to select “PC, AV1, AV2, HDMI” Signal Source. Video Settings 1.
-
Page 8: Caring For Your Lcd Monitor
VTM-LCD174P / VTM-LCD194P Caring for your LCD Monitor The LCD color monitor is a sensitive piece of electronic equipment. Proper care can prevent accidentally damaging the LCD panel or the monitor itself. By following these guidelines you can ensure many years of trouble free use. -
Page 9: Regulations And Maintenance
VTM-LCD174P / VTM-LCD194P F.A.Q. Power button does not respond • Check the power cord to ensure that it is securely plugged into the monitor base and also into the electrical outlet. • Ensure there is electrical power coming from the AC outlet. Use another device to check for power. - Page 10 VTM-LCD174P / VTM-LCD194P interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 11 VTM-LCD174P / VTM-LCD194P ◎ If the product has been dropped or the cabinet has been damaged. ◎ If the product exhibits a distinct change in performance, indicate a need for service. ＊Power and extension cords Do not allow anything to rest on the power cord.
