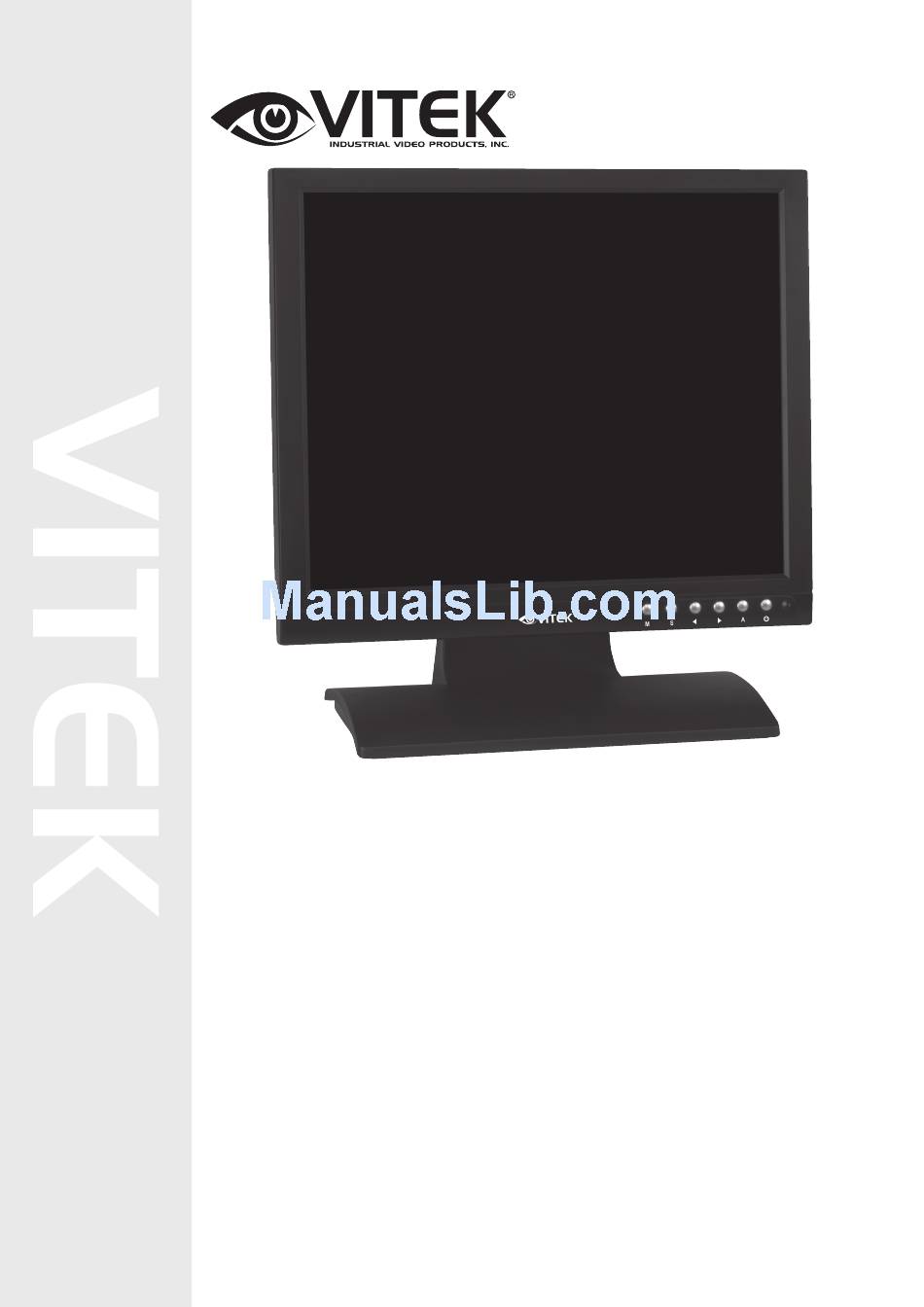

VTM-LCD155P
15" Professional LCD Monitor with
VGA and Looping BNC
• 15" LCD Display Panel
• VGA and Looping BNC Composite Video Inputs & Stereo Audio Input
• Resolution up to 1024 x 768 (XGA)
• Contrast Ratio of 800:1
• <8ms Response time
• 170° Horizontal Viewing Angle
• Front Panel Controls
• VESA 75mm Standard Mounting
• 50,000 Hour Panel Life

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTM-LCD155P and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VTM-LCD155P

Summary of Contents for Vitek VTM-LCD155P

  • Page 1 VTM-LCD155P 15” Professional LCD Monitor with VGA and Looping BNC • 15” LCD Display Panel • VGA and Looping BNC Composite Video Inputs & Stereo Audio Input • Resolution up to 1024 x 768 (XGA) • Contrast Ratio of 800:1 •...

  • Page 2: Introduction And Package Contents

    Introduction and Package Contents Introduction Congratulations on VITEK LCD Monitor purchase. You can expect only the sharpest and most brilliant color images from this monitor. Featuring OSD controls and built in speakers, you will find this monitor both easy to use and a pleasure to view.

  • Page 3: Specifications

    Specifications VTM-LCD155P Screen Size 15" Display Type Aspect Ratio Resolution XGA (1024x768) Response Time <8ms Contrast Ratio 800:1 Display Color 16.7 Million Brightness 250cd/m² Pixel Type Active Matrix TFT Pixel Pitch 0.294(H) x 0.294(V) Viewing Angle (H/V) 170° / 160°...
  • Page 4 VGA Timing Item Resolution H Freq.(kHz) V Freq.(Hz) 640x400@70 31.460 70.080 640x480@60 31.469 59.940 640x480@72 37.861 72.809 640x480@75 37.500 75.000 720x400@70 31.460 70.080 800x600@56 35.156 56.250 800x600@60 37.879 60.317 800x600@72 48.077 72.188 800x600@75 46.875 75.000 1024x768@60 48.363 60.004 1024x768@70 56.476 70.069 1024x768@75 60.023...

  • Page 5: Monitor And Osd Control

    Monitor and OSD Control The VITEK VTM-LCD155P LCD color monitor has a simple layout for controlling the monitor and OSD (On Screen Display) functions. The table below summarizes the control keys and their related functions. Keys Function Description Toggle the display between standby mode and on.

  • Page 6: Osd Control Function List

    OSD Control Function List OSD Menu Picture Mode 1. Picture Mode Press -/ OR +/ to select the picture mode “User, Standard, Movie, Vivid ” 2. Contrast This is used to set the brightness of the screen. Press -/ OR +/ to adjust the parameter.

  • Page 7: Setting Mode

    Setting Mode AV Mode VGA Mode 1. Language Press -/ OR +/ to select language. 2. H. Position Move the display picture left or right. Press -/ OR +/ to adjust the parameter. 3. H Zoom Adjust the H-size of the display picture Press -/ OR +/ to adjust the parameter.

  • Page 8: Caring For Your Lcd Monitor

    Caring for Your LCD Monitor Caring for your LCD Monitor Your VITEK LCD color monitor is a sensitive piece of electronic equipment. Proper care can prevent accidentally damaging the LCD panel or the monitor itself. By following these guidelines you can ensure many years of trouble free use.

  • Page 9: Frequently Asked Questions

    Frequently Asked Questions Power button does not respond • Check the power cord to ensure that it is securely plugged into the monitor base and also into the electrical outlet. • Ensure there is electrical power coming from the AC outlet. Use another device to check for power.

  • Page 10: Regulations And Maintenance

    Regulations and Maintenance FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 11 ＊ Plugs Do not remove any of the prongs of the monitor’s three-pronged power plug. Disconnect the power plug from the AC outlet under following conditions: ◎ If you will not use it for an indefinite period time. ◎ When the power cord or plug is damaged or frayed. ◎...
  • Page 12 VOID in the event of alteration, defacement, or removal of serial numbers. Within the first 6 months of purchase, VITEK will replace or credit any defective product at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.

  • Page 13: Digital Video Recorders

    Mac OSX Client & CMS Central Management Software Included the EH family, the EHL is completely • Automatic sending of Health & Event notifications via email compatible with all VITEK EH Platform • Control locally via Front Panel, USB Mouse or with the Included IR Remote control •...
  • Page 14 A 620TVL Multi Purpose Wide Dynamic Color Dome Camera with a 3 Year Warranty at a price that will shock even the savviest consumer. The New VITEK Hercules Digital Processor provides features and performance found only in cameras more than twice the cost. Built in...
