• 17" / 19" LED Display Panel
• HDMI, VGA, and Dual Looping BNC Composite Video Inputs & Stereo Audio Input
• Resolution up to 1280 x 1024 (SXGA)
• Contrast Ratio of 10,000:1
• <5ms Response time
• 170° Horizontal Viewing Angle
• Picture In Picture (PIP) / POP (Picture On Picture) Display Options
• Front Panel Controls
• VESA 75mm Standard Mounting
• 50,000 Hour Panel Life
• Swivel Rack Mountable with optional VT-LCD17SRM / VT-LCD19SRM Rack Kit
VTM-LED170P
VTM-LED190P
17" & 19" Professional LED Monitor
w/HDMI, VGA, and Dual Looping BNC's
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTM-LED170P
Summary of Contents for Vitek VTM-LED170P

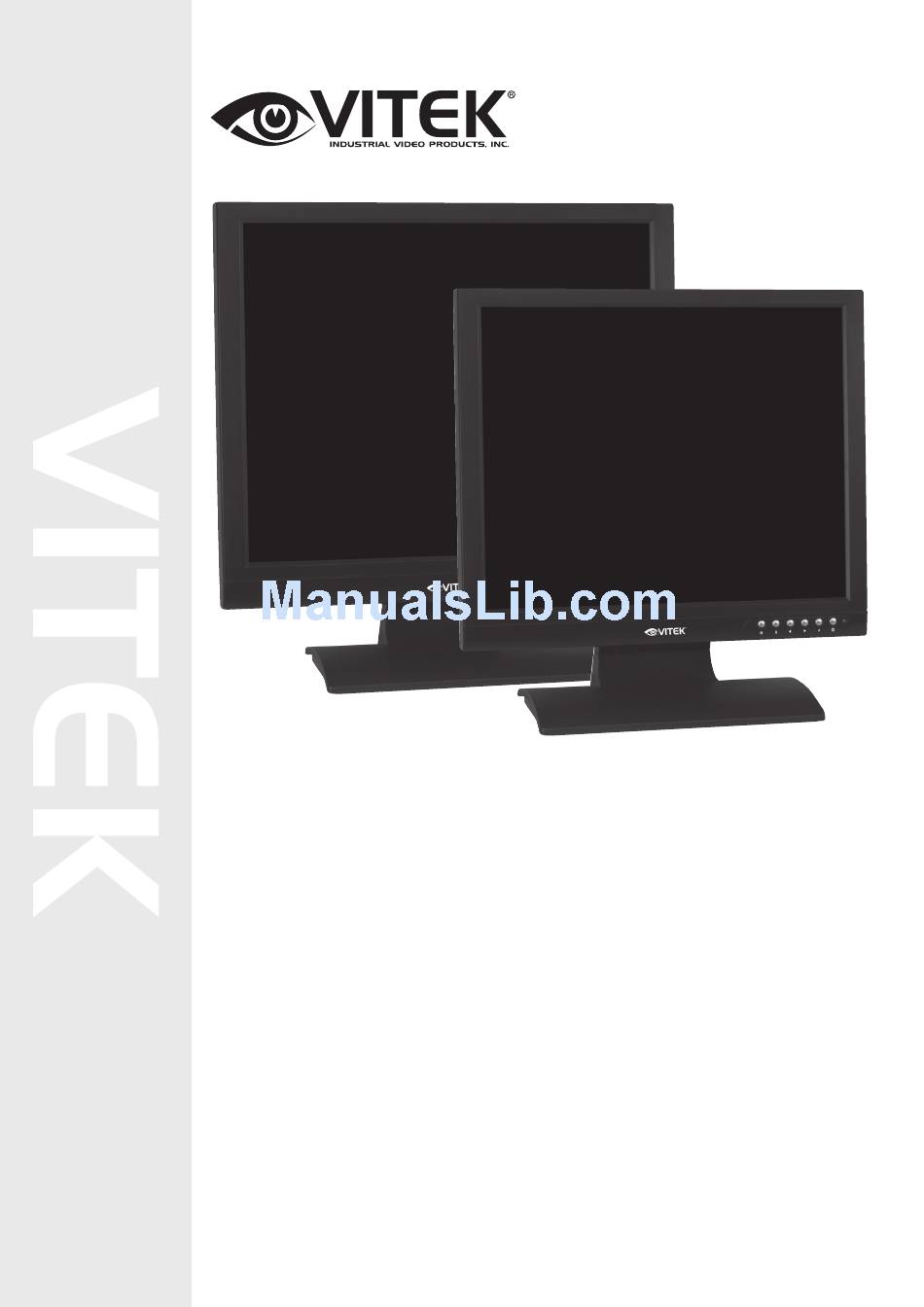

- Page 1 VTM-LED170P VTM-LED190P 17” & 19” Professional LED Monitor w/HDMI, VGA, and Dual Looping BNC’s • 17” / 19” LED Display Panel • HDMI, VGA, and Dual Looping BNC Composite Video Inputs & Stereo Audio Input • Resolution up to 1280 x 1024 (SXGA) •...
-
Page 2: Introduction And Package Contents
Introduction and Package Contents Introduction Congratulations on your VITEK LED Monitor purchase. You can expect only the sharpest and most brilliant color images from this monitor. Featuring OSD controls and built in speakers, you will find this monitor both easy to use and a pleasure to view. -
Page 3: Specifications
Specifications VTM-LED170P VTM-LED190P Screen Size 17" 19" Display Type Aspect Ratio Resolution SXGA (1280x1024) Response Time <5ms Contrast Ratio 10,000:1 Display Color 16.7 Million Brightness 300cd/m² Pixel Type Active Matrix TFT Pixel Pitch 0.264(H) x 0.264(V) 0.294(H) x 0.294(V) Viewing Angle (H/V) 170°... - Page 4 VGA Timing ITEM RESOLUTION H FREQ.(KHZ) V FREQ.(HZ) 640x400@70 31.460 70.080 640x480@60 31.469 59.940 640x480@72 37.861 72.809 640x480@75 37.500 75.000 720x400@70 31.460 70.080 800x600@56 35.156 56.250 800x600@60 37.879 60.317 800x600@72 48.077 72.188 800x600@75 46.875 75.000 1024x768@60 48.363 60.004 1024x768@70 56.476 70.069 1024x768@75 60.023...
-
Page 5: Monitor And Osd Control
Monitor and OSD Control The VITEK VTM-LED170P and VTM-LED190P LED color monitors have a simple control layout for control and OSD (On Screen Display) functions. The table below summarizes the control keys and their related functions. Keys Function Description Toggle the display between standby mode and on. - Page 6 LED Status Display The following table describes the various power states of the LED monitor as represented by different LED colors. Power State LED Color Green Standby No power Blank Note: The LED will also be red if AV1, AV2 or HDMI is selected and there is no video signal detected.
-
Page 7: Picture Mode
OSD Control Function Picture Mode 1. Picture Mode Press (－ ) OR (＋ ) to select the picture mode “User, Standard, Movie, Vivid ” 2. Contrast This is used to set the brightness of the screen. Press (－ ) OR (＋ ) to adjust the parameter. 3. -
Page 8: Setting Mode
Setting Mode AV/HDMI Mode VGA Mode 1. Language Press (－ ) OR (＋ ) to select language. 2. H. Position Move the display picture left or right. Press (－ ) OR (＋ ) to adjust the parameter. 3. H Zoom Adjust the H-size of the display picture Press (－... - Page 9 PIP/POP Setup Mode 1. Multi Window Press (－ ) OR (＋ ) to select “PIP, POP, Off ” mode. 2. Sub Source Press (－ ) OR (＋ ) to select “AV, VGA” mode. 3. Size Adjust the size of Sub Source window. Press (－...
-
Page 10: Caring For Your Led Monitor
Caring for Your LED Monitor Caring for your LED Monitor Your VITEK LED color monitor is a sensitive piece of electronic equipment. Proper care can prevent accidentally damaging the LED panel or the monitor itself. By following these guidelines you can ensure many years of trouble free use. -
Page 11: Frequently Asked Questions/Troubleshooting
Frequently Asked Questions/Troubleshooting Power button does not respond • Check the power cord to ensure that it is securely plugged into the monitor base and also into the electrical outlet. • Ensure there is electrical power coming from the AC outlet. Use another device to check for power. - Page 12 • Inspect the audio cable for any apparent damage. Double check by switching to another audio cable to see if the audio works. 1DU00L7B-A.1...
-
Page 13: Regulations And Maintenance
Regulations and Maintenance FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 14 ＊ Power Use the type of power indicated on the rear panel label. ＊ Plugs Do not remove any of the prongs of the monitor’s three-pronged power plug. Disconnect the power plug from the AC outlet under the following conditions: ◎...
- Page 15 They offer the most advanced features available and simple, worry free installation that have • 700TVL High Resolution come to be a cornerstone of all VITEK camera designs. • E-WDR by Adaptive Tone Reproduction •...
- Page 16 The mIghTY dome The uLTRa VeRSaTILe dome CameRa SeRIeS The Mighty Series Dome cameras include models produced with the new Pixim-Powered Seawolf Wide Dynamic Range DSP and the Sony Effio Day Night DSP. The Highest resolution Analog camera line up to date offers 700 TV Lines of Resolution, up the coax OSD Control and low light capability up to 0.00008 lux.
- Page 17 VOID in the event of alteration, defacement, or removal of serial numbers. Within the first 6 months of purchase, VITEK will replace or credit any defective product at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.
- Page 18 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70...
