VTM-LCD220P

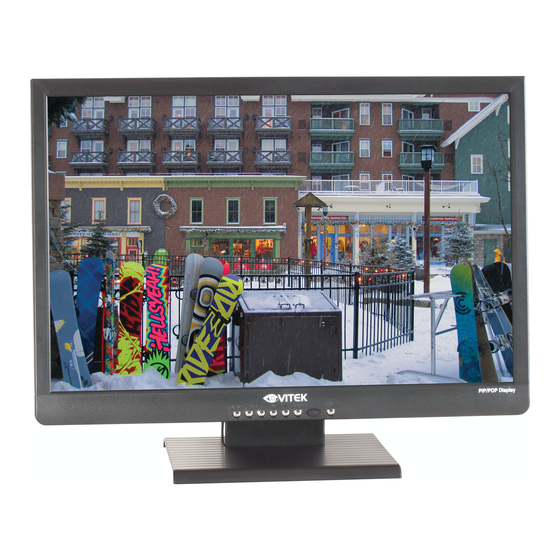

22" Wide Screen Professional
LCD Monitor
• 22" Wide Screen LCD Display Panel
• VGA, Dual Looping BNC Composite, and HDMI Video Inputs & Stereo Audio Input
• Resolution up to 1680 x 1050
• Contrast Ratio of 1000:1
• Front Panel Controls
• Picture In Picture (PIP), Picture By Picture (PBP) or POP (Picture On Picture) Display.
• Panel Rated for 50,000 Hours
• VESA 100mm Standard Mounting
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTM-LCD220P
Summary of Contents for Vitek VTM-LCD220P
-
Page 1: Lcd Monitor

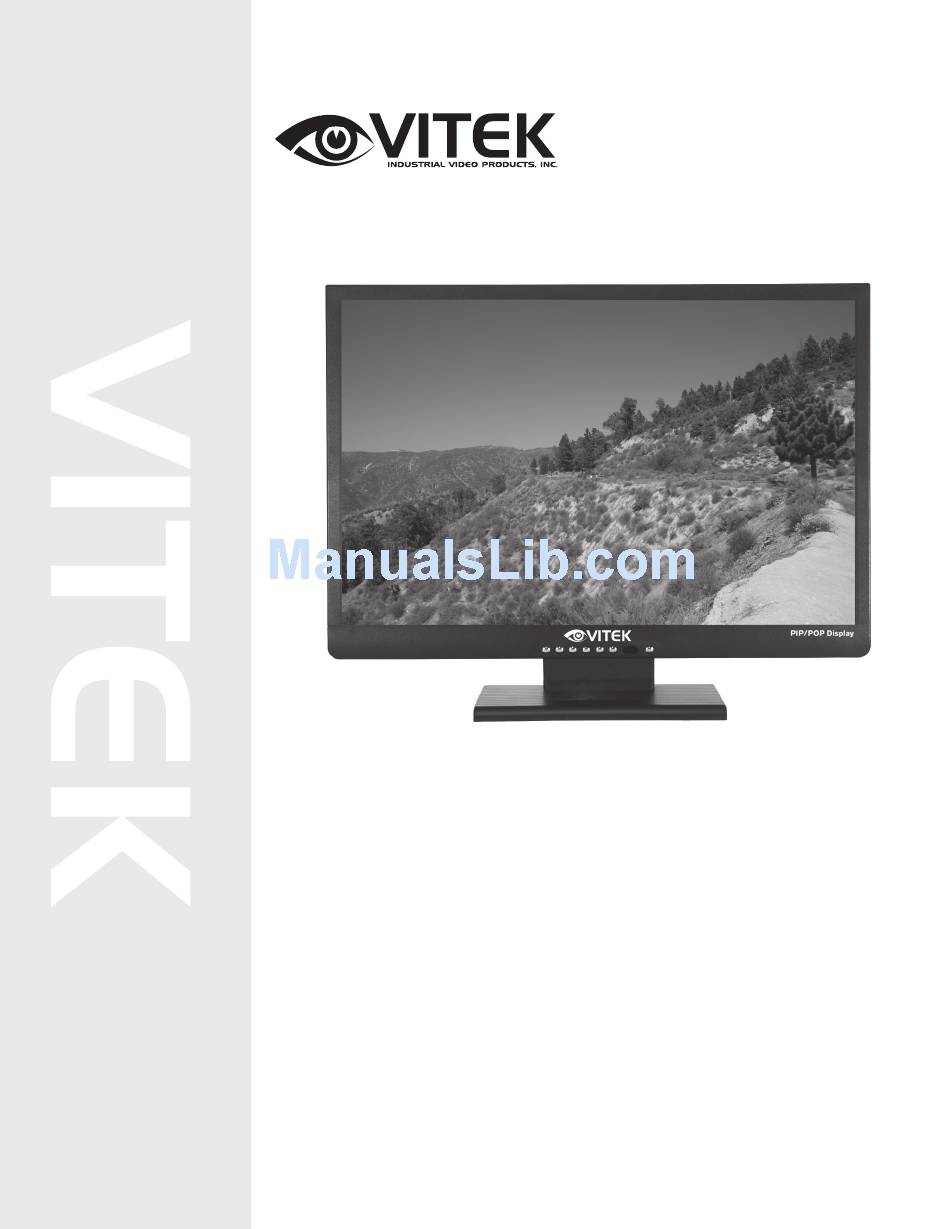

VTM-LCD220P 22” Wide Screen Professional LCD Monitor • 22” Wide Screen LCD Display Panel • VGA, Dual Looping BNC Composite, and HDMI Video Inputs & Stereo Audio Input • Resolution up to 1680 x 1050 • Contrast Ratio of 1000:1 •... -
Page 2: Introduction And Package Contents
VTM-LCD220P Introduction and Package Contents Introduction Congratulations on your purchase. You can expect only the sharpest and most brilliant color images from this monitor. Featuring easy to use OSD controls and built in speakers, you will find this monitor both easy to use and a pleasure to look at. -
Page 3: Specifications
VTM-LCD220P Specifications Panel Type 22" TFT Color LCD Optimum Resolution 1680 x 1050 Display Colors 16.7 Million Colors Pixel Pitch 0.282 (H) x 0.282 (V) mm Contrast Ratio 1000:1 Brightness 300 cd/m2 Viewing Angle H: 170 degrees V: 160 degrees... - Page 4 VTM-LCD220P Timing Item Resolution H Freq.(KHz) V Freq.(MHz) Note VESA 640x400@70Hz 31.46 Standard Industrial 640x480@60Hz 31.5 25.175 Standard VESA 640x480@72Hz 37.9 31.500 Standard VESA 640x480@75Hz 37.5 31.500 Standard VESA 720x400@70Hz 31.46 Standard Industrial 800x600@56Hz Standard VESA 800x600@60Hz 37.9 40.000 Guideline...
-
Page 5: Monitor And Osd Control
VTM-LCD220P Monitor and OSD Control Monitor and OSD Control The LCD color monitor has a simple control layout for controlling the monitor and OSD (On Screen Display) functions. The table below summarizes the control keys and their related functions. Keys... -
Page 6: Osd Control Function List
VTM-LCD220P OSD Control Function List OSD Menu Picture Mode 1. Picture Mode Press “ ” OR “ ” to select the picture mode “Standard, Movie, Vivid, Sport, Game“ 2. Brightness This is used to set the brightness of the screen. - Page 7 VTM-LCD220P Sound Mode 1.Sound Mode Press “Select” to select “ Volume ” mode. 2. Volume Press “ ” OR “ ” to adjust volume level. 3. Mute Press “ ” OR “ ” to select sound “Off,On”. OSD Setup Mode 1.
-
Page 8: Caring For Your Lcd Monitor
VTM-LCD220P PIP/POP Setup Mode 1. PIP/POP Press “Select” to select “PIP” mode. Press “ ” OR “ ” to select “PIP, POP Full, POP 4:3,Off” mode. 2. Multi Window Press “ ” OR “ ”to select “AV, COMPUTER, HDMI” mode. -
Page 9: Frequently Asked Questions
VTM-LCD220P 6. Keep the LCD monitor away from sharp object to touch the screen like fingernail and pencil. WARNING: Any unauthorized modification to this equipment could result in the revocation of the authorization to operate the equipment and void the product warranty. -
Page 10: Regulations And Maintenance
VTM-LCD220P Regulations and Maintenance FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 11 VTM-LCD220P Disconnect the power plug from the AC outlet under following conditions: If you will not use it for an indefinite period time. When the power cord or plug is damaged or frayed. If the product does not operate normally when the operation instructions are followed.
- Page 12 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70...
