VTM-LCD1 73P
VTM-LCD193P

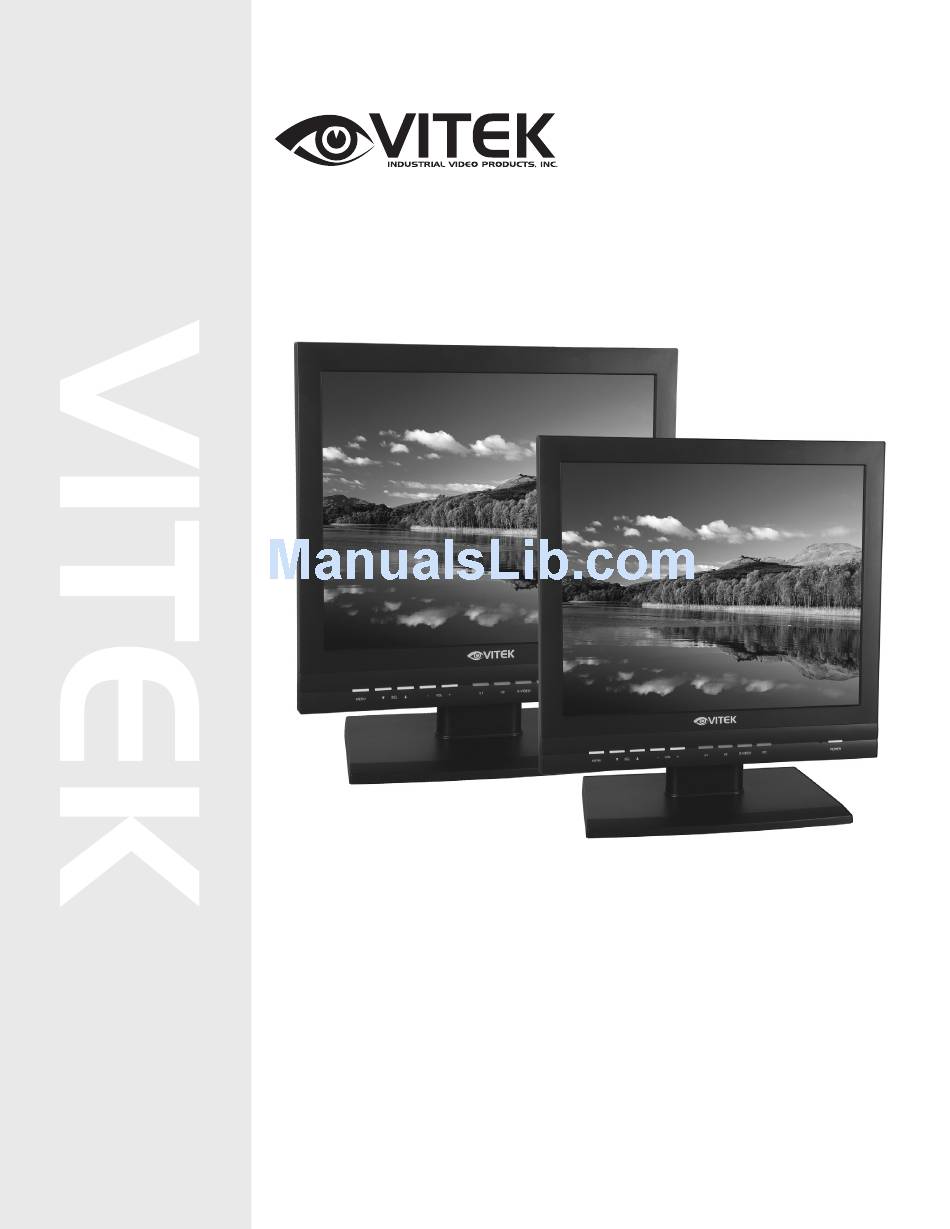

1 7" & 19" Professional LCD Monitors
• 17" or 19" LCD Display Panel
• VGA, Dual Looping BNC Composite, S-Video, and Component
Video Inputs with Video A/B Switch
• Resolution up to 1280 X 1024
• Contrast Ratio of 700:1
• Front Panel Controls
• OSD Menu Programming
• Built-In Speakers
• VESA Standard Mounting 100
Advertisement
Related Manuals for Vitek VTM-LCD173P
Summary of Contents for Vitek VTM-LCD173P
- Page 1 VTM-LCD1 73P VTM-LCD193P 1 7” & 19” Professional LCD Monitors • 17" or 19” LCD Display Panel • VGA, Dual Looping BNC Composite, S-Video, and Component Video Inputs with Video A/B Switch • Resolution up to 1280 X 1024 • Contrast Ratio of 700:1 •...
-
Page 2: Safety Warning
SAFETY WARNING Thank you for purchasing our product. Please read this user's manual thoroughly and understand it before operating the monitor. Also, please keep this manual handy so you can always make quick references. Please observe the following safety warnings. - Page 3 VTM-LCD173P / VTM-LCD193P plug. Pulling on the flexible portion of the cord may damage or expose the wire and insulation, creating the potential for fires or electrical shocks. 11. Plug the power cord in firmly into the wall socket. A loose plug may cause electric shock or become a fire hazard by the heat generated by the electric current.
-
Page 4: Table Of Contents
VTM-LCD173P / VTM-LCD193P SAFETY WARNING ... 1 I. MONITOR LAYOUT... 3 1.1 FRONT ... 3 1.2 REAR... 5 II. PROGRAMMING THE MONITOR... 7 2.1 VIDEO 1, VIDEO 2 and S-VIDEO ... 7 2.2 PC ... 8 I. MONITOR LAYOUT 1.1 FRONT... - Page 5 Displays the status of the monitor: ① Constant Green: the monitor is powered on and the video signal is present. ② Flashing Green (PC only): the monitor is powered on, but the video signal is absent or it’s in power save mode.
-
Page 6: Rear
VTM-LCD173P / VTM-LCD193P 1.2 REAR VTM-LCD173P VTM-LCD193P... - Page 7 VTM-LCD173P / VTM-LCD193P 1. VIDEO 1 LOOP OUT Composite BNC video output 75 Ohms 2. VIDEO 1 INPUT Composite BNC video input 75 Ohms. 3. VIDEO 2 LOOP OUT Composite BNC video output 75 Ohms. 4. VIDEO 2 INPUT Composite BNC video Input 75 Ohms.
-
Page 8: Programming The Monitor
Press the menu button to access the monitor menu. 2.1.1 PICTURE 2.1.1.1 Color Temperature Select the color temperature of the monitor. 9300 offers more of a blue tint compared to the 6500. 2.1.1.2 Contrast Adjust the contrast of the picture. - Page 9 VTM-LCD173P / VTM-LCD193P 2.1.2 UTILITY 2.1.2.1 All Blue Force the screen to have a blue tint. 2.1.2.2 Overscan Expand the screen size in the increments 5%, from of 0% to 10%. 2.1.3 OSD (On Screen Display) 2.1.3.1 OSD Timeout Select the duration of the menu display time before it automatically exits from 5 to 60 seconds.
- Page 10 2.2.3 COLOR 2.2.3.1 Color Temp Select the color temperature of the monitor. 9300 offers more of a blue tint compared to the 6500. The USER reflects the values adjusted from the RED, GREEN and BLUE tint adjustments. 2.2.4 UTILITY 2.2.4.1 Recall...
- Page 11 16.92 x 17.56 x 8.66 inches 16.92 x 17.56 x 2.71 inches 13.23 lbs 10 lbs Video Channel 1, 2 In/Out Audio Channel 1, 2 In/Out S-Video In PC In VTM-LCD173P / VTM-LCD193P VTM-LCD193P 0.294 37 Watts 300 cd/m 15.43 lbs 11.25 lbs...
- Page 12 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...
