SSV Works SS-FKP652 Installation Manual

SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year
warranty against defects in material or workmanship. Labor for replacement of defective
components is not covered. All SSV Works Speakers are covered by a limited 1 year
warranty against defects in material or workmanship. Contact SSV Works for further
warranty information.
TOOLS NEEDED FOR INSTALLATION
- Wire Crimpers
- Wire Strippers
- Drill with 1/8" and 1/4" Drill bit
PARTS LIST IMAGES

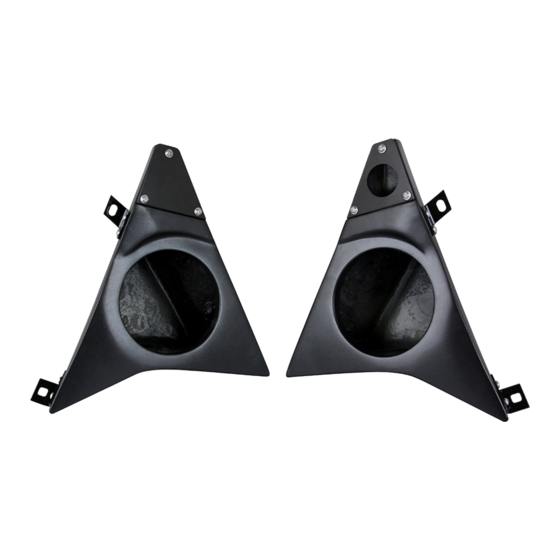

1. SS-FKP652-U Enclosures (1 pair)
4. "J" Bracket x 2
INSTALLATION NOTES
The use of a thread locker is recommended on all screws to prevent loosening due to vibration. If the vehicle is equipped with factory speaker
enclosures, remove those prior to beginning the installation.
- #2 Phillips Screwdriver
- #3 Phillips Screwdriver
- Scribe or Marker
2. Triangle Block Off Plates x 2
5. M6 x 1 x 20mm Screws x 6
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
PARTS LIST
1. SS-FKP652-U Enclosures
(1 pair)
2. Triangle Block off Plates x 2
3. Tweeter Mounting Plates x 2
3. Tweeter Mounting Plates x 2
6. M6 Washers x 12
SS-FKP652
Polaris Slingshot
Front Kick Panels
4. "J" Bracket x 2
5. M6 x 1 x 20mm Screws x 6
6. M6 Washers x 12
7. M6 x 1 x 16mm Screws x 6
6. M6 x 1 x 16mm Screws x 6
