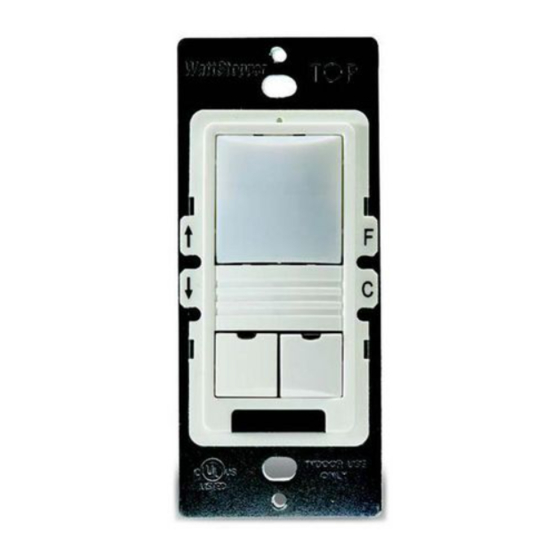

wattstopper LMPW-102 Quick Start Manual

This unit is pre-set for Plug n' Go™ operation,
adjustment is optional.
For full operational details, adjustment and more
features of the product, see the DLM System
Installation Guide provided with the DLM room
controllers and also available at www.wattstopper.com
Installation shall be in accordance with all applicable
regulations, local and NEC codes.
To be connected to a Class 2 power source only.
Class 2 Device Wiring Only – Do Not Reclassify and Install
as Class 1, 3 or Power and Lighting Wiring.
Wire connections shall be rated suitable for the wire size (lead and
building wiring) employed.
Do not apply cleaning solvent directly onto unit. Apply cleaning
solvent onto a cloth, then wipe the unit to clean it.

COVERAGE PATTERN

Do not obstruct the lens.
40 ft
35 ft
25 ft
TOP
180°
VIEW
25 ft
Major motion
35 ft
Minor motion
40 ft
4 ft
SIDE
VIEW 5 ft 25 ft 40 ft
Note: Plus 10° above horizon
CONNECTIVITY
The illustrations below show examples of free-topology wiring. The LMPW communicates
to all other Digital Lighting Management devices connected to the low voltage DLM Local
Network, regardless of their position on the DLM Local Network.
Corner Mount Ceiling Mount
Sensor Sensor
DLM Local Network
LMPW-101 Switch
Switch
Daylight Sensor

BUTTONS AND INDICATORS

LMPW-101
Up
Down
On/Off
Button
IR Window
Line
Voltage
Low Voltage
LMRJ Cables
Line/Hot Neutral
Black wire White wire
LMRC
102
Room
Controller
Yellow wire
Red wire
to Load B (2)
to Load A (1)
J-Boxes
LMPW-101 LMPW-102
Voltage ............................................................................... 24VDC
Current Consumption ............................................................ 8mA
Power Supply .............. Watt Stopper/Legrand Room Controllers
Connection to the DLM Local Network ...................2 RJ-45 ports
DLM Local Network Characteristics:
Provides low voltage power over Cat 5e cable (LMRJ).
Supports up to 24 communicating devices, including 4
LMRC-10x or LMPL-101 max per each DLM Local Network.
Free topology up to 1,000ft of low voltage cable.
Environment ................................................. For Indoor Use Only
Operating Temperature ....................32° to 131°F (0° to 55°C)
Storage Temperature ...................... 23° to 176°F (-5° to 80°C)
Relative Humidity ...........................5 to 95% (non condensing)
Patent Pending

MOUNTING

WARNING: Do Not Install To Cover a Junction
Box Having Class 1, 3 or Power and Lighting
Circuits.
Lens Release
PIR Lens
Select
Con gure
Button LED
PIR Detection LED
Sensor Binding LED
Corner Mount
Occupancy
Sensor
J Box
Loads
1
Load/Line
(Class 1 wiring)
2
LMPW-101/102
Digital Lighting Management
PIR Occupancy Sensor
DLM Local Network
(low voltage, Class 2)
LMRJ Cables
Room
Controller
To
LMPW
Sensor
Switch
