Dual Technology Multi-Way Wall Switch Occupancy Sensor
DSW-301
SPECIFICATIONS
Voltages:
DSW-301 & DSW-302 .....................................120/277 VAC, 50/60 Hz
DSW-301-347 & DSW-302-347 ............................. 347 VAC, 50/60 Hz
Load Limits for relay 1:
@120 VAC..............1000-W tungsten, ballast, E-ballast, LED, 1/4 HP
@277 VAC.............................. 1200-W ballast, E-ballast, LED, 1/4 HP
@347 VAC............................................... 1500-W ballast, LED, 1/4 HP
Load Limits for relay 2:
@120 VAC................800-W tungsten, ballast, E-ballast, LED, 1/6 HP
@277 VAC.............................. 1200-W ballast, E-ballast, LED, 1/6 HP
@347 VAC............................................... 1500-W ballast, LED, 1/6 HP
Time Delay Adjustment ................................................... 5 to 30 minutes
Walk-Through Mode .......................3 minutes if no activity after 30 sec.
Test Mode ............................................... 10 min. with 5 -sec. time delay
PIR Adjustment .....................................................................High or Low
Ultrasonic Adjustment ..................................Minimum to Maximum, Off
Frequency ................................................................................ 40 kHz
Light Level Adjustment ........................................................ 8fc to 180+fc
Alerts ............................................................Selectable Audible & Visual
Optional Neutral......................................................................All models
Multi-Way Capability ...............................................................All models
Terminal screw torque ............................................ 16 lbf-in (18 kgf-cm)

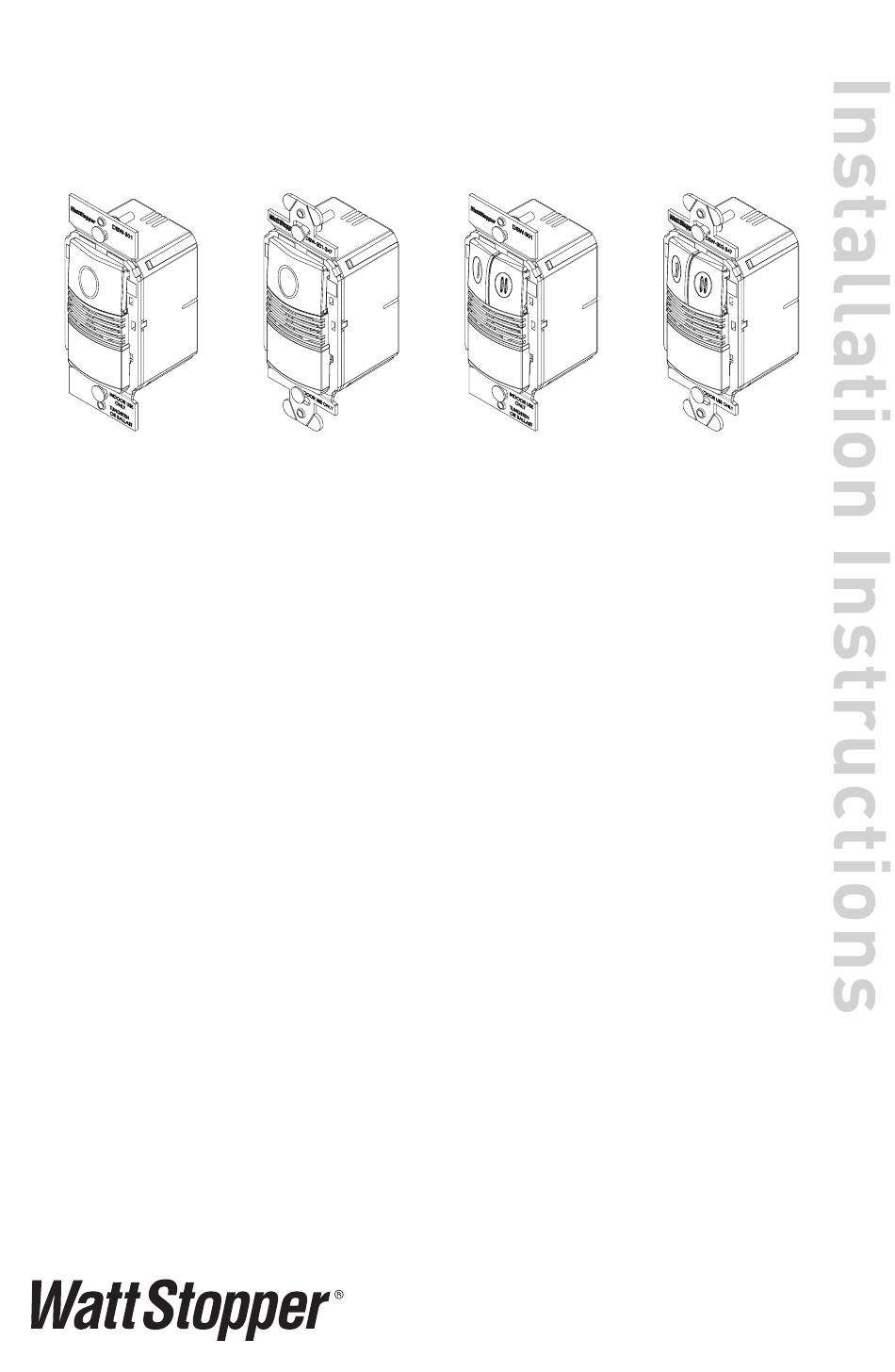

DSW-301/DSW-301-347
DSW-302/DSW-302-347
DSW-301-347
DSW-302
DSW-302-347
Advertisement
Table of Contents
Related Manuals for wattstopper DSW-301
Summary of Contents for wattstopper DSW-301
- Page 1 DSW-302-347 SPECIFICATIONS Voltages: DSW-301 & DSW-302 ........120/277 VAC, 50/60 Hz DSW-301-347 & DSW-302-347 ......347 VAC, 50/60 Hz Load Limits for relay 1: @120 VAC....1000-W tungsten, ballast, E-ballast, LED, 1/4 HP @277 VAC......1200-W ballast, E-ballast, LED, 1/4 HP @347 VAC..........1500-W ballast, LED, 1/4 HP Load Limits for relay 2: @120 VAC....800-W tungsten, ballast, E-ballast, LED, 1/6 HP...
-
Page 2: Unit Description And Operation
A “walk-through” mode can turn lights off after only 3 minutes if no activity is detected after 30 seconds following an occupancy detection. The DSW-301 has one relay and one ON/OFF button. The DSW-302 contains two relays and two ON/OFF buttons to allow control of one or two loads independently. -
Page 3: Presentation Mode
Model # Relay Default ON Mode DIP switch # Setting DSW-301 Manual ON DSW-302 Auto ON Manual ON Presentation Mode Presentation Mode is a feature of the Auto ON mode.When both relays are manually turned OFF the DSW holds the lights OFF until no motion has been detected for the duration of the Time Delay. -
Page 4: Pir Sensitivity Adjustment
Re-trigger: In Auto On Mode, after the load turns off, detection by the selected technology within the number of seconds indicated turns the lights back ON. If the load was configured as Manual ON, the re-trigger time is 30 seconds. Visit our website for FAQs: www.wattstopper.com... -
Page 5: Coverage Patterns
COVERAGE PATTERNS Coverage testing has been performed according to the NEMA WD 7 guideline. For best performance, use in spaces not larger than 18’ x 15’. PIR Sensor Major motion Major motion Minor motion Minor motion The sensor has a two-tiered, multi- Ultrasonic cell viewing Fresnel lens with 180 Coverage... -
Page 6: Reset To Default
ON. There is a delay due to initial power-up of the sensor that only occurs during installation. 5. Test and adjust the sensor if necessary. 6. Install industry standard decorator wall switch cover plate (not included). Visit our website for FAQs: www.wattstopper.com... - Page 7 Black Line Load Yellow Neutral Green (optional) Ground Neutral DSW-301 and DSW-301-347 Wiring Neutral Black Primary Line Black Primary Load Line 1 Yellow Blue Load Blue Yellow Secondary Brown Line 2 Secondary Brown Load Load Green Neutral Neutral Green (optional)
- Page 8 Black Black Load Yellow Yellow traveler Neutral Neutral Green Green (optional) (optional) Ground Ground Neutral Typical Wiring (DSW-301 or DSW-301-347 up to 4 sensors) Line Black Primary Black Load Blue Blue Yellow Brown Secondary Brown Load Green Green Neutral Neutral...
-
Page 9: Sensor Operating Modes
SENSOR OPERATING MODES Sensor #1 Sensor #2 Light Fixture Auto-ON Auto-ON The load turns ON and OFF automatically based on occupancy detection by either one of the sensors. The sensors keep the load ON until no motion is detected and will use the time delay of the sensor with the lowest value. -
Page 10: Dip Switch Settings
Tabs Button Hinges Ultrasonic Cones Detection LED Red = PIR DSW-302 shown. Green = Ultrasonic DSW-301 has a single button and PIR Lens the Ultrasonic sensitivity adjustment trimpot is in a slightly different position. Visit our website for FAQs: www.wattstopper.com... -
Page 11: Troubleshooting
TROUBLESHOOTING Lights do not turn ON with motion (LED does flash) 1. Press and release each button to make sure that the correct lights come ON for each relay. If the lights do NOT turn ON, check wire connections, especially the Load connection. If the lights turn ON, verify that the correct On Mode is selected in DIP switches 8 and 9. -
Page 12: Cover Plates
(5) years. There are no obligations or liabilities on the part of WattStopper for consequential damages arising out of or in connection with the use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation or reinstallation.
