Quick Links

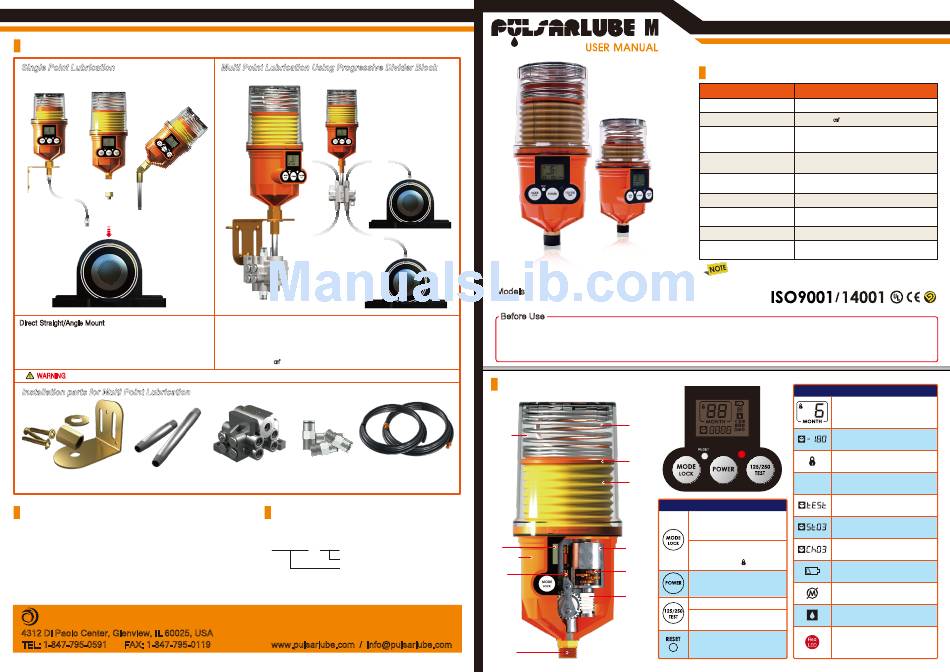

Available Mounting Options

Single Point Lubrication
Direct Straight/Angle Mount (with or without extension tube) is
always preferable. However, for applications not allowing any
direct mounts or extension mounts, remotely mount the unit
using a 6mm O.D. (1/4") pre-filled lube line.
WARNING
Keep the maximum distance per lube point at 6m (20ft) or less.
Installation parts for Multi Point Lubrication
Mounting Bracket Assembly
Extension Tube

Shelf Life and Product Warranty

The shelf life of each Pulsarlube M unit is 1 year from the date of production.
Product warranty is limited to original defects in material and workmanship
and will not cover any collateral damage due to mishandling, abuse and /or any
other inappropriate use of this product. Warranty period is 1 year from the date
of purchase.
Pulsarlube USA, Inc.
4312 Di Paolo Center, Glenview, IL 60025, USA
TEL: 1-847-795-0591
FAX: 1-847-795-0119
Multi Point Lubrication Using Progressive Divider Block
Remote multi point lubrication is available with the Pulsarlube M using
a divider block. It is recommended to test the back pressure of the bearing,
lube lines, and divider block after assembly using a grease gun connected to
a pressure gauge. Ensure the break-off pressure is below the average operating
pressure of 30kgf/㎠ (425psi).
Push-in One-touch
Empty & Pre-filled Nylon
Progressive Divider Block
Fitting
Tubing

How to Order

KLT125 / PL1
KLT250 / PL1
Grease Type
Pulsarlube Model #
(KLT125: 125cc, KLT250: 250cc)
www.pulsarlube.com / info@pulsarlube.com
Doc No. 1042-000 REV. 120600
Models

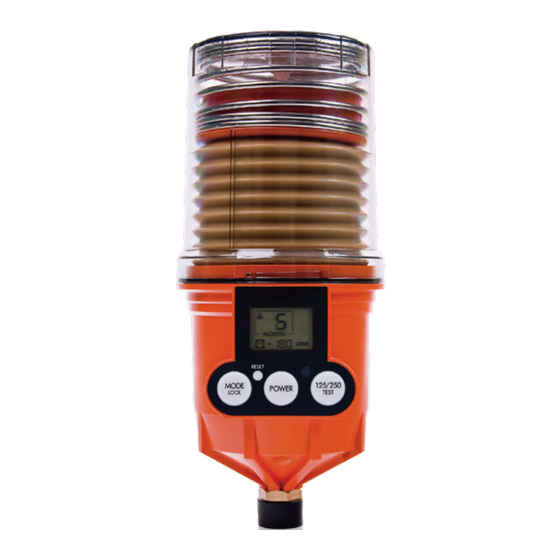

PULSARLUBE M 125/250cc Grease Lubricator

Before Use

Thank you for purchasing the Pulsarlube M, the electromechanical automatic grease lubricator from Pulsarlube USA, Inc.
To ensure the safe operation and proper installation of the Pulsarlube M unit, we strongly recommend that you read the
following information carefully before use.
If you require further information, please contact your local supplier or manufacturer.

Product Details

Pouch
Spring
Housing
Pouch
Plate
Grease
Pouch
Buttons
LCD
Motor
Main Body
Gear
Piston
Set
Worm
Gear
Connecting Thread
3/8"BSPT
High Performance Automatic Grease Lubricator

Specifications

Specifications
Description
Grease Pouch
125 / 250cc (replaceable)
Operating Pressure
30~60kgf/㎠ (425~850psi)
-15˚C ~ 60˚C (5˚F ~ 140˚F)
Operating Temperature
-40˚C ~ 60˚C (-40˚F ~ 140˚F) *
* with optional Lithium Battery Pack
125cc: Ø91mm (3.6") × 183mm (7.2")
Product Size
250cc: Ø91mm (3.6") × 210mm (8.2")
125cc: 860g (1.89 lb)
Weight
250cc: 1,050g (2.31 lb)
Available Dispensing Periods
Half (H), 1, 2, 3, 6 & 12 months
Installation Thread Size
3/8" Male BSPT
Multi Point
Up to 8 points
Up to 6m (20ft) using a 6mm (1/4") O.D.
Remote Installation
pre-filled lube line
Technical information is subject to change without notice.
/
LCD Display - Function
The dispensing period setting
125
250
OIL
The # of days remaining until the end
of lube cycle
The unit is in"Automatic Lock Out"
mode
125 / 250
Selected grease pouch capacity
The test mode is activated
Select the dispensing rate in
The # of days after dispensing has
ascending order: 1▶2 ▶ 3 ▶ 6 ▶
completed
12 ▶ Half (H)
The # of days on stand-by mode
Deactivate "Automatic Lock Out"by
due to excessive backpressure
pressing the MODE/LOCK button
until the lock icon ( ) disappears
Low battery power
Press the POWER button for 2
seconds to turn unit on or off
Excessive backpressure exists
Select the volume of grease pouch
Empty grease level
Run a test cycle by pressing the
TEST button for two seconds
Signal lamp blinks periodically
Reset the unit when the unit
when battery power is low, excessive
malfunctions and/or after changing
backpressure exists, or if grease
the service pack
level is empty
