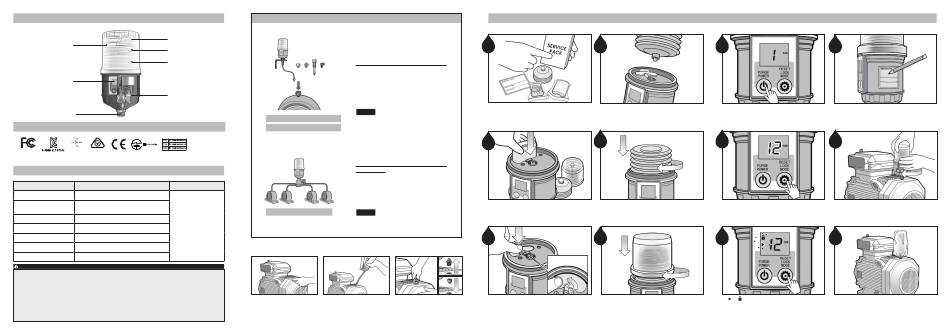

Pulsarlube LK-BT Series User Manual

Product Details
Pouch Spring
Housing
Pouch Plate
Grease Pouch
LCD
Main Body
Connecting Thread PT
3/8" Male
Certificates
KLT Co., Ltd.
型号(Model):
BT60 CMIIT ID: 2019DJ0846
BT120 CMIIT ID: 2019DJ0847
TA-2019/5127 BT240 CMIIT ID: 2019DJ1090
R C M - 0 0 1 3 1 1
APPROVED
เครื ่ อ งโทรคมนาคมและอุ ป กรณ์ น ี ้ ม ี ค วามสอดคล้ อ งตามมาตรฐานหรื อ ข้ อ กํ า หนดทางเทคนิ ค ของ กสทช.
Specifications
Specifications Description Note
Average Operating Pressure 30bar (435psi)
Standard Alkaline Battery : -15˚C~60˚C (5°F~140°F)
Operating Temperature
Optional Lithium Battery : -40˚C~60˚C (-40°F~140°F)
Product specifications
Available Dispensing Periods 1~12 months
may be subject to change
IP Code
IP65 for performance or quality
improvement without notice.
Bluetooth Specification BLE4.1 (Class 2)
App
Android 5.0 / iOS 7.0 or newer
WAS Explorer / Chrome
Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Mounting Methods
Single Point Installation
Direct Mount or Remote Installation using Extension Tube
For applications not allowing any direct mounts, remotely
mount the unit using appropriate accessories and keep
the distance from the lube point as short as possible. For
remote installation using a tube, use a Ø6 (1/4") tube pre-
filled with the same or compatible grease as the grease
contained in the unit.
NOTE Alkaline, Lithium Battery Applicable
Direct Mount Installation
Single Point Remote Installation
Multi-Point Installation
Multi-Point Remote Installation using Progressive Divider
Block (2~8 points)
Ensure the break-off pressure is below the average
operating pressure of .
30bar (435psi)
▶ For more information, please refer to the distributor
user manual. (Reference: Website > Service Menu >
Technical Information)
Multi-Point Installation NOTE Lithium Battery Applicable Only
Remove contaminants around the lube Ensure a clear passage by purging the Remove the grease nipple and install
point. lube point with a manual grease gun. appropriate adaptors.
(Use the same or compatible grease.)
Dispensing Setting Guidelines
1
4
Check the service pack capacity and components (battery pack, Purge the grease pouch until grease comes out of the tip and
grease pouch, dust cover, & label). install.
5
2
Remove the top housing, empty grease pouch, and used Carefully screw the grease pouch in by turning clockwise. Do
battery pack. Insert new battery pack. not over tighten.
3 6
Make sure the battery clamp is firmly locked. Refit the top housing on the unit and turn clockwise until it
clicks.
7 10
Press POWER button for 3 seconds to turn the unit on. (Check Attach the enclosed label to the lubricator and note the
LCD screen to make sure your purchased grease capacity.) installation date.
8 11
Press MODE button to select the dispensing period. Install the unit on the lube point. When the selected dispensing
period has completed, replace the Service Pack following
steps 2~6.
9 12
If ( + ) appear on LCD screen, dispensing period setting Install the dust cover over the lubricator for added protection.
is complete.
