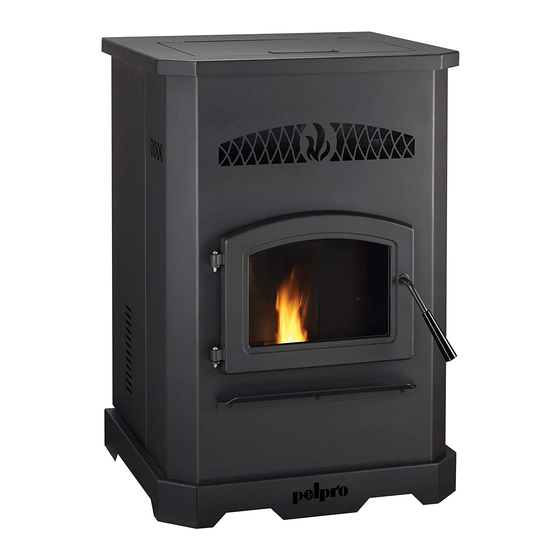

PP130 Pellet Stove
Owner's Manual
WARNING!
Please read this entire manual before installation and use of this pellet fuel-burning room Stove, and save for future reference.
Failure to follow these instructions could result in property damage, bodily injury or even death. Contact local building or fire
officials about restrictions and installation inspection requirements in your area.
Note: To obtain a French translation of this manual, please contact your dealer or visit www.pelprostoves.com. Pour obtenir
une traduction francaise de ce manuel, s'il vous plait contracter votre revendeur ou visitez www.pelprostoves.com

Advertisement

Table of Contents
loading

Related Manuals for Pelpro PP130

Summary of Contents for Pelpro PP130

  • Page 1 PP130 Pellet Stove Owner’s Manual WARNING! Please read this entire manual before installation and use of this pellet fuel-burning room Stove, and save for future reference. Failure to follow these instructions could result in property damage, bodily injury or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
  • Page 2 Indicates additional information to help you better understand your Stove and optimize its performance. NOTICE: Fire Risk PelPro disclaims any responsibility, and the warranty and agency listing will be voided, by the below actions. DO NOT: • Install or operate damaged Stove •...

  • Page 3: Table Of Contents

    73351 9/3/2013 OUTSIDE MATERIAL. NORMAL DIM & INSIDE MATERIAL. OUTSIDE APEX ADD LOGO, UPDATE BACKGROUND COLORING LABEL OPERATION AND MAINTENANCE • Warranty Reference Materials......... 34 • Service Part List • Maintenance Log PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 4: Getting Started

    Getting Started Pallet Removal Pallet Removal There are bolts holding your PelPro Stove in place Visit pelprostoves.com on the pallet. To remove your Stove from the pallet: or scan the code: Using a 5/16 inch wrench, Loosen the three on each side of the Stove retaining bolts on remove the two bolts.

  • Page 5: What You'll Need

    Stove. premium, low-ash pellets (<1%) less than 1.5” in length and avoid the dusty bits and pieces of pellets in the bottom of the bag. PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 6: Installing Your Stove

    Materials such as: • Wood • Sheet rock (drywall) • Carpet WARNING! Asphyxiation Risk. DO NOT INSTALL IN A SLEEPING ROOM. Consumes oxygen in the room. For Canada, the installation must conform to CAN/CSA-B365 PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 7 Listed double wall flue connector to Class A Listed metal chimneys, or masonry chimneys meeting International Conference of Building Officials (ICBO) standards for solid fuel Stoves. Installation Video Visit pelprostoves.com or scan this code: PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 8: Vent Termination Clearances

    • The safest and preferred venting method is to extend the vent vertically through the roof or above the roof PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 9: Placing Your Stove

    Back wall to pellet pipe Side wall to Stove Corner Installation Straight back against wall Inches Walls to Stove Horizontal Installations Straight back against wall Inches Back wall to Stove Side wall to Stove PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 10: Venting Your Stove

    • Your Stove will not draft properly that can build up a concentration of fumes such as a stairwell, • Smoke may seep in your house covered breezeway, etc. • Excessive sooting PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 11 Length of Horizontal Sections, (ft) Minimum Vertical Vent for Three Elbows Minimum Vertical Vent for Three Elbows Minimum Vertical Vent for Two Elbows Minimum Vertical Vent for Two Elbows PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com ELBOWS THREE 90° ELBOWS Vent...
  • Page 12 Wall, floor or ceiling cavity _____ Pipe joints are secure and properly sealed • Enclosed space such as an attic, garage or crawl space. _____ Outside air kit installed properly _____ Confirm termination clearances PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 13: Using Your Stove

    Your Stove has a manufacture-set minimum low burn rate that must not be altered. It is against federal regulations to alter this setting or otherwise operate your Stove in a manner inconsistent with operation instructions in this manual. PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 14: Starting Your Stove

    • CAREFULLY SUPERVISE children in same room as fireplace • Alert children and adults to hazards of high temperatures • High temperatures may ignite clothing or other flammable materials • Keep clothing, furniture, draperies and other flammable materials away PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 15 Ensure dial control is set in off position. WARNING! Shock hazard. • Plug directly into properly grounded 3 prong receptacle • Do NOT route cord under or in front of Stove • Recommend the use of a surge protector PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 16 Once primed, pellets will drop into the fire pot and the LED light will blink green as ignition starts. This process can take up to 20 minutes. CAUTION: During this process DO NOT: • Try to restart, manually add pellets or use any type of accelerant PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 17 Stove burning on HI for 30 minutes to allow paint to cure. After 30 minutes, turn the dial control to OFF and allow your Stove to cool completely. Once cooled, clean the fire pot. Your Stove is now ready to resume normal use. PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 18: Comfort Settings

    15 minutes for stabilization before making another adjustment. Thermostat Your PelPro Stove comes with a built-in thermostat system that provides easy temperature adjustments. The Stove is not designed to use a remote control or external thermostat.

  • Page 19: Turning Your Stove Off

    Turn dial control to OFF, let Stove completely cool and exhaust blower must be off. Now you can unplug Stove before servicing • Smoke spillage into room can occur if Stove is not cool before unplugging PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 20: Maintaining Your Stove

    What You’ll Need Cleaning tool Phillips head Safety glasses screwdriver Gloves Ceramic glass cleaner & Flue cleaning non-abrasive cloth brush Metal container Drop cloth Ash vacuum with lid PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 21: Where, When And How

    Apply ceramic glass cleaner • Use non-abrasive cloth to remove residue Door Inspection • The gasket between the glass and firebox should be inspected periodically to make sure there is a good seal. PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 22: Convection Blower

    Zone Zone • Vacuum any debris from the fan blades and Zone Zone blower housing Hopper • Empty hopper of any pellets • Vacuum any remaining pellets/debris from the hopper PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 23 Your chimney should be inspected once every few months during the heating season to determine if a creosote or soot buildup has occurred. If creosote or soot has accumulated, it should be removed to reduce the risk of a chimney fire. PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 24: Troubleshooting

    Unplug your Stove Zone Zone • Check all connections and power plugs are secure Zone Zone Zone Zone • Visually inspect wires, blowers and power cord to find cause of possible short circuit PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 25: Blockage Related

    - Confirm all exhaust blower connections secure - Confirm the feed assembly and motor are clean and clear of debris • Confirm exhaust path is clean and clear (Zone 3) PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 26 Confirm exhaust path is clean and clear (Zone 3) • Examine Stove body (Zone 2) - Align igniter so it is properly placed and centered - Review fuel quality (see Pellet Fuel information on page 13) PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 27 Follow corrective action for feed motor does not turn off symptom. Excessive fuel Excessive feeding/Feed Motor locked on Follow corrective action for feed motor does not turn spilling over the off. fire pot into the ash wells and/or excessive flame PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 28 Convection blower Review the fuel being used. Dirty Failed Clean Installation Replace Installation configuration is tight allowing for limited air circulation around the Stove. Review the installation and move if necessary. PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 29 5 Years All replacement parts are covered for remainder of 90 Days original warranty period or 90 days, whichever is longer Additional terms and limitations apply. See page 28 for complete warranty information. PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 30: Support

    • Order replacement parts • Installation videos • Troubleshooting videos • Use and care videos • Manuals and more To contact a Consumer Care Specialist, email us at Info_PelPro@hearthnhome.com or call 877-427-3316. PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 31: Note

    • The Stove must be secured to the mobile home structure by bolting it to the floor through holes provided at bottom of your cast legs on your Stove. PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...

  • Page 32: Glass Specification

    Listings and Certifications Glass Specifications This Stove is equipped with 5mm ceramic glass. Replace glass only with 5mm ceramic glass. Please contact PelPro for replacement glass. Electrical Rating (On High) PP130: 120 VAC, 60 Hz, Start 2.6 Amps, Run 2.3 Amps BTU &...
  • Page 33 Warranty Coverage: Subject to the table below, HHT warrants to the owner of the PelPro Stove that the Stove will be free from defects in materials and workmanship at the time of manufacture. After installation, if covered components are found to be defective in materials or workmanship during the applicable warranty period, HHT will replace the covered components.

  • Page 34: Reference Materials

    SRV7000-531 Vacuum Hose, 5/32 ID 3 Ft SRV240-0450 Side Curtain, Right Hand SRV7086-153 Dial Control SRV7083-036 Wire Harness, Dial Control SRV7000-667 Hopper Switch SRV7000-612 See Following page for additional servcie parts 2/18 PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 35 Feed Assembly Kit SRV7077-014 16.1 Feed Motor SRV7000-670 16.2 Feed Shaft Bushing Pkg of 2 7000-600/2 Power Cord 812-1180 Ambient Probe SRV7000-668 Exhaust Probe SRV7000-669 Wire Harness SRV7093-184 Wire Clip Pkg of 10 7000-400/10 PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 36 (Attach proof of purchase) Serial Number:___________________________Location on Stove: ________________ Store purchased from: ____________________________________________________ Store Location: _________________________________________________________ Maintenance Log: ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 37 Reference Materials Maintenance Log: ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 38 Reference Materials Maintenance Log: ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 39 Reference Materials Maintenance Log: ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
  • Page 40 Hearth & Home Technologies ® 352 Mountain House Road Halifax, PA 17032 PelPro Pellet Stove • 7086-171O • 2/20/18 pelprostoves.com...
