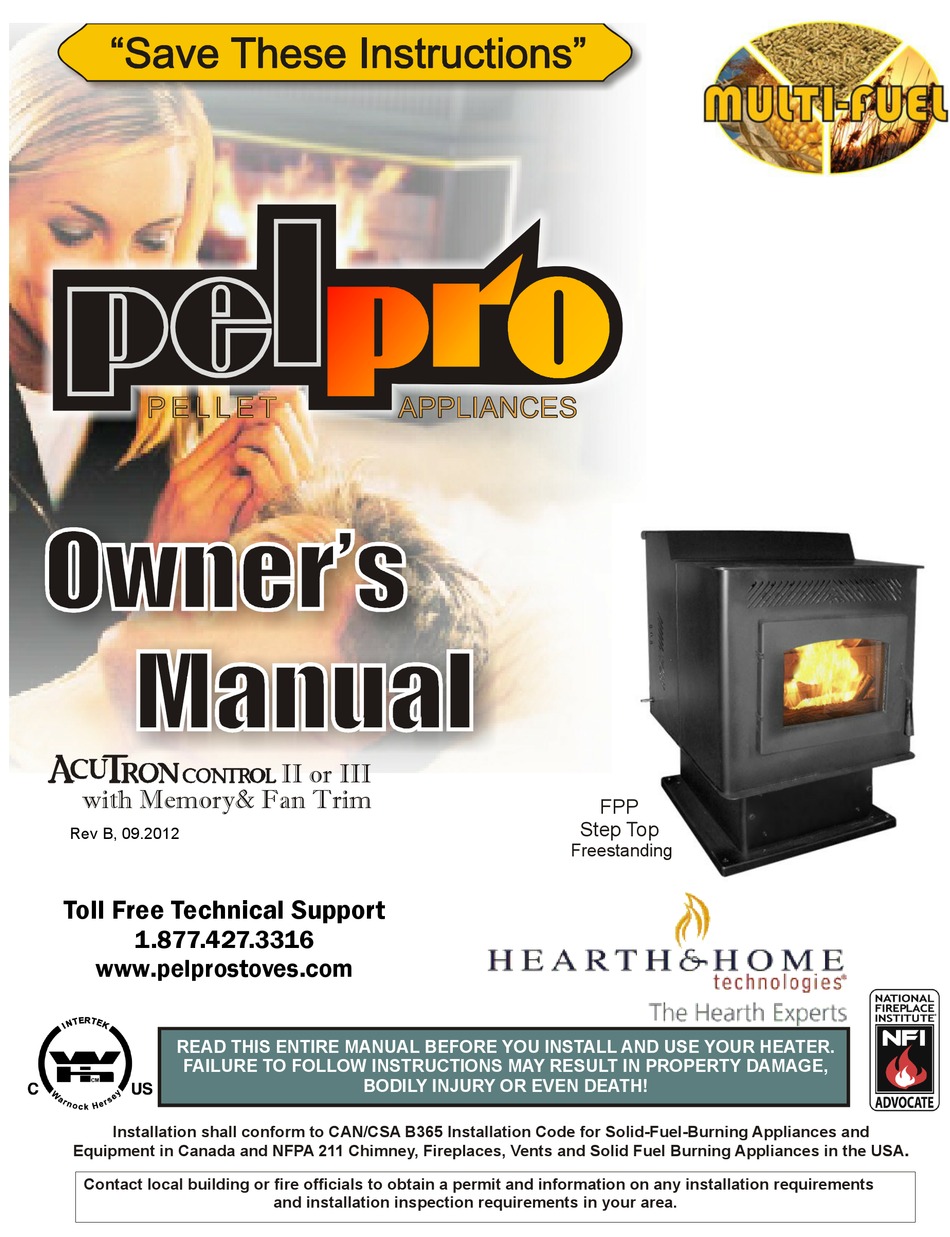

II or III
with Memory& Fan Trim
FPP
Step Top
Rev B, 09.2012
Rev. A, 01/2009
Freestanding
Toll Free Technical Support
Toll Free Technical Support
1.877.427.3316
1 - 866 - 456 -9269
www.pelprostoves.com
READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR HEATER.
FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY OR EVEN DEATH!
Installation shall conform to CAN/CSA B365 Installation Code for Solid-Fuel-Burning Appliances and
.
Equipment in Canada and NFPA 211 Chimney, Fireplaces, Vents and Solid Fuel Burning Appliances in the USA
Contact local building or fire officials to obtain a permit and information on any installation requirements
and installation inspection requirements in your area.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPP Step Top Freestanding and is the answer not in the manual?

Questions and answers

BRADLEY CAROLUS
January 20, 2025

auger light flashing

0

Subscribe to Our Youtube Channel

Related Manuals for Pelpro FPP Step Top Freestanding

Summary of Contents for Pelpro FPP Step Top Freestanding

  • Page 1 II or III with Memory& Fan Trim Step Top Rev B, 09.2012 Rev. A, 01/2009 Freestanding Toll Free Technical Support Toll Free Technical Support 1.877.427.3316 1 - 866 - 456 -9269 www.pelprostoves.com READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE YOUR HEATER. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH! Installation shall conform to CAN/CSA B365 Installation Code for Solid-Fuel-Burning Appliances and...
  • Page 2 Remember that a very high percentage of operational dilemmas with a pellet stove are usually traced back to improper installation, poor quality fuel and/or lack of timely cleaning. With just a minimum of daily care your PELPRO multi-fuel appliance will provide years of clean, efficient, comfortable and environmentally sound heating.
  • Page 3 TEP BY STEP DIRECT VENT INSTALLATION NSTALLATION OPTIONS OBILE OME NSTALLATION PERATION EFORE IGHTING IRST SING THE CUTRON ONTROLS HOOSING ODE OF PERATION ANUAL HERMOSTAT ODES OPTIONAL NDERSTANDING CUTRON ONTROL IGHTING A USING WOOD PELLETS ERFORMANCE NHANCEMENT ELLETS ORN AND OTHER IOMASS PelPro Appliances www.pelprostoves.com...
  • Page 4 CAUTION: To prevent fingers, clothing or other objects from coming in contact with the auger; your appli- ance is equipped with a shutoff switch which stops the auger when the hopper lid is open. THE AUGER IS CAPABLE OF CAUSING SERIOUS INJURY AND THIS SWITCH MAY NOT BE DISCONNETED. PelPro Appliances www.pelprostoves.com...
  • Page 5 AVERTISSEMENT: LES PIÈCES CHAUDES NE FONCTIONNENT PAS AVEC LE PANNEAU MANUFACTURED BY: DATE OF MFG. / DATE OF FABRICATION OUVERT . FABRIQUE PAR: DANSONS INC. EDMONTON, AB, CANADA INDUSTRIES CANADIENNES DE CONFORT; EDMONTON, AB, CANADA 1-877-303-3134 VAILLEZ À NE PAS ENLEVER NI À DISSIMULER CE COLLANT PelPro Appliances www.pelprostoves.com...
  • Page 6 ORKS PPLIANCE ORKS The operations and maintenance of your PelPro SERIES biomass appliance are unique and should not be considered to be like a wood, coal, gas, electric, propane or oil heater, stove or appliance. Cautions Do not try to operate your stove with viewing door open. Pellets will not feed under these circumstances and a safety concern may arise from sparks or fumes entering room.

  • Page 7: Vacuum Switch

    / Exhaust Fan Side AcuTron Wiring Harness If the power does go out, the pellet appliance will stop running. When the power comes back on, the stove will remember the function it was performing and return to that function. PelPro Appliances www.pelprostoves.com...

  • Page 8: Heating Specifications

    20%. Use PFI listed fuel for best results. DIMENSIONS PRODUCT IS SUBJECT TO CHANGE WITHOUT NOTICE. PelPro Series FPP4STBD Freestanding Pelpro Multi-Fuel Step Top Model : FPP ELECTRICAL SPECIFICATIONS Electrical Rating = 115 Volts 60 HZ 2.0 Amps...
  • Page 9 NSTALLATION HECK Unless you are knowledgeable and experienced in stove installation, we recommend your PelPro series heater receive a Pre-delivery Check and be installed by your local Specialty Retailer or Certified HVAC Service Depot. COMPLETE THIS CHECK LIST PRIOR TO INSTALLING YOUR MULTI-FUEL APPLIANCE: _____ Carefully read this "Owners Manual‖.

  • Page 10: Pellet Vent Type

    It is strongly recommended that the exhaust system be terminated on the prevailing wind side of the home. Appliance may not be placed in, or vented through a gas fireplace. PelPro Appliances www.pelprostoves.com...
  • Page 11 The diagram to the right will help to give you a visual reference. To achieve optimum 10‘ performance, keep vent runs as short as possible. Especially on horizontal installations. 5‘ 0‘ 5‘ 10‘ 0‘ PelPro Appliances www.pelprostoves.com...

  • Page 12: Vent Termination Clearances

    Minimum 3’ above a gas meter/regulator within 3’ horizontally of the vertical centre line of regulator. Minimum 6’ clearance to a gas service regulator vent outlet. Minimum 1’ clearance under veranda, porch, deck or balcony. Permitted only if structure is fully open on a minimum of two sides beneath the floor. PelPro Appliances www.pelprostoves.com...
  • Page 13 15‖ length, extends to 30‖ – 36‖ compressed 4’ length, extends to 120‖ 2 – 2‖ Worm Gear Clamps 2 – 2‖ Worm Gear Clamps NOTE: Available from your local Authorized Dealer or Hearth & Home Technologies 1-877-427-3316 PelPro Appliances www.pelprostoves.com...

  • Page 14: Stove Placement

    If this space is unavailable, a provision must be made to enable sliding the appliance out. CLEARANCES - ―STRAIGHT INSTALLATION‖: HROUGH NTERIOR ERTICAL 12‖ 3‖ 1‖ 2‖ 10‖ 6‖ 6‖ 6‖ 6‖ 6‖ 6‖ 6‖ PelPro Appliances www.pelprostoves.com...

  • Page 15: Alcove Installation

    (Figure 14 & 15) 2 inch from back of appliance 6 inches from the sides 16 inches from the top 30 inches deep LCOVE HROUGH 12‖ 16‖ 1‖ 2‖ 10‖ 6‖ 6‖ 6‖ 6‖ Figure 14 Figure 15 PelPro Appliances www.pelprostoves.com...
  • Page 16 EQUIRED OOLS EQUIRED Before starting your Pelpro Multi-Fuel install, we recommended you have the following list of tools ready. This is not an exhaustive list, but should go along way in making your installation easier. Power Tools Shop Vacuum WITH Filter...
  • Page 17 Note: The end of the exhaust pipe must extend a minimum of 12‖ from the outside of the building. Note: Most horizontal, through the wall installations may require a Clean-out Tee and minimum 3’ vertical rise of pipe, inside or outside the building. See Next Page. PelPro Appliances www.pelprostoves.com...
  • Page 18 6‖ Outside Air may be obtained from a suitable duct passing through the ash clean-out opening. Ensure the chimney top is properly sealed to prevent intrusion of weather and down drafts with suitable flashings, collars, and sealants. PelPro Appliances www.pelprostoves.com...
  • Page 19 THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, CEILING/ROOF MUST BE MAINTAINED! Your PelPro SERIES appliance has been tested and listed for mobile home installation. It may be installed in a mobile home as a "Free Standing Stove" or a "Hearth Stove", see detailed install and clearance requirements in these sections as they imply there.
  • Page 20 Rotate the handle to the 5 0’clock position to lock. SEATING THE BURN GRATE: Ensure the Multi-Fuel Burn Grate is properly seated in the burn pot and holes are free from obstructions . Dia. #2 PelPro Appliances www.pelprostoves.com...
  • Page 21 MODE OF OPERATION SELECTION - All 3 modes of running the control are now activated by using the OFF button to program. (More detail to follow in this section) FAN TRIM—Allows for fine tuning of the exhaust fan, at the Lower (#1) Feed Rate. This aids in adjusting for fuel, eleva- tion, venting and heating requirements PelPro Appliances www.pelprostoves.com...
  • Page 22 - The AUGER CYCLE LED will go solid for 3 seconds, indicating signal is being sent to the Auger motor. - Combustion (exhaust) fan will start and operate at full speed for 60 seconds, then the Voltage regulator will adjust fan PelPro Appliances www.pelprostoves.com...
  • Page 23 For optimum heat transfer, the FAN setting should be set at LOW or MEDIUM. The appliance will run the FAN at HIGH speed when needed, automatically. TO SHUT DOWN To turn off the appliance press the OFF touch pad. PelPro Appliances www.pelprostoves.com...
  • Page 24 LOW & MED will both be solid when the next highest speed is selected and so on. .When the FEED RATE is set to a higher position, the FAN SPEED should be set higher and visa versa. PelPro Appliances www.pelprostoves.com...
  • Page 25 CAUTION: Never use liquid or volatile fire starters to start a fire in your stove! Do not in-stall or operate your stove in any room where any liquid or volatile fuels or any other highly combustible items are in the air or stored in the room. These could cause a safety hazard. PelPro Appliances www.pelprostoves.com...
  • Page 26 This will help in finding the right location again if the damper gets moved or adjusted accidently. NOTE: The best way and only way to set the Air Inlet Damper is at the FUEL SETTING #4. PelPro Appliances www.pelprostoves.com...
  • Page 27 As the heat output of various quality wood pellets differ, so will the performance and heat output of your appliance. PELLET QUALITY Your Pelpro stove, with its standard ―Multi-Fuel Grate‖, is designed to burn PFII, "Premium" or "Standard" quality wood pellets along with corn and grain or combinations . Pellets that are soft, contain...
  • Page 28 Pellets, Corn or Grain with excessive dust or fines may be screened to remove most of the fines. Screeners using a 3/16‖ mesh screen may be built or purchased from most Dealers. PelPro Appliances www.pelprostoves.com...
  • Page 29 Conduct maintenance on a COLD appliance only. Proper care of your Pelpro pellet appliance is required for peak, sustained performance. The need for and frequency of cleaning depends on the amount of pellets burned, pellet quality, length of time since last clean- ing and the quality of the fire.
  • Page 30 The #1 reason for a service call or unit failing is: FAILURE TO DO SIMPLE PERIODIC MAINTENANCE. With proper cleaning and the use of quality pellets, your PelPro Series appliance requires very little maintenance. However, the following periodic maintenance is strongly recommended.
  • Page 31 The exhaust system should be thoroughly cleaned. Disassemble the EXHAUST FAN and CONVECTION FAN and clean off the internal fan blades. Once you are finished, unplug the appliance for added electrical protection. PelPro Appliances www.pelprostoves.com...
  • Page 32 The motor only runs for 3 seconds at a time. *When did the stove stopping feeding? During the last use or when you went to start this time. Last use—Check for possible jam, clean out drop chute area. PelPro Appliances www.pelprostoves.com...
  • Page 33 *Check on quality or amount of fines found in the fuel and hopper. *Check the moisture content. *Try different brand or different batch. 4. Room or Home *Check air flow patterns, amount of insulation, Location, size of room, ceiling heights and obstructions. PelPro Appliances www.pelprostoves.com...
  • Page 34 *Confirm mode of operation 2.Wall Thermostat *Ensure wall thermostat is turn down below the room temperature.(Thermostat On/Off Mode) *Unit will not shut off in the (Thermostat Low/ High mode). You must press the OFF touch pad. PelPro Appliances www.pelprostoves.com...
  • Page 35 Gasket—Door KS5060-1150 Gasket—Window KS5060-1200 Gasket—Ash Pan KS5060-1190 Gasket—Exhaust KS5070-1210 Glass—Neo-Ceramic KS5030-1060 Igniter Assembly—Freestanding KS5100-1340 Switch—L120 KS5100-1330 Switch—F140 KS5100-1330 Switch—L250 KS5090-1290 Switch—Vacuum Switch—Hopper Lid KS5110-1350 Wire Harness—Main AcuTron SEE YOUR “PelPro” DEALER FOR ADDITIONAL INFORMATION OR TO ORDER. PelPro Appliances www.pelprostoves.com...
  • Page 36 IMITED ARRANTY The PELPRO wood pellet appliance, carries a five (5) year limited warrant for from the date of sale to the original owner against defects and workmanship on all steel parts, (excluding the burn grate), and one (1) year on electrical components. There specifically is no warranty on the paint, glass, burn grate, fire brick and all gaskets or against damage caused from corrosion.
