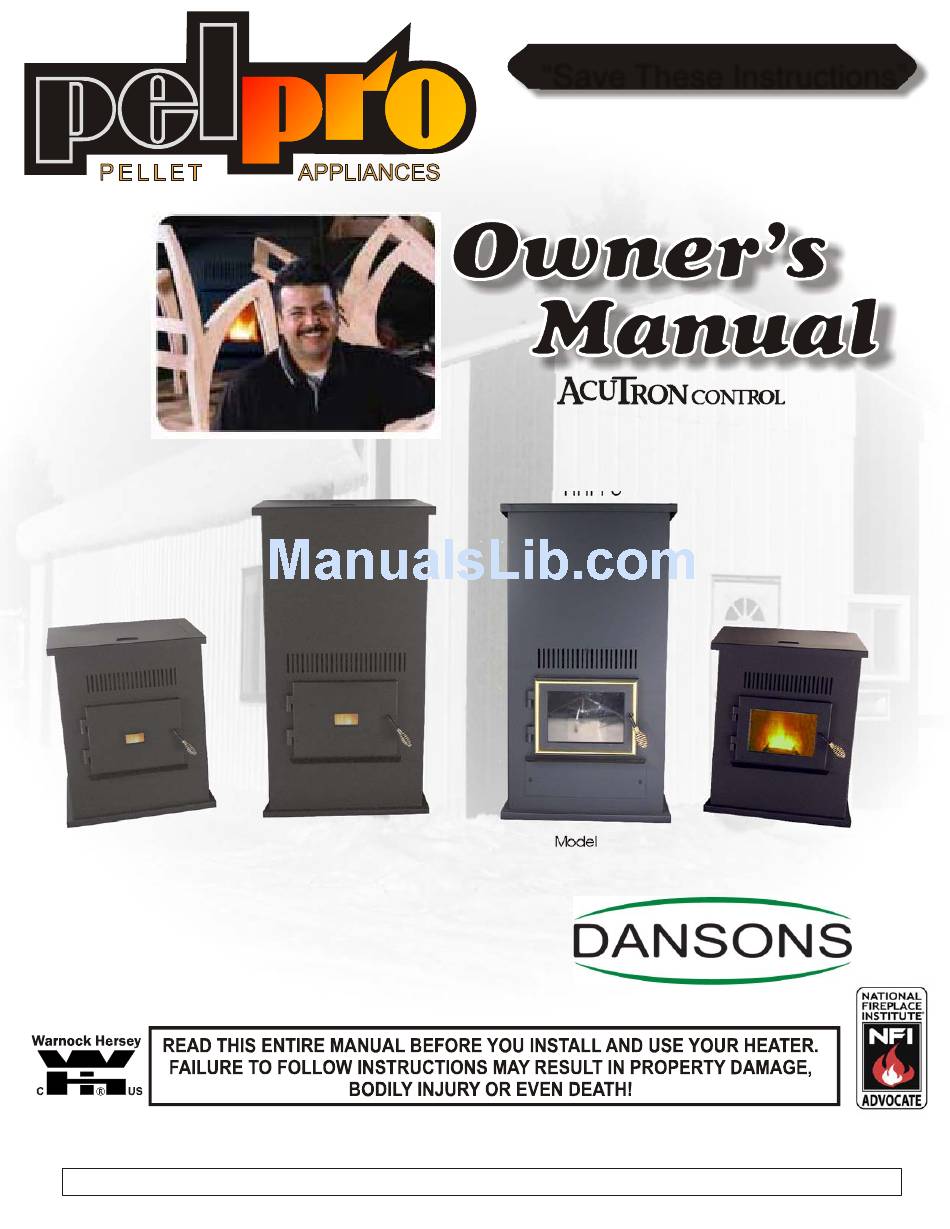

"Save These Instructions"
II or III
with Memory& Fan Trim
HSPP3
HHPP3
HSPP2
HHPP2
Model
Model
Model
Model
C C 2
C C 1
C C 1
C C 2
Toll Free Technical Support
1 - 866 - 456 -9269
www.dansons.com/support
To register your purchase
Installation shall conform to CAN/CSA B365 Installation Code for Solid-Fuel-Burning Appliances and
.
Equipment in Canada and NFPA 211 Chimney, Fireplaces, Vents and Solid Fuel Burning Appliances in the US
Contact local building or fire officials about restrictions and installation inspection requirements in your area.
Advertisement
Table of Contents
Related Manuals for Pelpro HHPP2
Summary of Contents for Pelpro HHPP2
- Page 1 “Save These Instructions” II or III with Memory& Fan Trim HSPP3 HHPP3 HSPP2 HHPP2 Model Model Model Model C C 2 C C 1 C C 1 C C 2 Toll Free Technical Support 1 - 866 - 456 -9269 www.dansons.com/support To register your purchase Installation shall conform to CAN/CSA B365 Installation Code for Solid-Fuel-Burning Appliances and...
- Page 2 Dear Pellet Stove Owner: PELPRO CONGRATULATIONS on the purchase of your PELPRO Multi-fuel pellet appliance! have selected the finest in residential wood pellet heating technology. Let us pass on a few "tips" concerning installing your stove and heating with wood pellets. 1.
- Page 3 ABLE ONTENTS ABLE ONTENTS ENERAL NFORMATION AINTENANCE AFETY RECAUTIONS EQUIRED OUTINE LEANING AFETY ESTING DAYS OR EEKLY PPLIANCE ORKS ERIODIC AINTENACE UTOMATIC AFETY EATURES EASONAL SEASONAL PECIFICATIONS TART LECTRICAL EQUIREMENTS PRING LANNING EARLY AINTENANCE ONTRACTS ROUBLE HOOTING & I LANNING NSTALLATION HECKLIST EPLACEMENT...
- Page 4 AFETY RECAUTIONS AFETY RECAUTIONS IMPORTANT: Read, save and follow the instructions in this manual. It contains important safety, operating and maintenance instructions you will need. RECOMMENED: For your and your families protection and well being, Dansons’ highly recommends installing and maintaining both a smoke detector as well as a CO2 detector. •...
- Page 5 • DO NOT operate the stove if the flame becomes dark and sooty or if the firepot overfills with pellets. Push the OFF Touch Pad and inspect the heater. (See Operating Your Stove). Soot or creosote may accumu- late in the exhaust vent system when the stove is operated under incorrect conditions such as an ex- tremely rich burn.
- Page 6 PPLIANCE ORKS PPLIANCE ORKS The operations and maintenance of your PelPro Series of multi-fuel appliance are unique and should not be considered to be like a wood, coal, gas, electric, propane or oil heater, stove or appliance. Cautions Do not try to operate your stove with viewing door open. Pellets will not feed under these circumstances and a safety concern may arise from sparks or fumes entering room.
-
Page 7: Vacuum Switch
UTOMATIC AFETY EATURES UTOMATIC AFETY EATURES L120 LOW LIMIT SWITCH This limit switch is mounted on the exhaust blower housing and has 2 main functions: Should the fire happen to go out, for any reason, this limit switch will shut the stove off when the exhaust temperature drops below 120°... -
Page 8: Heating Specifications
PECIFICATIONS PECIFICATIONS HEATING SPECIFICATIONS Approx. Heating capacity (sq. feet) * 800 – 2,000 Approx. Fuel burn rate per hour ** 1.5 – 5 lbs Hopper Capacity - Home 120 120 lbs Approx. Burn time at lowest setting 90 hrs Hopper Capacity – Home 300 300 lbs. - Page 9 & I & I LANNING NSTALLATION HECK LANNING NSTALLATION HECK Unless you are knowledgeable and experienced in stove installation, we recommend your PelPro Appliance receive a Pre-delivery Check and be installed by your local Specialty Retailer, NFI (National Fireplace Institute) Pellet Specialist (USA) or WETT Certified Installer (CAN) .
-
Page 10: Pellet Vent Type
— — LANNING XHAUST YSTEMS LANNING XHAUST YSTEMS PELLET VENT MUST MAINTAIN A MINIMUM 3” CLEARANCE TO ANY COMBUSTIBLE (INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER). DO NOT CONNECT THE PELLET VENT TO A VENT SERVING ANY OTHER APPLIANCE OR STOVE. - Page 11 — — LANNING XHAUST YSTEMS LANNING XHAUST YSTEMS … … CONTINUED CONTINUED DETERMINE VENTING SIZE AND DISTANCE: It is recommended that the vent system be installed with a minimum of three (3’) of vertical rise above the appliance exhaust port. Equivalent Vent Length (EVL) is the method of determining vent sizes and lengths, that takes into account the effect of different component parts on air flow.
-
Page 12: Vent Termination Clearances
— — LANNING XHAUST YSTEMS LANNING XHAUST YSTEMS … … CONTINUED CONTINUED PELLET VENT TERMINATION: (Figures 7 & 8) Termination must be a minimum of 12” above the chase cap (B) (note: the chimney must meet local codes for height above the roof or other obstructions) Must have an approved cap (G) (to prevent water from entering) or a 45* elbow downturn (F) If the termination is located on a windy side of... - Page 13 — — LANNING UTSIDE LANNING UTSIDE Outside air is REQUIRED ON ALL MOBILE HOME INSTALLATIONS. Outside air is strongly recommended for all other installations. Failure to install intake air may result in improper combustion as well as the unit smoking during power failures. Metal pipe, ONLY, either solid or flexible, must be used in all outside air installations.(B) NOTE: Non-metallic material, such as PVC or ABS MUST NOT BE USED for outside air installations.
-
Page 14: Floor Protection Requirements
— & C — & C LANNING ROTECTION LEARANCES LANNING ROTECTION LEARANCES STOVE PLACEMENT: Stove must be placed so that no combustibles are within, or can swing within (i.e. drapes doors), 36” of the heater. Keep in mind the following placement concerns; venting obstructions, outside air, electrical outlet, wall thermostat, heat distribution, traffic patterns and room use/size. -
Page 15: Alcove Installation
— & C — & C LANNING ROTECTION LEARANCES LANNING ROTECTION LEARANCES . . . C ’ . . . C ’ CLEARANCES – “CORNER INSTALLATION”: 45 C ORNER 45 C HROUGH ORNER 12” NTERIOR ERTICAL 2” 10” 10” 6” 6”... - Page 16 OOLS EQUIRED OOLS EQUIRED Before starting your PelPro Multi-Fuel install, we recommended you have the following list of tools ready. This is not an exhaustive list, but should go along way in making your installation easier. Power Tools Shop Vacuum WITH Filter Jigsaw or Reciprocating saw Electric drill Extension cord...
- Page 17 — — NSTALLATION REESTANDING NSTALLATION REESTANDING THROUGH THE WALL, DIRECT VENT INSTALLATION. (Figure 18) (not preferred) Select the location for your stove, design the 12” exhaust system and determine the brand and size of "PL" vent to be used. Position the floor pad. 1”...
- Page 18 OBILE NSTALLATION OBILE NSTALLATION CAUTION: DO NOT INSTALL STOVE IN SLEEPING ROOM THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, CEILING and ROOF MUST BE MAINTAINED! PelPro Series Your appliance has been tested and listed for mobile home installation. It may be installed in a mobile home as a "Free Standing Stove"...
- Page 19 REESTANDING NSTALLATION REESTANDING NSTALLATION . . . C ’ . . . C ’ These styles of installation are highly recommended, due to possible backpressure in the exhaust caused by airflow around the outside of the structure, snow build-up, or power failure, etc.. These designs will improve venting performance and provide natural draft to help evacuate smoke from the appliance in case of power failure.
- Page 20 REESTANDING NSTALLATION REESTANDING NSTALLATION . . . C ’ . . . C ’ Main Floor - Class A Tie-In Main Floor - Tie-In Claytile Flue 24” Pipe Adapter 1 “PL” Pipe Adapter Clean Out Tee & Cap “PL” Clean Out Tee & Cap 3 x 60”...
- Page 21 PERATING NSTRUCTIONS PERATING NSTRUCTIONS COMPLETE THE CHECK LIST (Page 9) PRIOR TO LIGHTING YOUR FIRST FIRE FOLLOW THE ARROWS TO START YOUR APPLIANCE FOR THE FIRST TIME IT IS CRITICAL FOR THE CORRECT OPERATION OF YOUR STOVE THAT THE FOLLOWING STEPS BE PERFORMED! A pellet stove, like most things is life is NOT a plug and play appliance.
- Page 22 PERATING NSTRUCTIONS PERATING NSTRUCTIONS FILL THE HOPPER WITH FUEL: Open the hopper lid by placing your fingers in the recessed handle on the hopper lid and lifting upward. Lift the lid until the lid is fully open, toward the back of the stove, and stays open by itself.
- Page 23 PERATING NSTRUCTIONS PERATING NSTRUCTIONS IMPORTANT: If at anytime your appliance does not seem to be operating as it had, ALWAYS confirm the mode of operation. CHOOSE MODE OF OPERATION: Decide on mode of operation: STEP 1 Manual Operation Thermostat On/Off Thermostat Low/High Find mode of operation: STEP 2...
- Page 24 PERATING NSTRUCTIONS PERATING NSTRUCTIONS TO START … con’t After Pushing the START touch pad: The appliance will automatically start in the #1 or low feed rate, no matter where you set it. When the FEED RATE LED is flashing FAST, this indicates the unit has not reached 120°...
- Page 25 PERATING NSTRUCTIONS PERATING NSTRUCTIONS OPERATING IN THERMOSTAT ON / OFF Feed Rates 1 & 2 (Flashing 1 & 2) This also requires purchasing the optional “Wall Thermostat Add-on Kit” This mode of operation is best suited for those “Take Off The Chill” nights of spring, summer , fall..
- Page 26 — — PERATING NSTRUCTION IGHTING PPLIANCE PERATING NSTRUCTION IGHTING PPLIANCE Before lighting a fire check to ensure the Burn Grate is clean and adjusted and the Ash Tray is not full. For safety reasons use extra caution when lighting a stove that is HOT! Lighting stove manually (No Igniter) Lighting stove with Auto-Ignitor In the NON-Thermostat Mode...
- Page 27 — — PERATION ERFORMANCE NHANCEMENTS PERATION ERFORMANCE NHANCEMENTS IT IS CRITICAL FOR THE CORRECT OPERATION OF YOUR STOVE THAT THE BURN GRATE, AIR INLET DAMPER, AND 1 & 4 FUEL RATE BE SET CORRECTLY! HIGH QUALITY FIRE should burn with a brisk, vibrant, yellow to white color flame. When watching the fuel burn in the grate, you should see a slight movement.
- Page 28 — — PECIFICATIONS ELLETS PECIFICATIONS ELLETS The performance of your pellet appliance is greatly affected by the type and quality of wood pellets burned. As the heat output of various quality wood pellets differ, so will the performance and heat output of your appliance.
- Page 29 — — PECIFICATIONS HELLED PECIFICATIONS HELLED The performance of your multi-fuel burning appliance is greatly affected by the type, quality, moisture content and consistency of the shelled corn burned. As the heat output of various quality corn differ, so will the performance and heat output of your appliance. CORN QUALITY Your PelPro Series appliance, with its “Super Grate”, is designed to burn only dry, clean, quality shelled corn, up to a 50/50 mixture with wood pellets...
- Page 30 — — AINTENANCE OUTINE LEANING AINTENANCE OUTINE LEANING WARNING: Regular maintenance must be conducted for safe and efficient operation. Disconnect power to the stove if maintenance requires the opening of service panels. Conduct maintenance on a COLD appliance only. Proper care of your PelPro SERIES pellet appliance is required for peak, sustained performance. The need for and frequency of cleaning depends on the amount of pellets burned, pellet quality, length of time since last cleaning and the quality of the fire.
- Page 31 — — AINTENANCE ERIODIC LEANING AINTENANCE ERIODIC LEANING 1 TON, SEASONAL OR BI-SEASONAL The #1 reason for a service call or unit failing is: FAILURE TO DO SIMPLE PERIODIC MAINTENANCE. With proper cleaning and the use of quality pellets, your PelPro Series appliance requires very little maintenance.
- Page 32 — — AINTENANCE ERIODIC LEANING AINTENANCE ERIODIC LEANING FAN MOTORS: C lean the in-take on CONVECTION (ROOM AIR) fan as well as the air holes on the motors of both COMBUSTION and CONVECTION fans annually. FRESH AIR INTAKE: Inspect periodically to be sure that it is not clogged with any foreign materials. A plugged screen will restrict or shut off combustion air and cause a fire to die or burn poorly.
- Page 33 EARLY AINTENANCE EARLY AINTENANCE SERVICE CONTRACTS Many Dansons Authorized Dealers as well as NFI or WETT Certified Pellet Specialists offer yearly customer service contracts. The advantages of these are they establish an ongoing, mutually beneficial relationship with a qualified service technician. Many will offer an end of the season service such as a through cleaning and equipment inspection and repair or replacement, if necessary.
- Page 34 ROUBLE HOOTING ROUBLE HOOTING PROBLEM CAUSE SOLUTION 4. Air Inlet Damper setting *Check for proper setting. Too much air or not Stove Will Not Start enough air will effect starting time. (cont….) *Check for blockage in the air intake connector and fresh air intake.
- Page 35 ROUBLE HOOTING ROUBLE HOOTING PROBLEM CAUSE SOLUTION 1. Insufficient combustion air. *Adjust the air inlet damper. Fire burns with a yellow *Check for blockage of air intake both inside as flame. Fuel builds up in well as outside. the burn grate. Window *Confirm proper placement of burn grate.
- Page 36 PTIONAL CCESSORIES PTIONAL CCESSORIES OPTIONAL ITEMS Part No. Description KS5150-1450 Fresh Air Intake Kit 3’ KS5150-1460 Fresh Air Intake Kit 10’ Hopper Extension—12” KS5130-1480 KS5130-1490 Hopper Extension– 24” KS5120-1370 Wall Thermostat Kit Assembly—F REPLACEMENT ITEMS Part No. Description Auger Motor Assembly KS5010-1010 KS5010-1020 Auger Shaft Assembly...
- Page 37 CCESSORIES CCESSORIES Hopper Clean-Out Drop Chute You would have found this along with your Owner’s Manual, Allen –Key, exhaust gasket and inspection card. This can have two purposes. The main one is to be an attachment to the side of the hopper to help with cleaning out the hopper.
- Page 38 IMITED ARRANTY IMITED ARRANTY The PelPro SERIES wood pellet appliance, carries a five (5) year limited warrant for from the date of sale to the original owner against defects and workmanship on all steel parts, (excluding the burn grate), and one (1) year on electrical components.
- Page 39 & M & M ERVICE AINTENANCE ERVICE AINTENANCE ’ EALER URCHASER DDRESS DDRESS TATE TATE /PC: ONTACT HONE HONE URCHASE NSTALL NSTALLED TOVE ODEL ERIAL UMBER URNED PECIAL OMMENTS ERVICE ECHNICIAN ESCRIPTION OF WORK DONE Toll Free Technical Support 1-877-303-3134 PelPro Home &...
