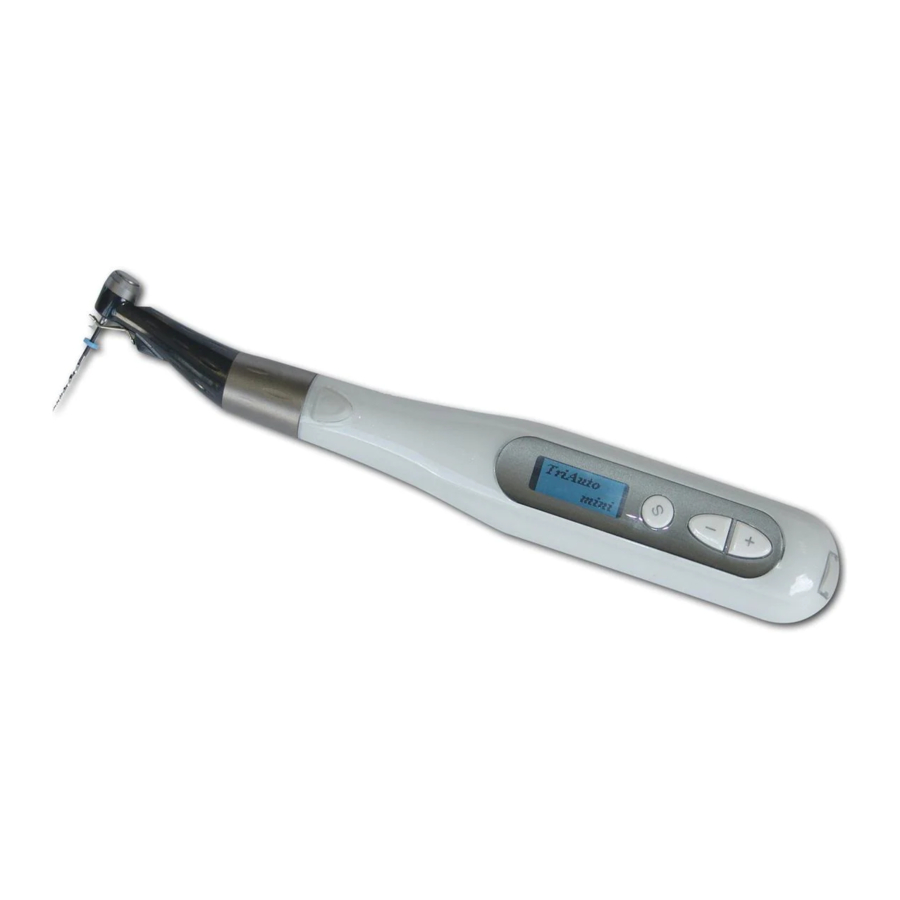

- Page 1 Cordless endodontic treatment motorized handpiece Tri Auto mini Operation Instructions (TR-CM)
-
Page 2: Table Of Contents
C o n te n ts Warnings and Prohibition ....................5 Features..........................6 Parts Identification and Accessories ................. 7 Usage ............................ 8 (1) Before Use ..........................8 Charge Battery ............................8 Connect Contra Angle ..........................9 File Installation ............................10 Check Operation ............................11 (2) Operation .......................... - Page 3 Safety and Accident Prevention for the Operation of Electrical Medical Devices ..36 Thank you for purchasing the Tri Auto mini. For optimum safety and performance, read this manual thoroughly before using the unit and pay close attention to warnings and notes.
- Page 4 After instructing the customer in the operation of the equipment, have him fill out and sign the warranty. Then fill in your own section of the warranty and give the customer his copy. Do not fail to send the manufacturer’s copy to J. MORITA MFG. CORP.
- Page 5 7. fires, earthquakes, floods, lightning, natural disasters, or acts of God. ■ J. MORITA MFG. CORP. will supply replacement parts and be able to repair the product for a period of 10 years after the manufacture of the product has been discontinued.
-
Page 6: Warnings And Prohibition
Implantable Cardioverter Defibrillator (ICD )to function abnormally. • Illumination devices such as fluorescent lights and film viewers which use an inverter can cause the Tri Auto mini to operate erratically. Do not use the Tri Auto mini near lights such as these. -
Page 7: Features
It may be connected to the Root ZX mini, an apex locator (sold separately). Instructions for how to use the Tri Auto mini when it is connected to the Root ZX mini are printed on a blue background like this one. -
Page 8: Parts Identification And Accessories
Parts Identification and Accessories Parts Identification Contra Angle Main Switch Motor Handpiece Liquid Crystal Display Select Switch Plus and Minus Switches Charger Charger Switch Power Supply Cord Power LED (green) Charge LED (orange) Accessories Battery Power Supply Cord AR Oil *Inside motor handpiece Transmission Cable File Electrode... -
Page 9: Usage
Usage ⹅ Operation Conditions for the main unit and AC adapter Temperature: 10 to 40°C (50 to 104°F), Realtive Humidity: 30 to 75 %RH (without condesation), Atmospheric Pressure : 700 to 1,060hPa * If the unit has not been used for some time, make sure it works properly before using it again. (1) Before Use Charge Battery The battery is built into the motor handpiece. -
Page 10: Connect Contra Angle
The number of bars shows how much battery power is left. Recharge the battery when there is only one bar left. If the battery runs almost completely out, the Tri Auto mini will automatically turn itself off after about 10 seconds. Recharge the battery as soon as possible. -
Page 11: File Installation
• Inserting and removing files without holding the file release button down will damage the chuck. • Make sure the Tri Auto mini is turned off before inserting or removing files. • Do not connect the file electrode if the handpiece is not connected to the Root ZX mini. -
Page 12: Check Operation
• Do not press the file release button while the motor is running. It could heat up and cause a burn, or the file could come out and cause an injury. • Stop using the Tri Auto mini if you feel or notice anything unusual. The Tri Auto mini cannot be used for every canal and should be used along with manual enlargement. -
Page 13: Operation
1. Turn Tri Auto mini on: Press Main switch. The standby display will appear. When the standby display is being shown, you can turn the Tri Auto mini off by holding down the Select Switch and pressing the Main Switch * The Tri Auto mini turns itself off automatically if it is not used for 3 minutes (factory setting). -
Page 14: Memory Settings
Memory Settings The factory settings are shown below. These settings can be changed. Memory Setting M1, M4 M2, M5 M3, M6 Speed (rpm) Torque Reverse (Ncm) Rotation Direction Forw ard Torque Slow Down Canal Measurement Linkage** Apical Reverse or Stop** R ever se Auto Start or Stop**... -
Page 15: Memory Settings: Additional Operation Settings
Memory Settings: Additional Operation Settings Additional Functions: Torque Slow Down (TORQ.SL.D.), Linked to canal measurement (LINKED FUNCTION Apical Reverse or Stop (APICAL ACT. ), Auto Start and Stop (AUTO STT/STP ), Apical Slow Down (APICAL SL.D. ), Apical Torque Reduction (APICAL TRQ.D. 1. -
Page 16: Memory Settings: Other Settings
Memory Settings: Other Settings Other Settings: The factory settings are shown below. Beeper (BEEP VOLUME) Right or Left Handed (DOMI. HAND) Ri ght Auto Power Off (AUTO PWR) 3 min. Backlight (B.L.COLOR CHANGE) Positive/Negative Display (DISP. TYPE) Posi Return to Standby Time (S.S.R TIME) 5 sec. -
Page 17: Restore Default Memories
Restore Default Memories Restore the original factory settings for the memories in the following way. * This will restore the original memory settings. You cannot restore settings for just one memory. 1. Hold down the Select Switch, the Plus Switch and the Minus Switch and then turn the unit on with the Main Switch. 2. -
Page 18: Usage; Operation With The Root Zx Mini
Usage; Operation with the Root ZX mini Install File Electrode Bracket Electrode Site Cap Contact (gold) File Electrode Take out the black screw and remove the cap that covers Take out the silver screw used to secure the file electrode. the elctrode installation area. - Page 19 Install File Electrode File release button File Electrode Swing the electrode back as shown in the illustration. Hold down the file release button. Insert the file and turn it back and forth until it lines up with the latch mechanism. Push the file all the way into the latch.
-
Page 20: Connect The Transmission Cable
Connect the Transmission Cable * Refer to the user manual for the Root ZX mini. Plug: Gray Plug: White Take off the cap and plug the cable’s white plug all Plug the cable’s gray plug into the Root ZX mini. the way into the handpiece. -
Page 21: Meter Display
If the file tip goes past the Flash Bar, an alarm will sound and the backlight will blink on and off. Operation Turn on the Tri Auto mini and Root ZX mini. The backlight for the display will be yellow. - Page 22 Operation Select a memory number (M1 to M6) with the Plus or Minus switch. * Before using motor handpiece, use a small hand file, such as #10 or #15, to penetrate the root canal manually down to the apical constriction. * The file electrode must be clipped onto the file for accurate measurement and instrument control.
-
Page 23: File Electrode Replacement
* Contact your local dealer or J. MORITA OFFICE to Pay special attention to the area where the file electrode is get new file electrodes. -
Page 24: Sterilization, Replacement Parts, And Storage
Sterilization, Replacement Parts, and Storage (1) Sterilization Autoclaving the Contra Angle Autoclave the contra angle after use for each patient. Recommended: 134°C (273.2°F) for at least 5 minutes inside a sterilization pouch, or 121°C (249.8°F) for at least 35 minutes inside a sterilization pouch. Minimum drying time after sterilization: 10 minutes. - Page 25 Autoclaving the Contra Angle Take the contra angle out of the paper cup and wipe off any excess oil which may have seeped out. Dampen a piece of gauze with ethanol, wring it out and then wipe the contra angle with it. Put the contra angle in a sterilization pouch and autoclave it.
-
Page 26: Replacement Parts
When connected to the Root ZX mini, refer to page 22 for how to replace the file electrode. • Use only the battery designed for the Tri Auto mini. Other types could cause overheating. • Do not use a battery if it is leaky, deformed, discolored or if its label is peeled off. It might overheat. -
Page 27: Storage
(3) Storage Transport and Storage Conditions for the main unit and AC adapter: Temperature: -10 to 45°C (14 to 113°F), Realtive Humidity: 10 to 85 %RH (without condensation), Atmospheric Pressure: 700 to 1,060 hPa * Do not expose to direct sunlight frequently or for long times. * If the unit has not been used for a long time, make sure it works properly before using. -
Page 28: Maintenance And Inspection
7. When used with the Root ZX mini, touch the file with the contrary electrode and make sure that all the segments for the meter light up properly. * For repairs contact your local dealer or J. MORITA OFFICE. Parts List... - Page 29 Tri Auto mini may be repaired and serviced by • the technicians of J. MORITA’s subsidiaries all over the world. • technicians employed by authorized J. MORITA dealers and specially trained by J. MORITA. • independent technicians specially trained and authorized by J. MORITA.
-
Page 30: Troubleshooting
If the instrument does not seem to be working properly, the user should first try to inspect and adjust it himself. * If the user is unable to inspect the instrument himself or if the instrument fails to work properly after being adjusted or after parts are replaced, contact your local dealer or J. MORITA OFFICE. Problem... - Page 31 Problem Check Points Response Canal measurement • Is the contrary electrode for the Root ZX • Hook the contrary electrode in the corner of the display does not mini hooked in the patient’s mouth? patient’s mouth. appear. • Did you press the Select switch while the •...
-
Page 32: Technical Description
TR-CM coupling It can be used with only TR-CM contra angle. Mode of Operation Continuous Field Repair It can not be repaired in the field. Send to J. MORITA regional office or local dealer for repair. Contra Angle Model TR-CM contra angle... - Page 33 Symbols ⹅ Labels CE(0197)marking Attention, consult accompanying Conforms with the European documents. Directive, 93/42/EEC. CE marking Conforms with the European Directive, 2011/65/EU. Type BF applied part (Contrary Electrode and File Holder) Manufacturer Class II Equipment Serial Number Example) This symbol is affixed to fulfill SN D A 00001 the requirements of EU Directive 2002/92/ED Article 11.
-
Page 34: Appendix- Electromagnetic Declaration
Appendix- Electromagnetic declaration Guidance and manufacturer’s declaration – electromagnetic emissions The TR-CM is intended for use in the electromagnetic environment specified below. The customer or the user of the TR-CM should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance... - Page 35 Guidance and manufacturer’s declaration – electromagnetic immunity The TR-CM is intended for use in the electromagnetic environment specified below. The customer or the user of the TR-CM should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance Portable and mobile RF communications equip-ment...
- Page 36 Noise will not permanently alter display values. Accessories: Transmission Cable (Length : 1.5 meters) • Use of the parts other than those accompanied or specified by J. MORITA MFG. CORP. may result in increased EMC emissions or decreased EMC immunity of the TR-CM. Operation 2011-07-05...
-
Page 37: Safety And Accident Prevention For The Operation Of Electrical Medical Devices
Safety and Accident Prevention for the Operation of Electrical Medical Devices 1. Only fully trained and qualified personnel may operate equipment. 2. Items to be duly noted when installing equipment. 1) Locate the unit in a place where it will not get wet. 2) Install the unit in a location where it will not be damaged by air pressure, temperature, humidity, direct sunlight, dust, salts, or sulfur compounds. - Page 40 PUB. M9826-EN-4 Printed in Japan...
