Summary of Contents for Wassermann Polyquick

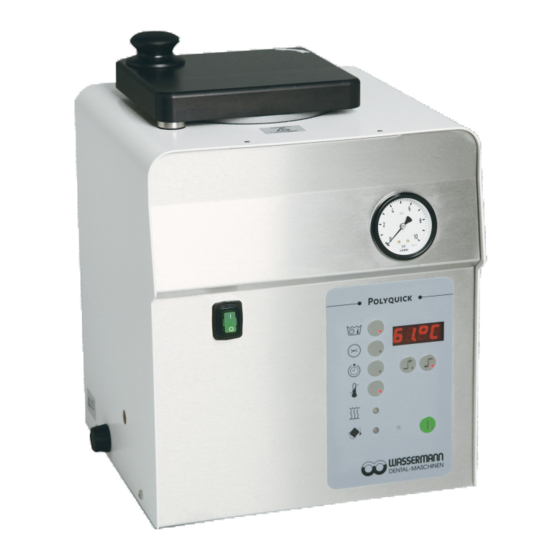

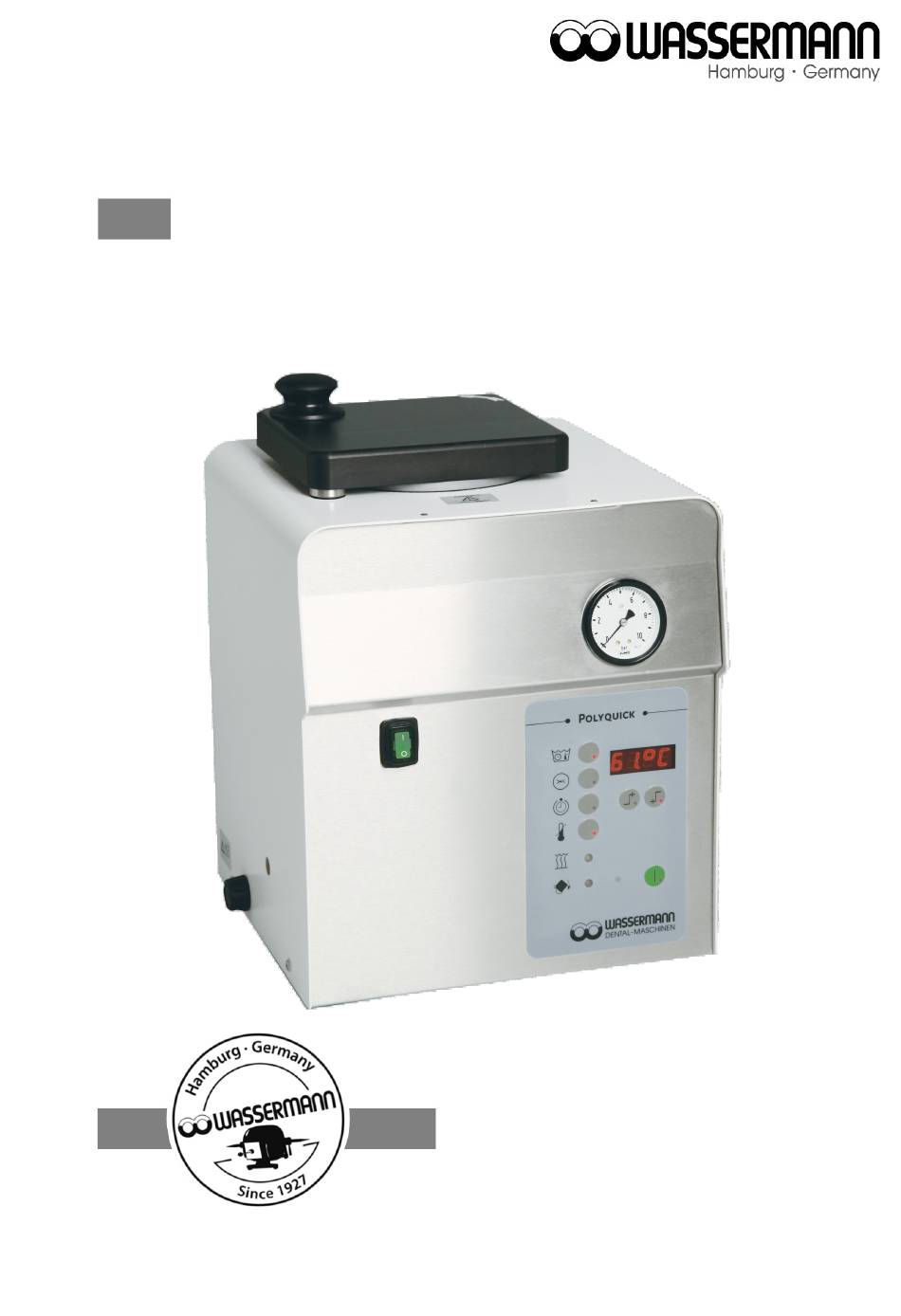

- Page 1 Polymerisation Unit Polyquick USER MANUAL...
- Page 2 Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann Dental- Maschinen incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation, please read this service manual carefully before you connect this device and start work, and operate the device according to the recommended guidelines.
-
Page 3: Table Of Contents
Contents 1 Features..........................4 2 Safety symbols used in this manual..................4 3 Safety guidelines........................5 4 Responsibility for operation or damage................6 5 Application..........................6 6 Before Starting........................6 6.1 Transport............................6 6.2 Installation............................7 6.3 Storage............................7 7 Installation/ Start-up......................8 7.1 Setting the Correct Pressure......................8 8 Operation...........................9 8.1 General Operating Instructions.......................9 8.2 Conversion table °C - °F.........................9 8.3 Filling and Switching On........................11... -
Page 4: Features
Features Depending on your requirements, you can set the polymerisation time manually to the maximum or automatically to a shorter period. All functions are available in both cases. The polymerisation time is adjustable up to 59 hours and 40 minutes. The maximum pressure is 6 bar, and this is maintained by a non-return valve. -
Page 5: Safety Guidelines
Safety guidelines Configuring and operating this equipment requires precise knowledge and observance of the instructions in this user manual. The equipment is designed only for its intended application. WARNING: Servicing and repairs should be carried out only by authorised specialists. Disconnect the power plug before starting any maintenance work. -
Page 6: Responsibility For Operation Or Damage
Wassermann Dental-Maschinen GmbH are not extended by these instructions. Application The Polyquick is a pressure polymerisation unit for the hot and cold polymerisation of plastics. It can be set to a maximum temperature of 95°C and a maximum polymerisation pressure of 6 bar. -
Page 7: Installation
Installation Open the box, remove the packing materials, and carefully lift out the device and accessories. Check the included accessories. The device has to stand horizontally on a steady and even surface Install the device in a place where it will not block the working area and the functionality (take the dimensions into account). -
Page 8: Installation/ Start-Up
Installation/ Start-up Important! Never operate the unit without water as the heater climbs immediately to 50°C as soon as the power comes on. Before starting the unit, connect up the following: Connect up a compressed-air supply of at least 3.5 bar. If using a long hose, make •... -
Page 9: Operation
Operation General Operating Instructions All instructions for using the unit, whether in verbal or written form, are based on our own experience and experimentation and can only be regarded as guidelines. Conversion table °C - °F − 32) / 1,8 °C 212 °F °C... - Page 10 Factory settings: Heating 50°C Time 10 min. Pressure 6 bar Turning on the main switch sets the pre-programmed heater temperature to 50°C. This temperature is independent of any previously set temperature. When the set temperature button (8) is pressed, the heater temperature is overridden and the unit increases to the last set temperature.
-
Page 11: Filling And Switching On
Filling and Switching On 1. Open the lid. 2. Insert the filled container, fill with water until all polymerisation components are covered (max. up to the indent in the container), then close the lid fully. 3. Turn on the main switch; the unit heats automatically to 50°C. Programming Time: ... -
Page 12: Operation
Operation: The polymerisation period must be set and either hot or cold and/or pressure polymerisation chosen. 8.5.1 Automatic Operation: Set the program to the desired polymerisation time and temperature (see 6.2). For hot polymerisation, press Heater (1); the yellow LED (lower) comes on while the unit heats up. -
Page 13: Manual Operation
8.5.2 Manual Operation: Set the program to max. time and the desired temperature (see 6.2). For hot polymerisation, press Heater (1); the yellow LED (lower) comes on while the unit heats up. For pressure polymerisation, press Pressure (2). ... -
Page 14: Draining The Water
Draining the Water Warning: Before you drain the water, check that the drain hose ends in a bucket or washbasin. For your own safety, it should be fixed in place. Drain the water carefully as it can be very hot! Procedure: Close the lid completely;... -
Page 15: Care And Maintenance
Care and Maintenance 10.1 Cleaning Disconnect the power plug before starting any maintenance work. The identification plate has always to be kept in easily legible condition and has not to be removed. Remove external dirt from time to time with some form of cold cleaner. Use only cold cleaners to avoid damaging the paintwork or removing the lettering. -
Page 16: Spare Parts
10.4 Spare Parts If necessary please contact our service hotline phone. 10.5 Service Hotline 0049 (0)40 730 926 -20/ -24 10.6 Scope of Delivery/ Accessories Included parts Item no. Flask bracket support 170508 Flask basket 170517 PVC hose Ø 8 x 6 textile (blue ) 2 m 320026 PVC hose Ø... -
Page 17: Technical Data
Technical Data Polyquick Item no.: 170999 Voltage* 220–240 V / 50/60 Hz Power consumption 4.2 A Output 1000 W W x H x D 340 x 435 x 355 mm Weight 21.1 kg Compressed air connection min. 4 bar Operating pressure max. -
Page 18: Disposing Of The Unit
Disposing of the Unit The unit has to be disposed by an authorized recycling operation. The selected company has to be informed of all possibly health-hazardous residues in the unit. 12.1 Information on Disposal for Countries within the EU To conserve and protect the environment, prevent environmental pollution and improve the recycling of raw materials, the European Commission adopted a directive that requires the manufacturer to accept the return of electrical and electronic units for proper disposal or recycling. -
Page 19: Eu Declaration Of Conformity
Product description: Polymerisation Dental-Maschinen GmbH Unit for dental Rudorffweg 15-17 applications 21031 Hamburg Germany Model: Polyquick Item no. 170999 Applicable DIN EN 61010-1 standards: DIN EN 61000-6-3 DIN EN 61000-6-1 DIN 45635-1 DIN EN 60335-1 Hiermit wird bestätigt, dass die oben bezeichnete Maschine den genannten EU-Richtlinien entspricht.
