Wassermann SG-10 User Manual

Single workbench suction unit

Advertisement

Quick Links

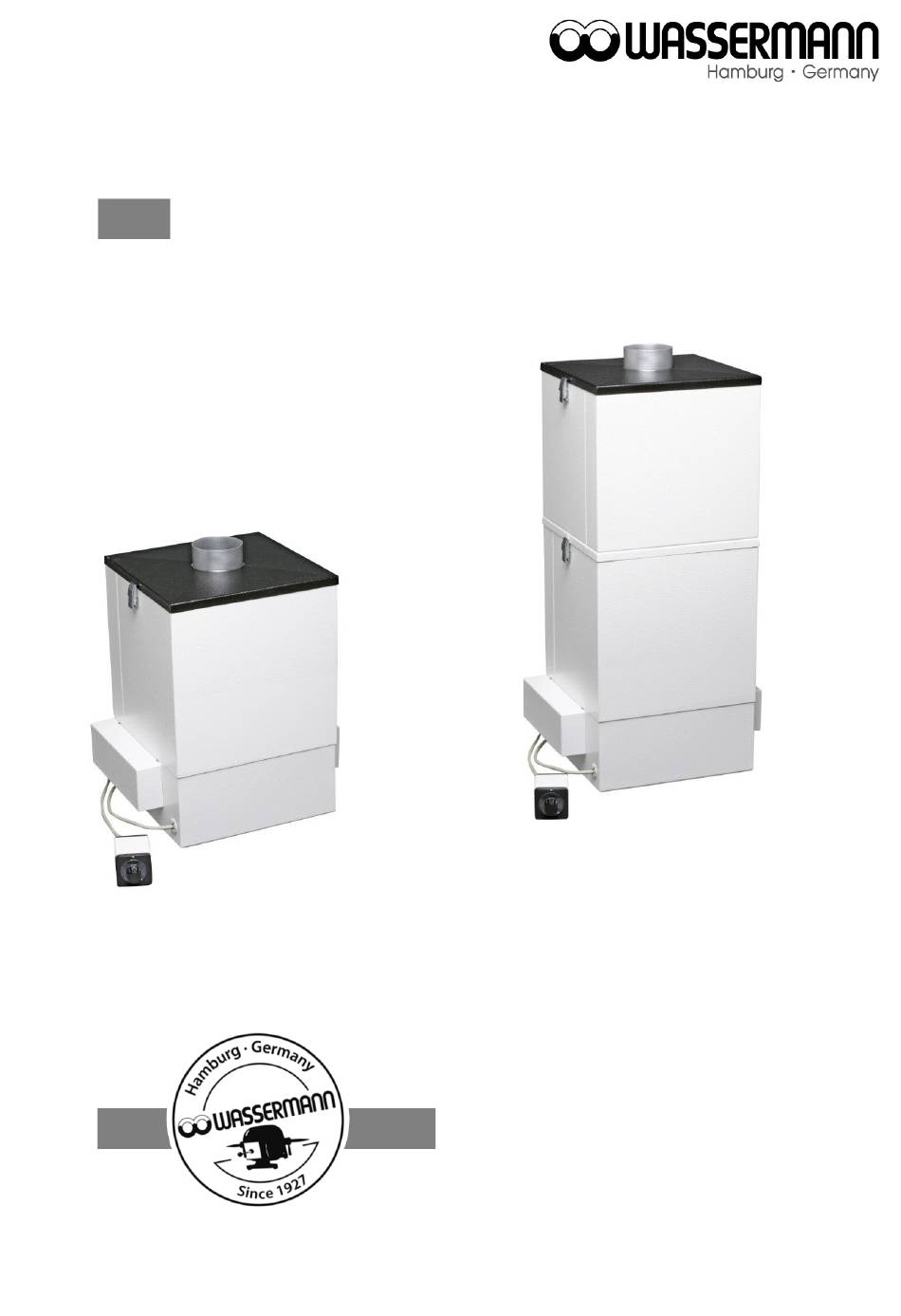

Suction Unit
SG-10
Single Workbench Suction Unit
SG-10
Activated Carbon
Version
SG-10
(REF 140987)
Basic Version
fig. with accessory
(REF 140988)
external speed regulator
fig. with accessory
external speed regulator
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wassermann SG-10

  • Page 1 Suction Unit SG-10 Single Workbench Suction Unit SG-10 Activated Carbon Version SG-10 (REF 140987) Basic Version fig. with accessory (REF 140988) external speed regulator fig. with accessory external speed regulator USER MANUAL...
  • Page 2 Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann Dental- Maschinen incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation, please read this user manual carefully before you connect this device and start work, and operate the device according to the recommended guidelines.
  • Page 3: Table Of Contents

    10.6.2 Operating with Activated Carbon Filter Slot............14 10.7 Warranty.........................15 11 Technical Data......................15 12 Technical Drawings.......................16 12.1 Construction SG-10 (incl. Activated Carbon Filter)..........16 12.2 Construction Module Activated Carbon Filter (REF: 140424)........17 13 Disposing of the Unit.....................18 13.1 Information on Disposal for Countries within the EU..........18...
  • Page 4: Features

    Features The suction unit SG-10 is used to extract dental dust at the workplace and to extract polishing dust and fine blasting units. Universal suction unit works with the low pressure principle • Single workbench suction unit • Power control is infinitely variable using the control element on the housing •...
  • Page 5: Safety Guidelines

    Make sure that the equipment is connected to the correct power source. Do not operate the unit without a fan guard or a filterbag! Do not operate the SG-10 in an explosive atmosphere! Do not apply suction to any liquids. Responsibility for Operation or Damage...
  • Page 6: Application

    The slow air flow means that even during work over longer periods, the hands do not chill. The SG-10 has an rotary potentiometer for fan control and a pilot lamp to indicate filter saturation on the housing.
  • Page 7: Installation

    Installation Open the box, remove the packing materials, and carefully lift out the device and accessories. Check the included accessories. The device has to stand horizontally on a steady and even surface. Install the device in a place where it will not block the working area and the functionality (take the dimensions into account).
  • Page 8: Operation

    It can also be used to briefly stop the fan. 3. Use the rocker switch to deactivate the SG-10 during longer interruptions in work. You have to press the rocker switch on the supply line in order to deactivate the...
  • Page 9: Troubleshooting

    Troubleshooting Fault Cause Solution Filter saturation Full filter Replacing the filter (see 8.2.1) – red lamp glows Motor control does not Damaged Please contact our service department work potentiometer (speed control) Full filter – but red lamp Damaged lamp Please contact our service department does not glow Damaged differential pressure switch...
  • Page 10: Care And Maintenance

    Care and Maintenance 10.1 Cleaning Disconnect the power plug before starting any maintenance work. The identification plate has always to be kept in easily legible condition and has not to be removed. Remove external dirt from time to time with some form of cold cleaner. Use only cold cleaners to avoid damaging the paintwork or removing the lettering.
  • Page 11: Repairs

    A disposable micro fine dust filterbag is fitted; it must be replaced when dust saturation (red pilot lamp) is reached. To do this, open the fasteners on the right and the left, remove the lid, take out the filterbag and wrap in the adhesive foil enclosed with the spare filter. Insert the new filter, close the lid.
  • Page 12: Scope Of Delivery/ Accessories

    Module activated carbon filter (with filter) 140424 External speed regulator for fan control, can be retrofitted 140408 (accessory SG-10 #00168724 ff.) (only SG-10 activated carbon version) Item numbers for setup change SG-10 basic into activated carbon version: 140410/ 610074/ 140424...
  • Page 13: Use Of The Filter Extension Module

    10.6.1 Use of the Filter Extension Module In order to fit a larger filterbag or the activated carbon filter, please use the filter extension. To do this, open the fasteners on the right and the left, take off the lid, insert the filter extension and close the fasteners.
  • Page 14: Operating With Activated Carbon Filter Slot

    Then fit the filter extension to the unit (see item 8.5.1), insert the pre-filter (filterbag dust class M, long 340 mm) and close the lid. In order to replace the activated carbon filter while using the SG-10, please remove the activated carbon filter slot from the unit and replace the used filters.
  • Page 15: Warranty

    This warranty does not cover damage caused by improper use, external mechanical causes, transport damage or interference with the unit by unauthorized persons. Technical Data SG-10 basic version Item no.: 140988 SG-10 activated carbon version Item no.: 140987 * Voltage 220–240 V / 50/60 Hz Power consumption 0.75 A...
  • Page 16: Technical Drawings

    Technical Drawings 12.1 Construction SG-10 (incl. Activated Carbon Filter) REF: 140410 Filter extension module (without filter) REF: 140424 Module activated carbon filter (with filter) REF: 140980 Suction unit SG-10 base REF: 310035 Identification plate (serial number etc.) REF: 610074 Spare micro fine dust filterbag (yellow) large, dust class M fig.
  • Page 17: Construction Module Activated Carbon Filter (Ref: 140424)

    12.2 Construction Module Activated Carbon Filter (REF: 140424) REF: 140426 Filter casing, cpl. SG-10 REF: 140427 Filter frame, cpl. SG-10 REF: 140435 Spare filter cassette, dust class F, cpl. REF: 140436 Spare activated carbon filter, cpl.
  • Page 18: Disposing Of The Unit

    Disposing of the Unit The unit has to be disposed by an authorized recycling operation. The selected company has to be informed of all possibly health-hazardous residues in the unit. 13.1 Information on Disposal for Countries within the EU To conserve and protect the environment, prevent environmental pollution and improve the recycling of raw materials, the European Commission adopted a directive that requires the manufacturer to accept the return of electrical and electronic units for proper disposal or recycling.
  • Page 19: Eu Declaration Of Conformity

    Dental-Maschinen GmbH dental Rudorffweg 15-17 applications 21031 Hamburg Germany Model: SG-10 basic version Item no. 140988 SG-10 activated carbon version Item no. 140987 Applicable DIN EN 61010-1 standards: DIN EN 61000-6-3 DIN EN 61000-6-1 DIN 45635-1 DIN EN 60335-1 Hiermit wird bestätigt, dass die oben bezeichnete Maschine den genannten EU-Richtlinien entspricht.
