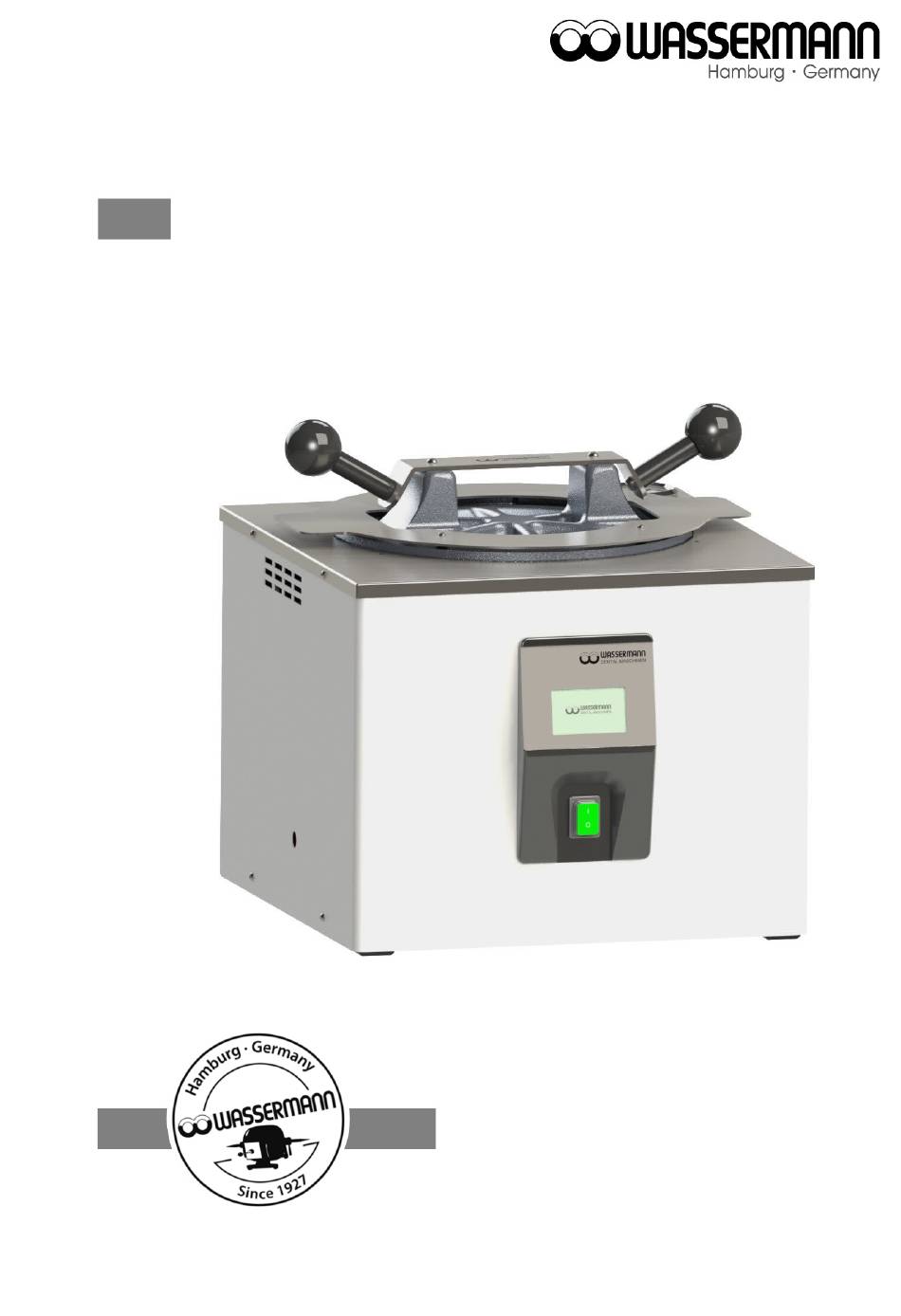

- Page 1 Combination Automat Polyquick 260 Pressure Polymerisation Unit and Compactor USER MANUAL...
- Page 2 Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann Dental- Maschinen incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation, please read this user manual carefully before you connect this device and start work, and operate the device according to the recommended guidelines.
-
Page 3: Table Of Contents
Contents 1 Features..........................4 2 Safety Symbols used in this Manual..................4 3 Safety Guidelines.......................5 4 Responsibility for Operation or Damage................6 5 Application..........................6 6 Before Starting........................7 6.1 Transport........................7 6.2 Installation........................7 6.3 Storage........................7 7 Installation/ Start-up......................8 7.1 Setting the Correct Pressure..................8 7.2 Start-up........................9 8 Operation.........................14 8.1 General Operating Instructions.................14 8.2 Operation........................15... -
Page 4: Features
Features • Compact table-top unit for pressure polymerisation up to 105°C in a water bath • Very large capacity Ø 240 mm, usable depth 160 mm, suitable for extra large articulators • Touch screen for fast and easy operation • Up to three individually configurable polymerisation stages •... -
Page 5: Safety Guidelines
Safety Guidelines Configuring and operating this equipment requires precise knowledge and observance of the instructions in this user manual. The equipment is designed only for its intended application. WARNING: Servicing and repairs should be carried out only by authorised specialists. Disconnect the power plug before starting any maintenance work. -
Page 6: Responsibility For Operation Or Damage
Wassermann Dental-Maschinen GmbH are not extended by these instructions. Application The Polyquick 260 is a pressure polymerisation unit for hot and cold polymerisation of plastics. It can be set to a maximum temperature of 105°C and the polymerisation pressure can be adjusted to a maximum of 5 bar. In automatic mode, the polymerisation time can be preselected up to 99 hours. -
Page 7: Before Starting
Before Starting Transport Before transporting the unit, ensure that it has been unplugged from the power socket. Make sure that it is packed correctly in order to avoid accidental damage. Be sure to check for any transport damage when unpacking the goods. Note down any damage if found. -
Page 8: Installation/ Start-Up
Installation/ Start-up Before commissioning, please install the following connections: Install the pressure hose included in the scope of supply and provide for an appropriate outlet. After setting the workpiece, fill the device with tap water, at most up to the engraving in the tank. -
Page 9: Start-Up
Start-up Define the unit's main parameters before switching it on. These settings are performed in the Set-Up Menu . Familiarise yourself with the system's various options before starting the polymerisation process. This particularly applies to functions (Please see „setup menu page 1“ on page 10 of this manual). The Start menu in Polymerisation mode Name of the unit Actual-Temperatur... - Page 10 Setup menu page 1 In the Setup menu the following settings can be made: Preheating temperature Clock timer Forward in menu Sleep Heater ON/OFF back to Start menu Mode: Polymerisation / Compaction without heater Setup menu page 2 °C/°F Date and Time Forward in menu Work mode Information...
- Page 11 Description of features 5 – 14 Pressure ON/OFF Bevore starting the programme you have to choose the pressure. Programme parameter und Polymerisation Defines the parameters for the programme temperature. You can store 3 programme counter (P1, P2 und P3). In every counter up to three polymerisation stages #1-3 can be mapped.
- Page 12 The Polymerisation Stop/Pause Break-of Pause Back Start Preheating temperature Defines the target temperature once the main switch has been activated. The pre-heat temperature also applies to waiting times and rest periods. Default: 60°C If the programme temperature selected is higher, the temperature reverts back to this value when the programme ends.
- Page 13 Programmes running currently have a higher priority; they are not switched off until complete. Sleep button display When you press the Sleep button, the device goes into the Sleep mode (all functions except the Timer function are switched off). The device gets actuated when you press the touch display or with the timer and heats up or cools down to the preset pre-heating temperature.
-
Page 14: Operation
Selection of the working mode Defines whether the polymerisation process should start immediately or only after the heating value has been reached. (a) (Default) The device heats to the temperature programmed under . After reaching this value, the result measured is validated by a control cycle. If the value is confirmed, the wax polymerisation process will start. -
Page 15: Operation
Please put on heat-resistant gloves During longer periods of non-use please disconnect the power plug. Operation Open the lid. • First set the workpieces, then fill the water till all the polymerisation parts are • covered (max. up to the engraving = Marking in the tank) and close the lid up to the stop. -
Page 16: Troubleshooting
Touchscreen Calibrate the touch display Switch on the unit. While the logo of malfunction Wassermann appears please contact the touch display two times. Then you will reach the self-explanatory touch panel-calibration (Fig. 2-3). Please contact our service department. -
Page 17: Care And Maintenance
Care and Maintenance 10.1 Cleaning Disconnect the power plug before starting any maintenance work. The identification plate has always to be kept in easily legible condition and has not to be removed. Remove external dirt from time to time with some form of cold cleaner. Use only cold cleaners to avoid damaging the paintwork or removing the lettering. -
Page 18: Repairs
10.3 Repairs Servicing or repairs to the unit has only to be carried out by qualified technicians. Only original spare parts are to be used. Responsibility for the product is voided if unauthorised persons alter it or if inappropriate components are installed. 10.4 Spare Parts If necessary please contact our service hotline phone. -
Page 19: Technical Data
Technical Data Polyquick 260 Item no.: 170993 Voltage 220–240 V / 50/60 Hz Power consumption 4.3 A Output 1100 W W x H x D 421 x 437 x 485 mm Weight 36.8 kg Compressed air connection min. 2 bar Operating pressure max. -
Page 20: Disposing Of The Unit
Disposing of the Unit The unit has to be disposed by an authorized recycling operation. The selected company has to be informed of all possibly health-hazardous residues in the unit. 12.1 Information on Disposal for Countries within the EU To conserve and protect the environment, prevent environmental pollution and improve the recycling of raw materials, the European Commission adopted a directive that requires the manufacturer to accept the return of electrical and electronic units for proper disposal or recycling. -
Page 21: Eu Declaration Of Conformity
Dental-Maschinen GmbH Unit and Rudorffweg 15-17 Compactor for 21031 Hamburg dental Germany applications Model: Polyquick 260 Item no. 170993 Applicable DIN EN 61010-1 standards: DIN EN 61000-6-3 DIN EN 61000-6-1 DIN 45635-1 DIN EN 60335-1 Hiermit wird bestätigt, dass die oben bezeichnete Maschine den genannten EU-Richtlinien entspricht. - Page 22 Notes:...
