STEP TWO: Ladder & Handrail Assembly to Flume (Zoom HDW#1)
*TIP: Use provided anti-seize lubricant on all bolts!
ZOOM-IM Rev. 9/09 (SBK-INSTAL ZOOM)
Z O O M E R A N G ™ S L I D E

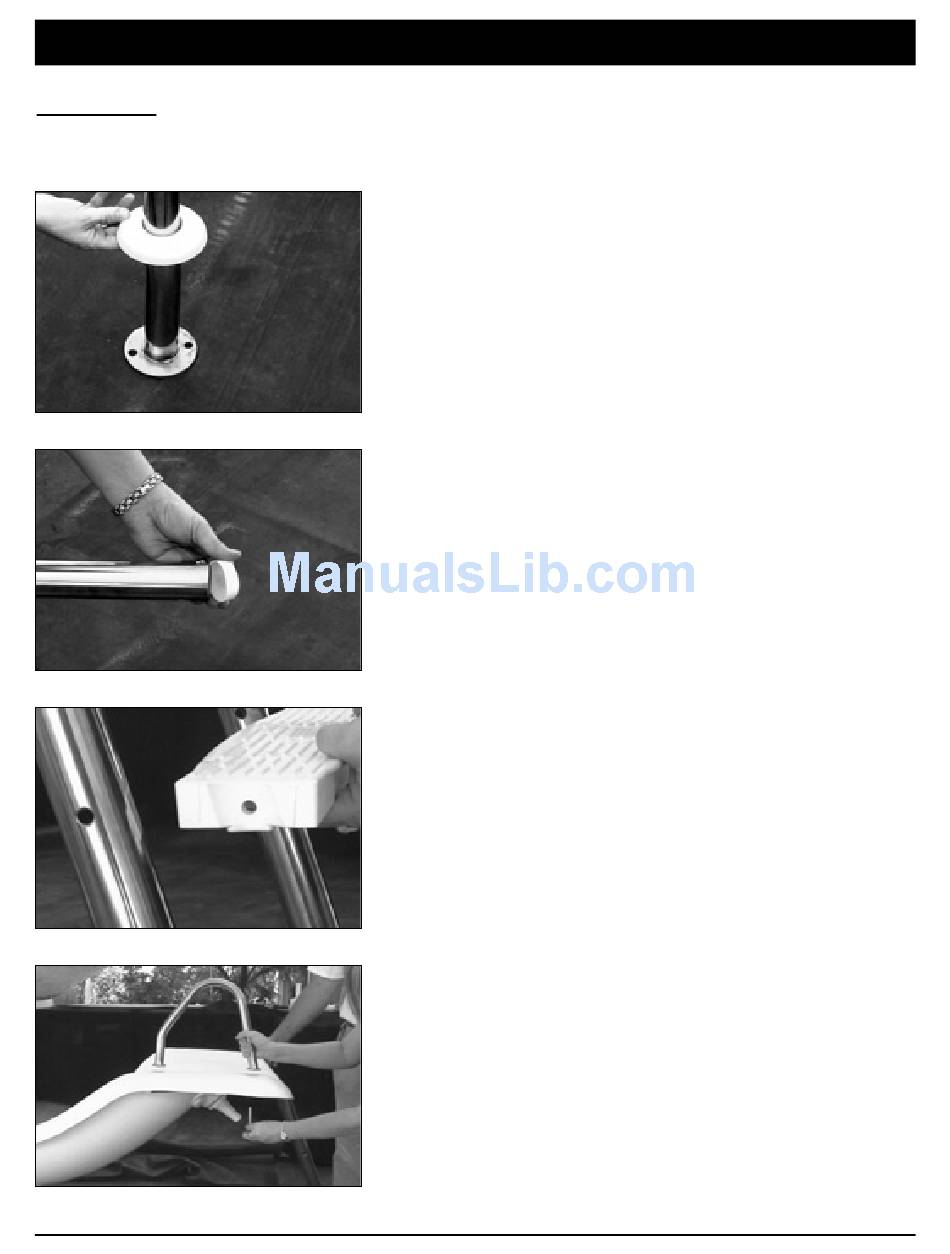

Slide ladder escutcheon down ladder rail before
attaching the ladder treads.
covers the deck mounting flange and hardware
at the base of the ladder.
Attach vinyl end caps over the open end of the
ladder rail.
Install the ladder treads using the special curved
head bolts inserted from the outer edge of the
ladder rail through the underside of the tread.
Use 1/2" open-end wrench to secure nut and
washer. Important Note: Before tightening
hardware, check tread alignment with rail angle
to ensure proper positioning. Tread groove should
match the angle of the raised rail (illustrated) and
be parallel to the deck's surface.
Raise flume to an upright position on the
attached support base.
corresponding holes found in the rail groove
beneath the seating area of the flume and position
the grab rail above. Insert the 3/8" x 3" bolt
and washer from the bottom of the ladder rail
through the flume into the grab rail. Secure with
a 9/16" wrench.
Important Note: Handrail must be positioned as
illustrated.
7
The escutcheon
Align ladder rail with
Repeat for second handrail.
