I N S T A L L A T I O N M A N U A L Z O O M E R A N G ™ S L I D E
STEP THREE: Anchoring to Deck (Zoom HDW#1 and Zoom HDW#2))
3/8" SS Wedge Anchor in Zoom HDW#1 (ladder to deck – qty 4) and Zoom HDW#2
(support base to deck – qty 3)
Place slide in desired location ensuring location conforms to the Safety Corridor outlined on
page 3. The lip of the flume exit should protrude a minimum of 3" over the pool edge.
Mark the position of the flange holes in the ladder and flume support with a pencil or mark-
er. NOTE: Use of a hammer drill for masonry drilling is recommended. Masonry drills can
be rented at most equipment rental companies.

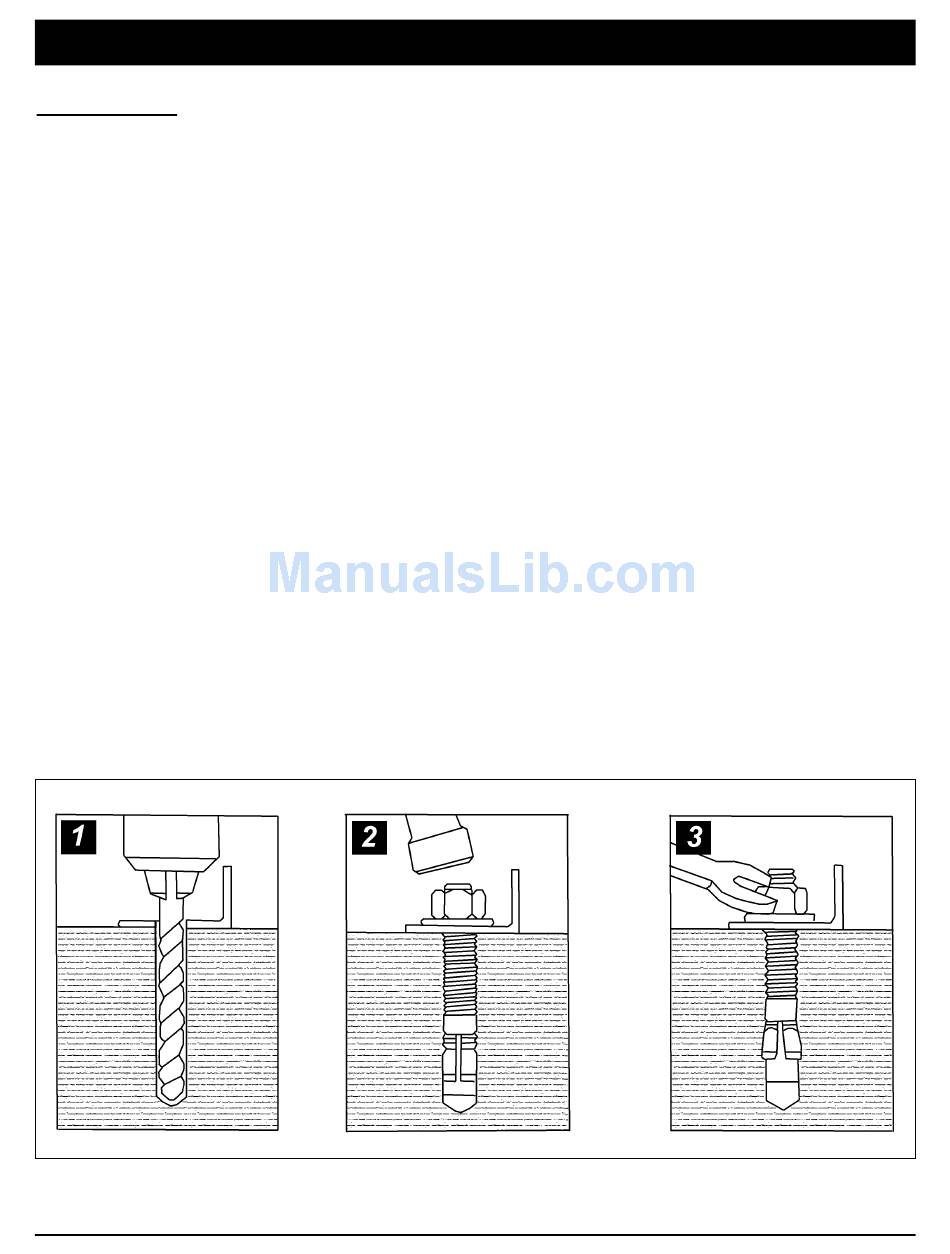

Using a 3/8" masonry bit, drill holes for ladder 2" deep, and for flume support pedestal 1-
1/2" deep. It is important to drill the holes as perpendicular to the deck surface as possi-
ble. (deck slopes may vary) Clean the dust from holes using a shop vacuum or garden hose at
full pressure.
Gently tap the wedge anchors into all drilled holes. Set the slide over the installed wedge
anchors and install washer and nuts. Tighten all wedge anchor nuts at this time to 25 ft.
lbs. of torque.
Secure vinyl nut caps over exposed threads of the flume support base.
ZOOM-IM Rev. 9/09 (SBK-INSTAL ZOOM) 8
