Technical Description Of The Expansion Units - Siemens S5-155U System Manual

Expansion Units
4.2.1
Technical Description of the
Expansion Units

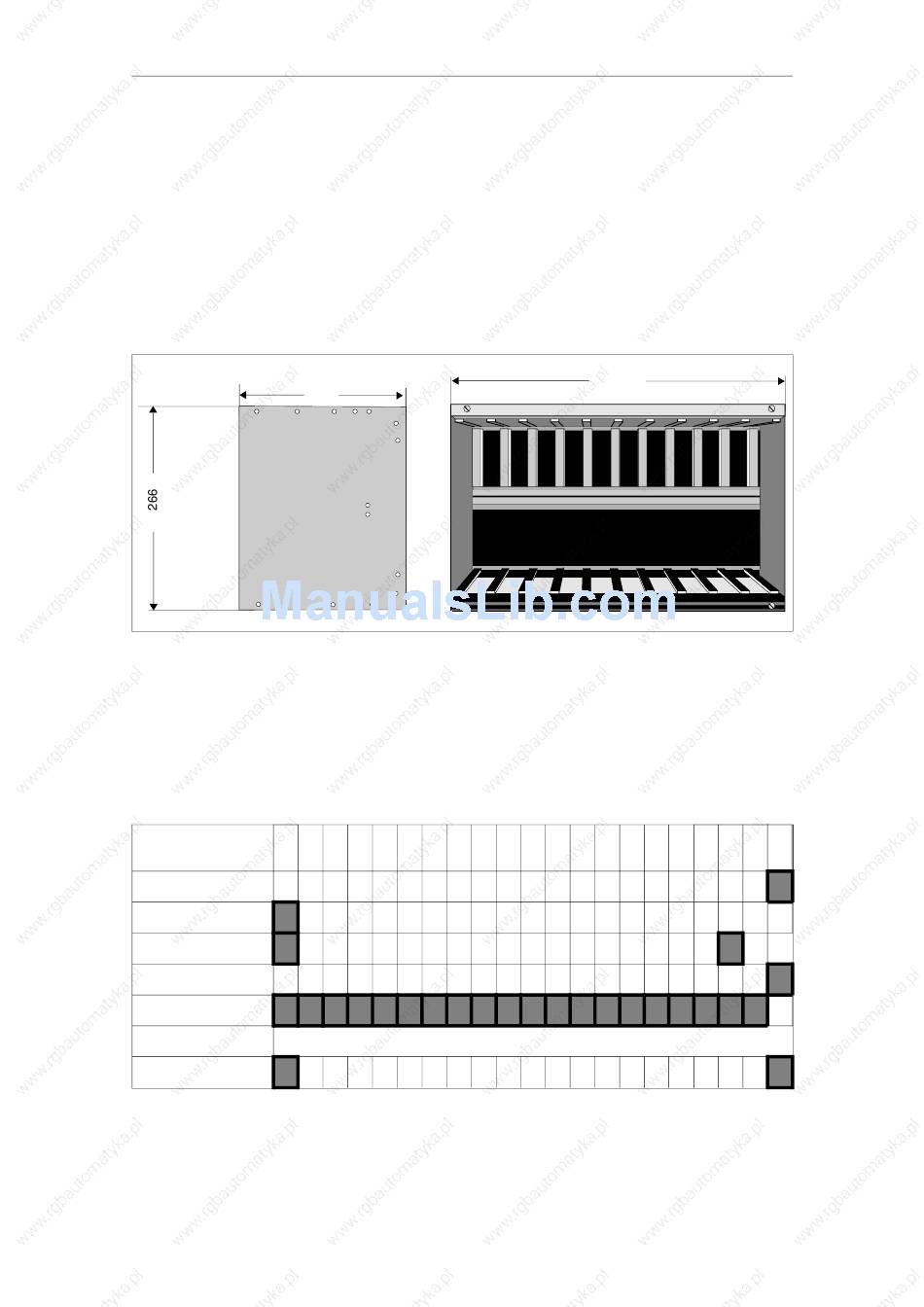

Figure 4-6 Mounting Dimensions of the EU 187U
Modules and slots
assignments of the
expansion units
Slot No. 3 11 19 27 35 43 51 59 67 75 83 91 99 107 115 123 131 139 147 155 163
Module type
IM 300
IM 310, IM 314,
IM 318
IM 317
IM 312-3
DI, DQ,
AI, AQ
Signal pre-processing See current Catalog ST 54.1 for slot numbers
modules (IPs)
Monitoring
module 313
4 - 18
The design of the EUs is comparable to that of the CC: they comprise
a compact housing with a type-dependent number of slots for modules
and, according to the type of EU, a cable duct, an integral power
supply unit or fan subassembly.
The mounting dimensions of the EU 183U, EU 184U and EU 185U
are the same as those of the 135U/155U CC (see Figures 4-2 and 4-4).
The EU 187U has neither power supply unit nor cable duct. Its overall
height and depth are therefore different from those mounting
dimensions of the other EUs.
225
SIMATIC S5 135U
The following tables show which modules can be inserted at which
slots.
Modules and slot assignments of the EU 183U
440
System Manual
C79000-B8576-C199-03
