Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: K-Able/XL Box Cable Retractor P/N: 2900-300441 Rev 3... -
Page 2: Table Of Contents
Technical Specifications Figures Figure 1: K-Able/XL Box Cable Retractor Front Panel Figure 2: Mounting a Single K-Able/XL Box Vertically in a TBUS Unit Figure 3: Hinged Top Shown Open Figure 4: Mounting Multiple K-Able/XL Box Units Vertically Figure 5: Space between Adjacent K-Able/XL Box Units... -
Page 3: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 4: Getting Started
Unpack the equipment carefully and save the original box and packaging materials for possible future shipment Review the contents of this user manual T-Bus Compatibility The K-Able/XL Box can be used in conjunction with the following Kramer table mounting units: TBUS-1A ... -
Page 5: Overview

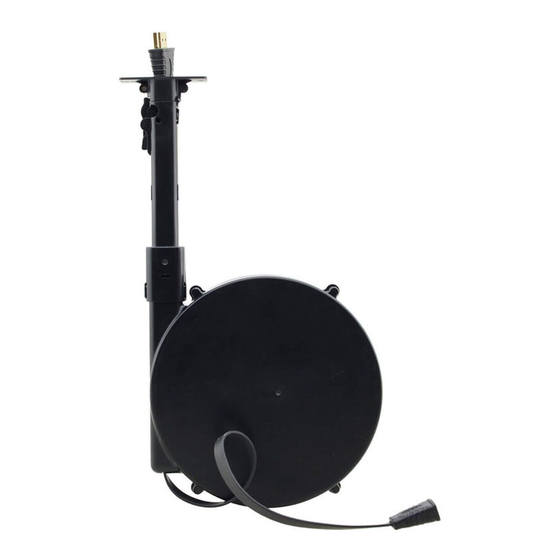

Overview The K-Able/XL Box is a furniture-mounted cable extender and retractor that is easily installed underneath a table-top or in a podium. The K-Able/XL Box is available with of the following cable types: Audio VGA and audio ... - Page 6 Item Description K-Able/XL Box M3 x 8mm countersunk machine screws #4 x ½” countersunk wood screws M3 washers K-Able/XL Box - Overview...
-
Page 7: Defining The K-Able/Xl Box Cable Retractor
Main Body Contains the cable and retraction mechanism Cable—Fixed End Connect to room wiring infrastructure, for example, leading to a switcher or projector Hinged Top Clip Used to latch the top closed K-Able/XL Box - Defining the K-Able/XL Box Cable Retractor... -
Page 8: Mounting The K-Able/Xl Box
Mounting the K-Able/XL Box horizontally, (see Section 5.3) Mounting the K-Able/XL Box Vertically Figure 2 shows a single K-Able/XL Box mounted vertically inside a TBUS unit. Figure 2: Mounting a Single K-Able/XL Box Vertically in a TBUS Unit K-Able/XL Box - Mounting the K-Able/XL Box... -
Page 9: Figure 3: Hinged Top Shown Open
To mount a single K-Able/XL Box vertically in a TBUS unit as illustrated in the example in Figure 1. Remove the blanking plate from the required position in the TBUS unit. 2. From the underneath of the TBUS unit, insert the extendable cable end of the K-Able/XL Box and align it with the mounting holes in the TBUS unit plate. -
Page 10: Mounting Multiple K-Able/Xl Box Units Vertically
Note: Each K-Able/XL Box unit occupies slightly more than the width of a single slot in a TBUS unit, therefore two K-Able/XL Box units cannot be mounted in two adjacent slots unless there is a space in between as shown in... -
Page 11: Mounting The K-Able/Xl Box Horizontally
Figure 5: Space between Adjacent K-Able/XL Box Units The procedure for mounting multiple K-Able/XL Box units is the same as for mounting a single unit. For instructions, see Section Mounting the K-Able/XL Box Horizontally The K-Able/XL Box can be mounted horizontally to the underneath of a surface,... -
Page 12: Figure 6: Mounting The K-Able/Xl Box Horizontally
To mount the K-Able/XL Box horizontally as illustrated in Figure Position the K-Able/XL Box relative to the edge of the table and secure it using the three wood screws and washers supplied. The screws and washers are inserted into the mounting lugs as shown in... -
Page 13: Using The K-Able/Xl Box
When the lock disengages do not let go of the cable and allow it to retract unrestrained or the mechanism/cable may be damaged. In the event that there is a problem with getting the cable to retract, extend the cable fully and the mechanism will disengage. K-Able/XL Box - Using the K-Able/XL Box... -
Page 14: Technical Specifications
PIGTAIL LENGTH: 38cm (15in) TOTAL CABLE LENGTH: 2.7m (8.9ft) ACCESSORIES: 3 x M3 x 8mm vertical mounting countersunk head machine screws 4 x #4 x ½” horizontal mounting countersunk head screws 4 x M3 washers K-Able/XL Box - Technical Specifications... - Page 16 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing 2900- 300441 P/N: Rev:...
