- Page 1 Kramer Electronics, Ltd. Preliminary USER MANUAL Model: FC-50 RS-232 Range Extender...
-
Page 2: Table Of Contents

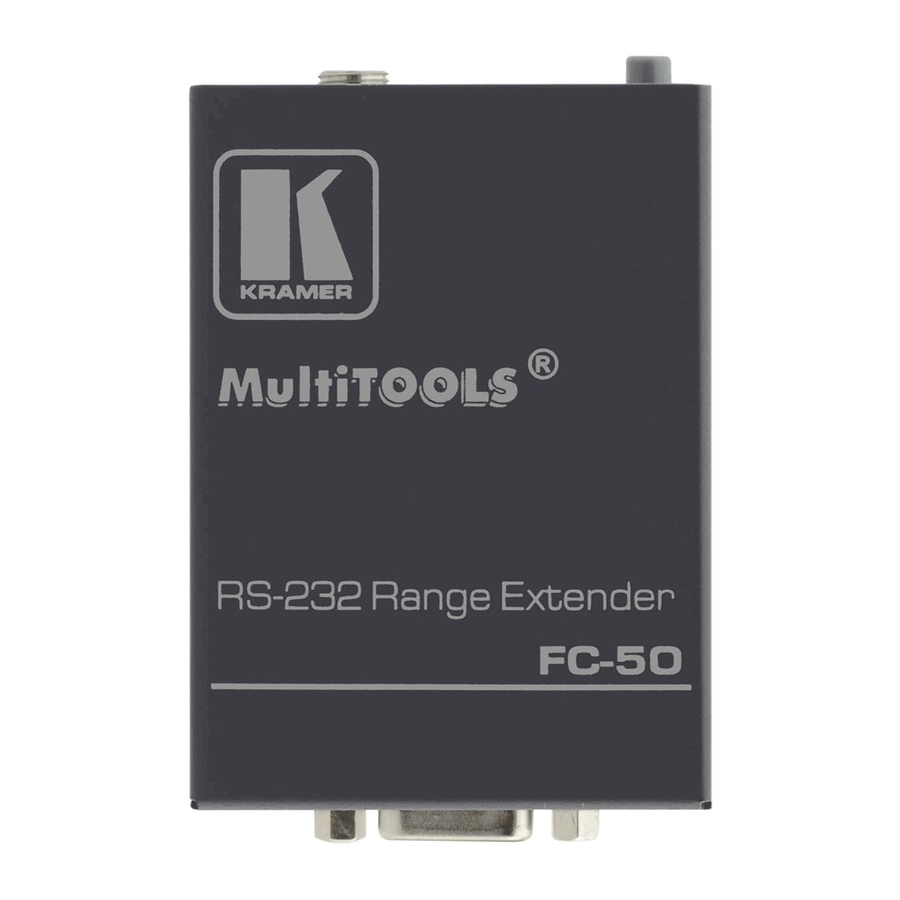

Technical Specifications Figures Figure 1: FC-50 RS-232 Range Extender Figure 2: FC-50 RS-232 Range Extender Underside Figure 3: Connecting the FC-50 RS-232 Range Extender Figure 4: CAT 5 PINOUT Tables Table 1: FC-50 RS-232 Range Extender Features Table 2: FC-50 RS-232 Range Extender Underside Features... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Video Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. -
Page 6: Recommendations For Achieving The Best Performance
Do not secure the cables in tight bundles or roll the slack into tight coils • Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer FC-50 away from moisture, excessive sunlight and dust Your FC-50 RS-232 Range Extender... -
Page 7: Figure 2: Fc-50 Rs-232 Range Extender Underside
+12V DC connector for powering the unit CAT 5 RJ-45 Connector Connect to the CAT 5 RJ-45 connector on the other FC-50 unit PC / DEVICE Button Press when a device is connected to the RS-232 port Release when a PC is connected to the RS-232 port... -
Page 8: Connecting The Fc-50 Rs-232 Range Extender
Figure 3, do the following: 1. Connect a PC to the RS-232 port of the first FC-50 unit and release the PC/DEVICE button. 2. Connect the RS-232 port of the second FC-50 unit to a device (for example, a switcher) and push in the PC/DEVICE button. -
Page 9: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Connecting the FC-50 RS-232 Range Extender Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors Table 3 Figure 4 define the UTP CAT 5 PINOUT, using a straight pin to pin cable with RJ-45 connectors: Table 3: CAT 5 PINOUT... -
Page 10: Technical Specifications
Technical Specifications Technical Specifications The FC-50 technical specifications are shown in Table Table 4: Technical Specifications of the FC-50 PORTS: RS-232 on a 9-pin D-sub connector , 1 CAT 5 RJ-45 connector BAUD RATES: Up to 115.2kbaud DISPLAY: GREEN=PC/RED=DEVICE LED OPERATING TEMPERATURE: 0°... - Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
