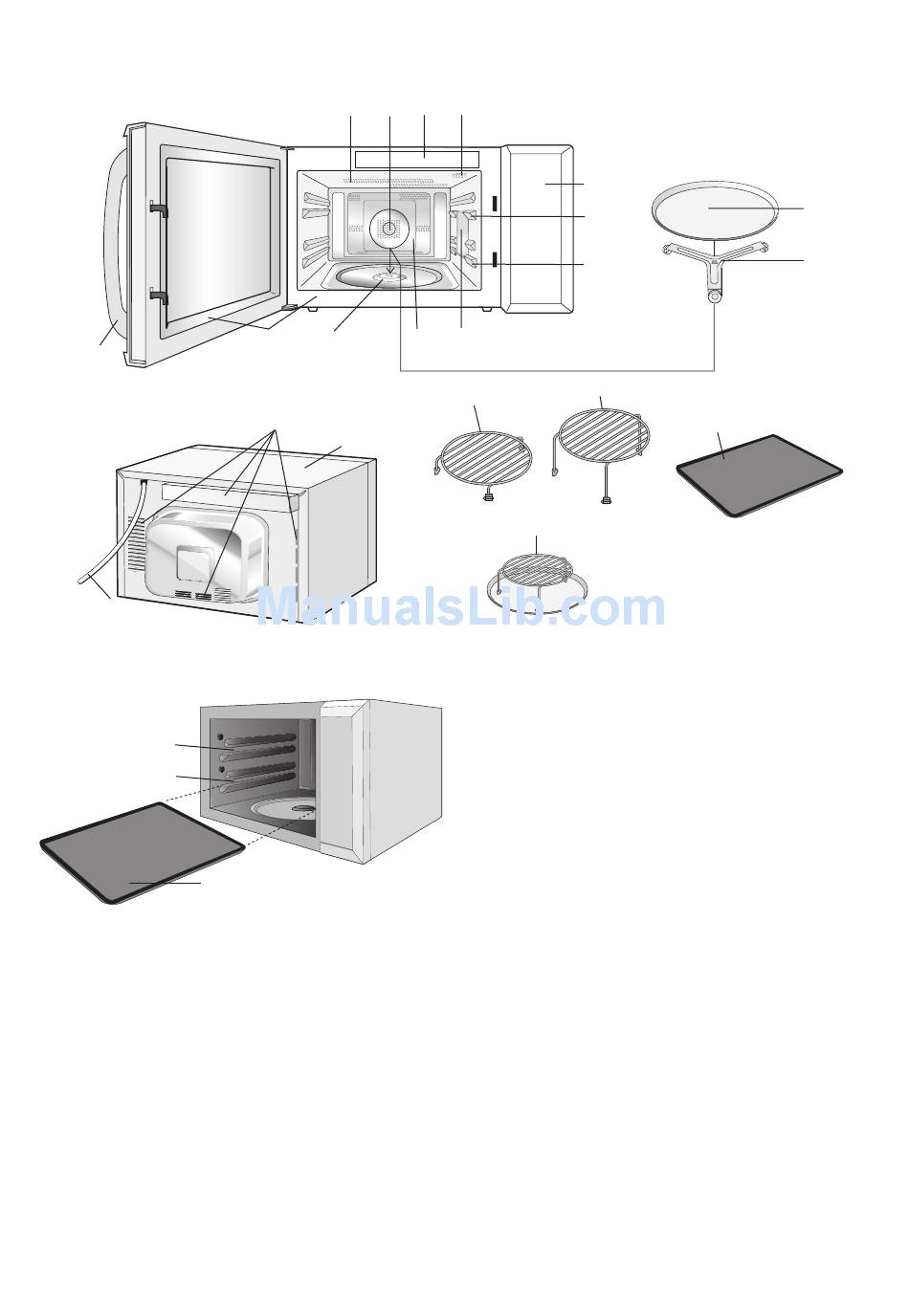

OVEN DIAGRAM

11
14
<Figure A>
rail 1
rail 2
• Place the roller stay into the coupling in the centre
of the oven floor, ensuring you place it TOP side up,
(TOP is engraved on one side). It should be able to
freely rotate around the coupling.
• Place the turntable on to the roller stay.
• Place the high/low racks onto the turntable if
necessary. These racks are used for cooking in
Convection, Mix or Grill mode.
• Use the square tray for convection only. See page
8. When using one square tray, place it at rail 2 as
shown in the figure A.
• Do not substitute similar types of racks or square
trays for these specially designed ones.
1
10
9
12
13
Square tray
20 3
2
8 7
17
<Rack + Turntable>
1. Grill heating element
2. Convection heating element
3. Oven lamp
4. Control panel
5. Shelf rail (rail 1)
6. Shelf rail (rail 2)
7. Waveguide cover (Do not remove)
8. Oven cavity
9. Coupling
10. Door seals and sealing surfaces
11. Door opening handle
12. Ventilation openings
13. Outer cabinet
14. Power supply cord
15. Turntable
16. Roller stay
17. Low rack (height: 4 cm)
18. High rack (height: 15.5 cm)
19. Square tray (x2)
20. Menu label
NOTES:
• Always operate the oven with the turntable and
roller stay fitted correctly. This promotes thorough
even cooking. A badly fitted turntable may rattle,
may not rotate properly and damage the oven.
• The turntable rotates clockwise or counter
clockwise. The rotary direction may change each
time you start the oven. This does not affect cooking
performance.
• When you order accessories, please mention two
details: part name and model name to your dealer
or SHARP authorised service facility.
4
4
5
6
18
19 (x2)
15
16
