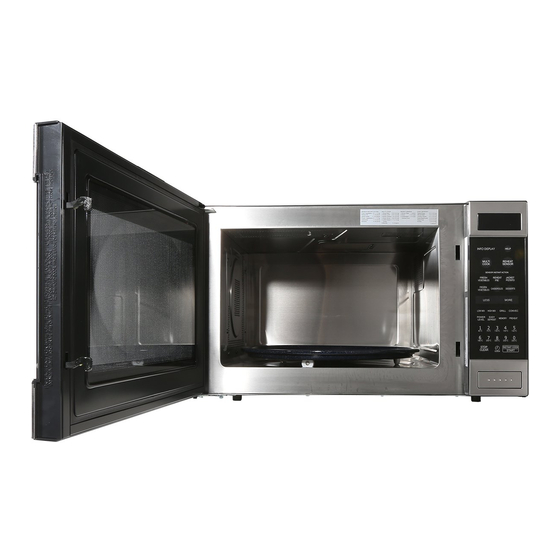

Sharp Carousel R-980J Operation Manual

Convection microwave oven.
Hide thumbs

Advertisement

Advertisement

   Also See for Sharp Carousel R-980J

   Related Manuals for Sharp Carousel R-980J

   Summary of Contents for Sharp Carousel R-980J

  • Page 1: Table Of Contents

    A42430, SCA/SCNZ R980J/990J(S) O/M ® CONVECTION MICROWAVE OVEN R-980J MODELS R-990J(S) OPERATION MANUAL CONTENTS Page Warranty Introduction Warning Special Notes and Warning Installation Instructions Oven Diagram Operation of Touch Control Panel Control Panel Display Touch Control Panel Layout Before Operating...
  • Page 2: Warranty

    Consumer Electronic Products Congratulations on Your Purchase! This Sharp product is warranted against faults in materials and manufacture for a period of twelve (12) months from the date of original purchase. If service is required during the warranty period, please contact your nearest Sharp Approved Service Cen- tre.
  • Page 3: Introduction

    Please take some time to read your operation manual carefully, the automatic cooking menus programmed into your new oven have been carefully developed to give optimum results when the step-by-step instructions are followed. When selecting another home appliance, please again consider our full range of Sharp products. SCA/SCNZ R980J 1-13 04.5.21, 11:27 AM...
  • Page 4: Warning

    Do not try to adjust or repair the oven yourself. It is hazardous for anyone other than a qualified service technician trained by SHARP to carry out any service or repair operation. Especially those which involve the removal of a cover which gives protection against exposure to microwave energy are very hazardous.
  • Page 5: Special Notes And Warning

    A42430, SCA/SCNZ R980J/990J(S) O/M SPECIAL NOTES AND WARNING DON’T Eggs, fruits, * Puncture egg yolks and whites and * Cook eggs in shells. This prevents nuts, seeds, oysters before cooking to prevent "explosion", which may damage the vegetables, "explosion". oven or injure yourself. sausages and * Pierce skins of potatoes, apples, * Cook hard/soft boiled eggs.
  • Page 6: Installation Instructions

    If a generator is used, do not operate the oven with non-sinusoidal outputs. 9. Building the oven into the wall. A Sharp built-in kit model number RK-J90W for R-980J and RK-J90S for R- 990J(S) are available which enable the microwave oven to be integrated within a kitchen, the kit is available from your retailer.
  • Page 7: Operation Of Touch Control Panel

    SENSOR Indicator COOK KG HELP Touch Control Panel Layout " & R-990J(S) R-980J 1. HELP PAD 6. CONVECTION COOKING 10. NUMBER AND TEMPERATURE Press to select auto start, information FUNCTION PADS PADS guide on/off, child lock, demonstration Press to cook with either func- Press to enter cooking times, clock modes or info on pads.
  • Page 8: Before Operating

    A42430, SCA/SCNZ R980J/990J(S) O/M BEFORE OPERATING * This oven is preset with the INFORMATION GUIDE ON. To assist you in programming your oven, the information guide will appear in the display. In this manual, the display of information guide is abbreviated. * When you become familiar with your oven, the information guide can be turned off.
  • Page 9: Microwave Cooking

    A42430, SCA/SCNZ R980J/990J(S) O/M MICROWAVE COOKING Microwave Time Cooking This is a manual cooking feature. First enter the cooking time then the power level. You can programme up to 99 minutes, 99 seconds. There are five different power levels. – – –...
  • Page 10: Sequence Cooking

    Instant Cook™ For your convenience Sharp’s Instant Cook allows you to easily cook for one minute on HIGH power. Step Procedure Pad Order Display Press the INSTANT COOK/START pad.
  • Page 11: Heating Without Food

    A42430, SCA/SCNZ R980J/990J(S) O/M HEATING WITHOUT FOOD Before the first use and after cleaning the convection heater must be conditioned. The procedure involves heating for a period of 20 minutes. You may notice some smoke and odour during this process, the oven is not out of order.
  • Page 12: To Preheat And Cook By Convection

    A42430, SCA/SCNZ R980J/990J(S) O/M To Preheat and Cook by Convection * Suppose you want to preheat the oven to 200°C then cook for 20 minutes at 200°C. Step Procedure Pad Order Display Press the PREHEAT pad. CONV PREHEAT CONV CONV (Operation guide off : Press desired preheat temperature CONV...
  • Page 13: Mix Cooking

    A42430, SCA/SCNZ R980J/990J(S) O/M MIX COOKING Your Convection Microwave Oven has two preprogrammed settings that make it easy to cook with both convection heat and microwaves automatically. The LOW MIX pad is preprogrammed for 180°C with 10% microwave power, while the HIGH MIX pad is preprogrammed for 200°C with 30% microwave power.
  • Page 14: To Preheat And Cook With Automatic Mix Settings

    A42430, SCA/SCNZ R980J/990J(S) O/M To Preheat and Cook with Automatic Mix Settings * Suppose you want to preheat the oven to 200°C and roast a chicken for 20 minutes on HIGH MIX. Step Procedure Pad Order Display Press the PREHEAT pad. CONV PREHEAT CONV...
  • Page 15: Convection And Microwave Cooking

    A42430, SCA/SCNZ R980J/990J(S) O/M Convection and Microwave Cooking Your Convection Microwave Oven can be programmed to combine convection and microwave cooking operations. * Suppose you want to roast chicken pieces for 15 minutes at 180°C and then cook at 8 minutes on MEDIUM. Step Procedure Pad Order...
  • Page 16: Grilling

    A42430, SCA/SCNZ R980J/990J(S) O/M GRILLING The grill effect is achieved using fan forced heat at a temperature of 250°C. Preheating is automatic when the GRILL setting is used. Only actual cooking time is entered; the oven signals when it is preheated to 250°C. Use Grill setting for steaks, chops, chicken pieces and many other foods. The turntable should remain in oven when preheating.
  • Page 17: Preheating

    A42430, SCA/SCNZ R980J/990J(S) O/M PREHEATING For best results, preheat to the required temperature with the turntable in the oven. Add food after preheating. * To preheat the oven to 200°C Step Procedure Pad Order Display Press the PREHEAT pad. CONV CONV PREHEAT CONV...
  • Page 18: Automatic Operations

    Press once to cook 6 popular menus. Follow the instructions provided in SENSOR INSTANT ACTION MENU GUIDE or SENSOR INSTANT ACTION RECIPES on pages 6 - 8 of the cooking guides. R-980J R-990J(S) * Suppose you want to cook 1.0 kg Fresh Vegetables. Step...
  • Page 19: Reheat Sensor

    A42430, SCA/SCNZ R980J/990J(S) O/M Reheat Sensor Press to select 3 popular reheat menus. Follow the instructions provided in REHEAT SENSOR MENU GUIDE on page 9 of the cooking guides. R-980J R-990J(S) Step Procedure Pad Order Display To reheat a Dinner Plate, press...
  • Page 20: Multi Cook

    5.Grilled Steak/Chops Follow the instructions provided in MULTI 3.Roast Chicken 6.Biscuits COOK MENU GUIDE or MULTI COOK RECIPES R-980J R-990J(S) on pages = - B of the cooking guides. * Suppose you want to cook 1.0 kg Roast Beef (Medium). Step...
  • Page 21: Easy Defrost

    The Easy Defrost feature allows you to defrost meats by entering weight. Follow the instructions provided in EASY DEFROST MENU GUIDE on page C of the cooking guides. R-980J R-990J(S) * Suppose you want to defrost 1.0 kg of Chicken Pieces.
  • Page 22: Other Convenient Features

    A42430, SCA/SCNZ R980J/990J(S) O/M OTHER CONVENIENT FEATURES Help Feature The HELP feature has 6 different programmes. Auto Start The Auto Start feature allows you to set your oven to start automatically. * Suppose you want to start cooking a casserole for 20 minutes on MEDIUM at 4:30 in the afternoon. (Check that the correct time of day is displayed.) Step Procedure...
  • Page 23: Child Lock

    A42430, SCA/SCNZ R980J/990J(S) O/M Information Guide On/Off This oven is preset with the Information Guide On. As you get more familiar with your oven, the Information Guide can be turned off. * To turn off the Information Guide. After step 1 for Auto Start. Step Procedure Pad Order...
  • Page 24: Demonstration Mode

    A42430, SCA/SCNZ R980J/990J(S) O/M Demonstration Mode This feature is mainly for use by retail outlets, and also allows you to practice key operations. * To demonstrate. After step 1 for Auto Start. Step Procedure Pad Order Display Press the number 4 pad. Press the INSTANT COOK/ INSTANT COOK START pad.
  • Page 25: Less/more Setting

    The cooking times programmed into the automatic menus are tailored to the most popular tastes. To adjust the cooking time to your individual preference –use the “more” or “less” R-980J R-990J(S) feature to either add (more) or reduce (less) cooking time.
  • Page 26: Memory

    A42430, SCA/SCNZ R980J/990J(S) O/M Memory Your oven has a memory to allow you to preset a frequently used cooking programme. The oven "memorises" the instruction and can recall this information when the time of day is displayed. This feature can be used for frequently prepared foods such as scrambled eggs, or special recipes you like to cook.
  • Page 27: Care And Cleaning

    If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box. If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTRE APPROVED BY SHARP. NOTE: 1.
  • Page 28: Quick Reference Guide

    SENSOR INSTANT REHEAT SENSOR EASY DEFROST MULTI COOK REFERENCE ACTION MENU GUIDE MENU GUIDE MENU GUIDE GUIDE UTENSIL GUIDE 5 MENU GUIDE 10 - ® TINSEB068WRRZ – J41 SHARP CORPORATION OSAKA, JAPAN Printed in Thailand SCA/SCNZ R980J C/B 04.6.8, 11:35 AM...
  • Page 29: Cooking Guides

    A42430, SCA/SCNZ R980J/990J(S) C/B HELPFUL HINTS MICROWAVE COOKING 1. ARRANGEMENT 8. SIZE Arrange foods carefully. Place thickest areas toward outside of dish. Small pieces cook faster than large ones. To speed cooking, cut pieces Arrange vegetables in a shallow dish in the following way: smaller than 5 cm so microwaves can penetrate to the centre from all sides.
  • Page 30 A42430, SCA/SCNZ R980J/990J(S) C/B HELPFUL HINTS CONVECTION COOKING MIX COOKING 1. There are two automatic, pre-programmed mix settings. 1. Use thick oven gloves when removing food or the turntable from the oven to PREVENT BURNS. Because accessible parts (e.g. oven door, oven cavity, dishes and accesso- a) Low Mix - Convection 180°C with ries) will become hot when in use.
  • Page 31 A42430, SCA/SCNZ R980J/990J(S) C/B HELPFUL HINTS GRILLING 1. Use thick oven gloves when removing food or the turntable from the oven to PREVENT BURNS. Because accessible parts (e.g. oven door, oven cavity, dishes and accessories) will become hot when in use. 2.
  • Page 32 A42430, SCA/SCNZ R980J/990J(S) C/B COOKWARE & UTENSIL GUIDE MICROWAVE CONVECTION GRILL COOKING METAL RACKS (LOW RACK ONLY) GLASSWARE/CERAMIC (HEAT RESISTANT) OVENPROOF GLASS METAL RACKS METAL COOKWARE OVEN BAGS ALUMINIUM FOIL For Shielding For Shielding CAKE TIN PIZZA TRAY NON-STICK PAPER GREASE-PROOF PAPER WAXED PAPER PLASTIC WRAP...
  • Page 33 A42430, SCA/SCNZ R980J/990J(S) C/B SENSOR INSTANT ACTION MENU GUIDE The final cooking result will vary according to the food condition (e.g. initial temperature, shape, qual- ity). Check the food after cooking and if necessary continue cooking manually. R-980J R-990J(S) Cooking Initial Standing Procedure...
  • Page 34 A42430, SCA/SCNZ R980J/990J(S) C/B Sensor Instant Action Recipes CASSEROLES Beef Stroganoff 4. For small quantity Serves 1 serve 2 serves 3 serves 4 serves The oven will stop and display at this stage stir the casserole, add 750 g 1 kg Ingredients;...
  • Page 35 A42430, SCA/SCNZ R980J/990J(S) C/B DESSERTS Apple Crunch Muesli Custard Delight Serve 4-6 serves Serve 2-4 serves 4-6 serves 6-8 serves 2-4 serves 6-8 serves Ingredients; Ingredients; can pie apples 300 g carton 300 g carton 400 g 600 g 800 g sour cream x 300 g White Wings butter cake mix...
  • Page 36 REHEAT SENSOR MENU GUIDE 1. Dinner Plate This feature is designed to give best results for the 2. Soup foods listed in the chart below. 3. Casseroles/Canned Food To reheat other foods, refer to your Sharp Cook Book. R-980J R-990J(S) Cooking Initial Standing...
  • Page 37 When you cook the following menus with MULTI COOK, press the MULTI COOK pad and the number pad of the menu. R-980J R-990J(S) The final cooking result will vary according to the food condition (e.g. initial temperature, shape, quality). Check the food after cooking and if necessary continue cooking manually.
  • Page 38 A42430, SCA/SCNZ R980J/990J(S) C/B MULTI COOK MENU GUIDE Initial Cooking Standing Procedure Menu Weight Temperature Method Time (approx.) Range (minutes) Grilled Steak/Chops 0.1-1.5 kg +3°C Preheat • Remove turntable before preheating. CONV. Refrigerated • Preheat is automatic for this menu. See recipes on page B •...
  • Page 39 A42430, SCA/SCNZ R980J/990J(S) C/B Multi Cook Recipes GRILLED STEAK/CHOPS BISCUITS MARINADE FOR LAMB CHOPS/PORK CHOPS Chocolate Chip Cookies Spicy Plum Marinade 125g butter 1 3/4 cups self-raising flour, sifted cup caster sugar teaspoon salt (for 8 chops) cup brown sugar, lightly packed 125g choc bits tablespoons tomato sauce...
  • Page 40: Easy Defrost Menu Guide

    A42430, SCA/SCNZ R980J/990J(S) C/B EASY DEFROST MENU GUIDE Menu Quantity Standing Procedure Time min-max (kg's) (minutes) Minced Meat 0.1-3.0 • Place shielded frozen minced meat on a defrost rack. 10-15 Beef • When the oven has stopped, remove defrosted portions of mince, turn over and shield edges with foil strips.
