Appendix C: Flowcharts
C Flowcharts

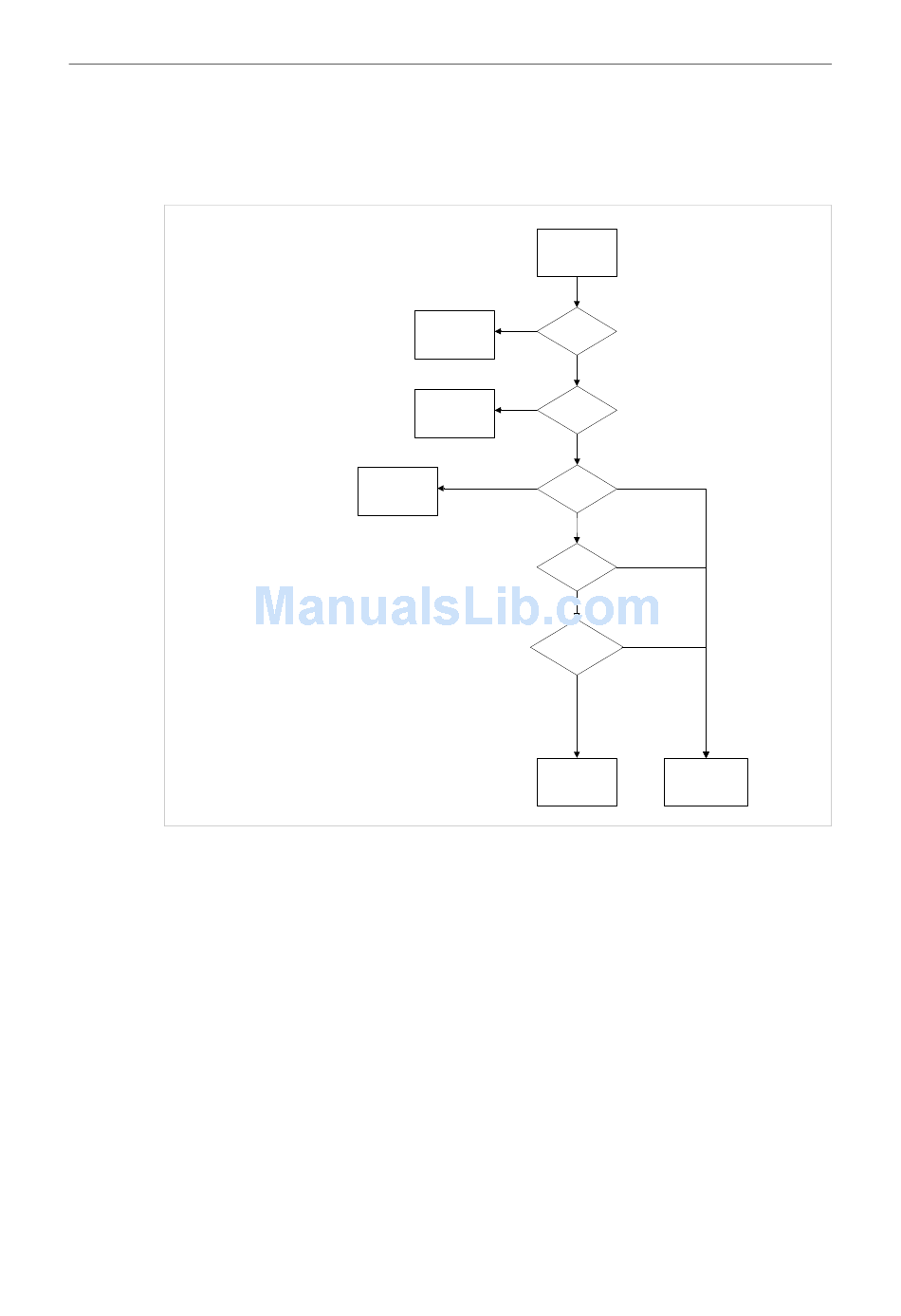

C.1 Flowchart — Record Data Access
This flowchart illustrates how Record Data requests are handled by the Anybus module.
Fig. 16
See also...
• Application Data Instances (ADIs), p. 13
• PROFINET IO Object (F6h), p. 184
• Details for command Get_Record in the
• Details for command Set_Record in the
®
Anybus CompactCom ™ 40 PROFINET IRT Network Guide
Reject
No
Record Data
request
Yes
PROFIsafe
handler
Range: AFF0h... AFFFh
I&M handler
I&M Indexes
Transparent Mode
PROFINET IO Object (F6h), p. 184
PROFINET IO Object (F6h), p. 184
Incoming
Record Data
Request
Api/Slot/Subslot
inserted?
Yes
Safety module?
No
Range: Profile Specific
Index Range?
Range: 0000h... 7FFFh
User specific indexes
Unknown AP
API?
Default AP (Zero)
Yes
(0000h... 7FFFh)
?
No
Get/Set_Attribute Get/Set_Record
(Application Data (PROFINET IO
Object) Object)
