Summary of Contents for Ingenico IMP3 Series

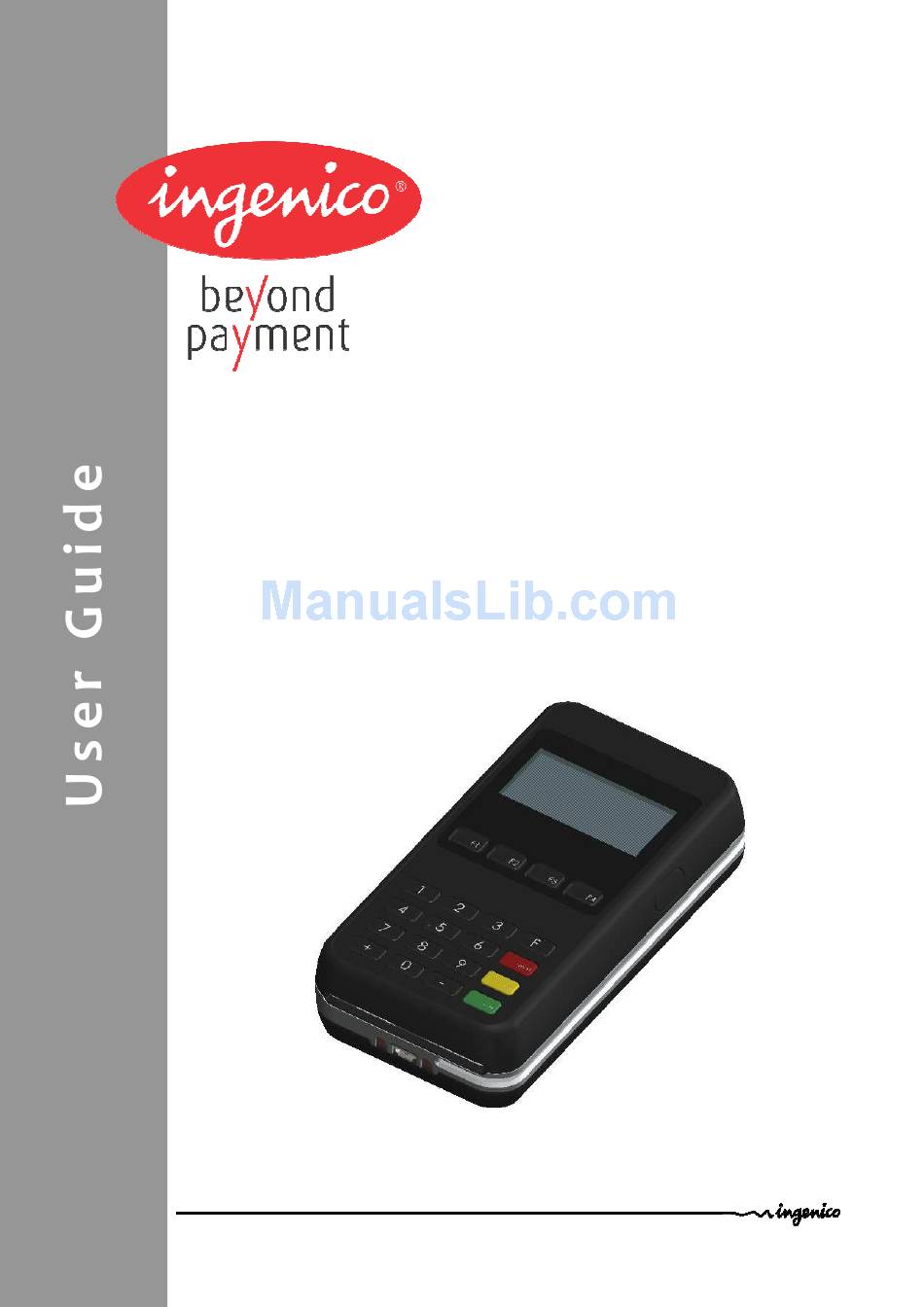

- Page 1 3xx Ingenico – 190-192 Avenue Charles de Gaulle 92200 Neuilly sur Seine Tél. 33(0)1 46 25 82 00 - Fax 33 (0)1 47 72 56 95...
-
Page 2: Table Of Contents
5.4. Barcode reader ______________________________________________________ 16 5.5. Card insertion _______________________________________________________ 16 5.5.1. Swiping a card ________________________________________________________________ 16 5.5.2. Inserting a chip card ____________________________________________________________17 5.5.3. Reading Contactless (Optional) ___________________________________________________17 • iMP 3xx 2/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... - Page 3 6. Maintenance _________________________________________________18 Cleaning of the terminal___________________________________________________ 18 6.1. Transport and storage ________________________________________________ 18 6.2. Troubleshooting _____________________________________________________ 18 6.3. End of life___________________________________________________________ 19 • iMP 3xx 3/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved...
-
Page 4: Introduction
The iMP3xx is battery powered, use only Ingenico parts for replacement: The iMP3xx can be powered by different sources please respect these recommendations: iMP3xx can be USB powered;... -
Page 5: Unpacking
The application user guide (optional) WARNING The power supply unit provided with your equipment is specially designed for Ingenico terminals. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal. -
Page 6: Recommendations
Battery IMP3XX is fitted with battery specially designed for this terminal. • Only use the appropriate chargers and batteries listed in the Ingenico’s catalogue. • Do not short-circuit the battery. • Do not attempt to open the battery container. -
Page 7: Ec Standard Compliance Marking
-Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. • iMP 3xx 7/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... - Page 8 For products with no radio (FCC ID: XKB-IMP3XX & FCC ID: XKB-IMP3XXCX) : This Class (B) digital apparatus complies with Canadian ICES-003 CAUTION The user is cautioned that any changes or modification not approved by INGENICO could void user’s authority to operate the equipment. •...
-
Page 9: Main Characteristics
3.5. Main Characteristics The main technical characteristics of the terminal Ingenico IMP3XX are: Mass 260 g Dimensions 132x72x32 mm (l x w x h) Battery 1150 mAh Li-ion Electrical mains network 100-240VAC / 50-60 Hz - Class II equipment Operating conditions Ambient temperature from +5°C to +40°C... -
Page 10: Installation And Connection
Before starting, switch off the terminal and the iPhone 4 and disconnect USB cable if fitted • Remove iPhone 4 from iMP3xx . • Pull up battery door • iMP 3xx 10/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... -
Page 11: Iphone 4 Insertion
Before starting, switch off the terminal and the iPhone 4 and disconnect USB cable • Pull the top side cover and rotate as shown on drawing below. • Insert carefully iPhone 4 bottom side first. • iMP 3xx 11/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... -
Page 12: Charging Imp3Xx
RAM memory. When the main battery is removed, the backup battery retains date and time for at least 10 minutes. A battery indicator is provided on the iMP3xx screen, indicating the charge of the module. • iMP 3xx 12/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... -
Page 13: Positioning The Terminal
USB cable connection A USB connector is located on the front of the terminal. • Present the device in front of the connector and plug it • iMP 3xx 13/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... -
Page 14: Cable Disconnection
USB Connector CAUTION Use only Ingenico cable or accessory not to void warranty. 4.7.2. Cable disconnection • On specific cable, an handle helps the disconnection 4.7.3. Cradle insertion • Present the device over the cradle face to iPhone side and plug it carrefully guidance Slots •... -
Page 15: Daily Use
‘-‘ key and F2 key in order to decrease the contrast, or the ‘-‘ key and F3 key in order to increase. • iMP 3xx 15/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... -
Page 16: Barcode Reader
Insert the card manually in the driver, magstripe-facing right. Swipe the card with constant speed, not too slow not too fast, to maximize the reading and avoid annoying repetitions. • iMP 3xx 16/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... -
Page 17: Inserting A Chip Card
The card read is successful when all four status lights are lit and the confirmation tone is heard. • iMP 3xx 17/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... -
Page 18: Maintenance
Verify that the magnetic strip is not damaged, grooved or cracked • Make sure you have inserted correctly the smart card into the smart card reader and removed the card only after the transaction • iMP 3xx 18/20 Copyright © 2010 Ingenico 900004435 R11 000 02 All rights reserved... -
Page 19: End Of Life
To assure that the product is collected and recycled with respect to the environment, you must contact your supplier (in defect, contact the Ingenico local office or the commercial head office in charge of your country on www.ingenico.com, « contact us » page). - Page 20 INGENICO. Moreover, nobody is authorized to place this document at the disposal of any third party without the prior written permission of INGENICO. If such permission is granted, it will be subject to the condition that the recipient ensures that any other recipient of this document, or information contained therein, is held responsible to INGENICO for the confidentiality of that information.
