8262 DECT Handset
Alarms: Geolocation and notification
Installation Manual
8AL90324ENAAed01-1602

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8262 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcatel-Lucent 8262

Summary of Contents for Alcatel-Lucent 8262

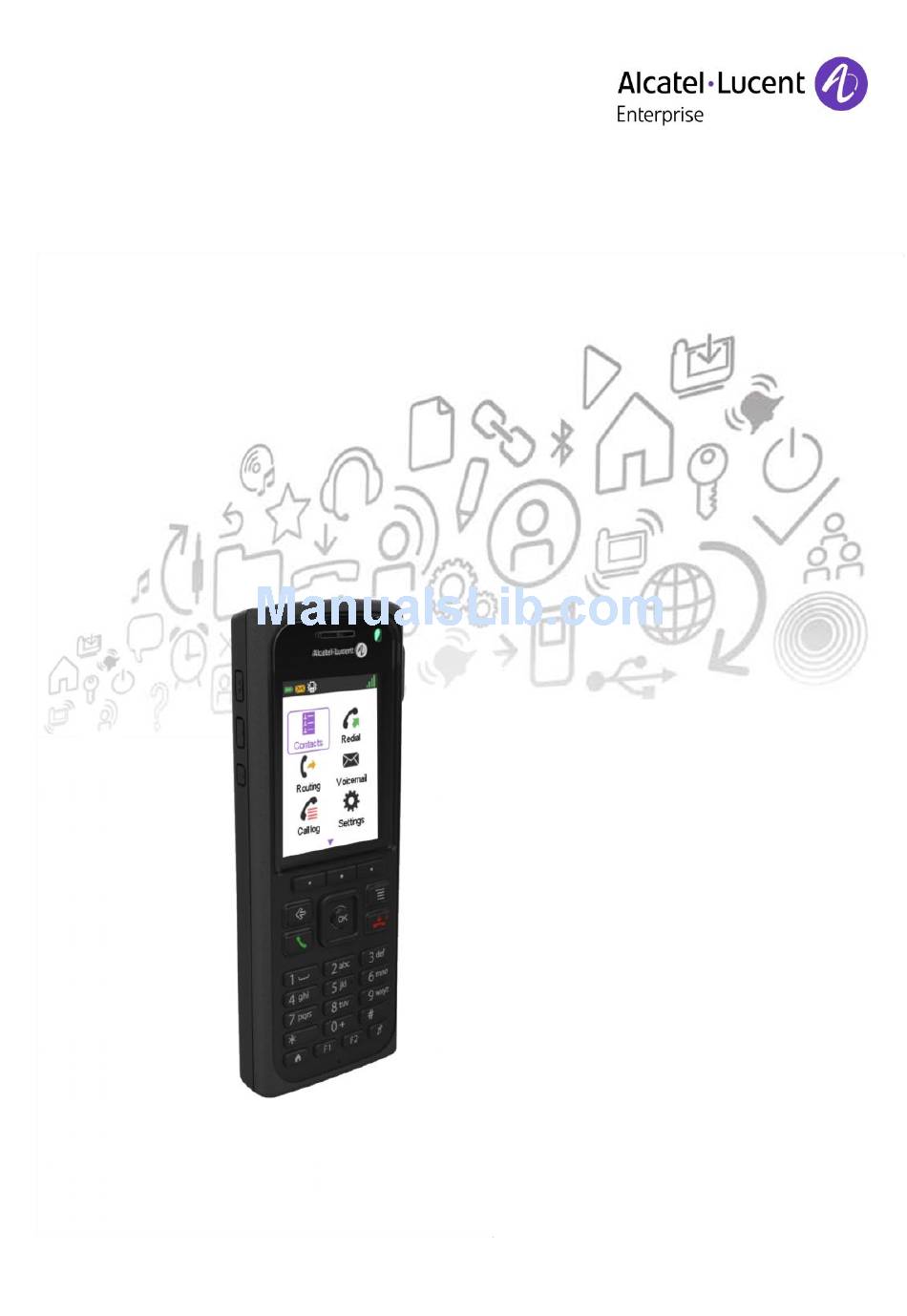

  • Page 1 8262 DECT Handset Alarms: Geolocation and notification Installation Manual 8AL90324ENAAed01-1602...

  • Page 2: Table Of Contents

    8262 DECT Handset - Alarms: Geolocation and notification TABLE OF CONTENTS 1 CONFIGURATION DOCUMENTATION 1.1 I NTRODUCTION 1.2 O VERALL SOLUTION ARCHITECTURE 1.3 F EATURE CONFIGURATION WITH ALARM SERVER 1.4 C ONFIGURE EMERGENCY CALL 1.5 C “ “ ONFIGURE THE...
  • Page 3 8262 DECT Handset - Alarms: Geolocation and notification 3 ALARM ACKNOWLEDGMENT 3.1 E ND THE LOCATION AUDIO SIGNAL 3.2 A LARM ACKNOWLEDGMENT 3.3 C HANGE THE ACKNOWLEDGMENT PASSWORD 4 COMMUNICATION SERVER CONFIGURATION 4.1 I NTRODUCTION 4.2 A PCX E LARM SYSTEM SUPPORT FOR...

  • Page 4: Configuration Documentation

    1 Configuration documentation This document describes the various service configurations and related parameters to alarm systems targeted to premises equipped with Alcatel-Lucent Enterprise (ALE) Call Servers infrastructure, DECT radio coverage via Base Stations, DECT wireless handsets, associated with an alarm server or not.
  • Page 5 8262 DECT Handset - Alarms: Geolocation and notification 1.2.2 Alcatel-Lucent Enterprise alarm server: OpenTouch Notification Service The ALE OpenTouch Notification Service (OTNS) offers a native and optimized integration with the ALE Call Servers and all ALE wired and wireless sets, including DECT handsets with lone worker protection function.
  • Page 6 Third party alarm server architecture – example of New Voice Mobicall alarm server Alarm processing will be managed together by the Alcatel-Lucent Enterprise call server and third party alarm servers. Following is an example of such architecture using the New Voice Mobicall alarm server.
  • Page 7 8262 DECT Handset - Alarms: Geolocation and notification 1.2.4 Offered Alarm services The Alcatel-Lucent Enterprise DECT system coupled to an alarm server offers functionalities such as live calls, emergency calls, event keys, status calls, Mandown alarm, no movement alarm, shock alarm and pull cord alarm.

  • Page 8: Feature Configuration With Alarm Server

    8262 DECT Handset - Alarms: Geolocation and notification 1.3 Feature configuration with alarm server To access the configuration menus of the various features:  Access MENU.  Alarm Set. Access to Alarm settings menu.  If configured. Enter device PIN code (The default is 0000).
  • Page 9 8262 DECT Handset - Alarms: Geolocation and notification  Location Signal: this menu allows activation and configuration of the location audio signal (LAS) feature of the phone. The LAS is triggered by the handset if the menu is activated on the handset.

  • Page 10: Onfigure Emergency Call

    8262 DECT Handset - Alarms: Geolocation and notification 1.4 Configure emergency call Emergency calls are initiated by the user by pressing and holding the “Emergency call“ key or the OK key. An emergency call is used to signal an emergency situation to the server, such as body or material injury.

  • Page 11: Configure The "No Movement" Alarm (No Movement)

    8262 DECT Handset - Alarms: Geolocation and notification 1.6 Configure the “No movement“ alarm (No movement)  Access MENU.  Access to Alarm settings menu (password).  Alarm trigger  No movement  Mode: select the activation option. Call to number: an audio call is started with the predefined emergency number.

  • Page 12: Configure The Pull Cord Alarm (Pull Cord)

    8262 DECT Handset - Alarms: Geolocation and notification 1.8 Configure the pull cord alarm (Pull cord)  Access MENU.  Access to Alarm settings menu (password).  Alarm trigger  Pull cord  Mode: select the activation option. Call to number: an audio call is started with the predefined emergency number.

  • Page 13: Configure The Key Event Calls

    8262 DECT Handset - Alarms: Geolocation and notification 1.10 Configure the key event calls Key event calls are also initiated by users when pressing particular keys on the numeric keypad. Activating the key events feature enables the OK key as the emergency call key. Pressing and holding this key triggers an emergency call.

  • Page 14: Alarms Settings

    8262 DECT Handset - Alarms: Geolocation and notification 2 Alarms settings 2.1 Configure the alarm mode (Alarm mode) Depending on the selected mode, the message will contain reduced or full location data. Mode selection is performed once for all the alarm features.

  • Page 15: Hange The Alarm Password

    8262 DECT Handset - Alarms: Geolocation and notification  Normal alarm / Urgent alarm / Very urgent alarm Select the ring to associate to the normal, urgent or very urgent alarm (choice 1 to 4).  Normal alarm vol. / Urgent alarm vol. / Very urgent volume Select the volume to associate to the normal, urgent or very urgent alarm (choice 1 to 4).

  • Page 16: Onfigure The Location Audio Signal

    8262 DECT Handset - Alarms: Geolocation and notification 2.4 Configure the location audio signal. After an alarm is triggered, the alarm server can set a location audio signal on the phone. This signal is designed to help rescue teams to locate the phone and its user.

  • Page 17: Configure The Parameter: Delay Time

    8262 DECT Handset - Alarms: Geolocation and notification 2.6 Configure the parameter: Delay time This parameter is a time delay where the handset is in an alarm condition before triggering the prealarm phase. This phase does not apply to the feature: Emergency call.

  • Page 18: Onfigure The Parameter : Inactive Dialing Time

    8262 DECT Handset - Alarms: Geolocation and notification 2.9 Configure the parameter: Inactive dialing time Inactive dialing time: this parameter defines the time before the set can get in alarm condition after dialing a number is interrupted more than the inactive dialing time value.

  • Page 19: Preferred Location

    8262 DECT Handset - Alarms: Geolocation and notification 2.12 Configure the parameter: Preferred Location This parameter defines the preferred mode for location (DECT or Beacon).  Access MENU.  Access to Alarm settings menu (password).  Location & events ...

  • Page 20: Alarm Acknowledgment

    8262 DECT Handset - Alarms: Geolocation and notification 3 Alarm acknowledgment After an alarm is triggered, the alarm server can set an location audio signal on the phone. This signal is designed to help rescue teams to locate the phone and its user.

  • Page 21: Communication Server Configuration

    A basic checklist of the necessary settings follows. More detailed information is available in the OmniPCX Enterprise installation manuals. 4.2 Alarm system support for OmniPCX Enterprise server 8262 DECT handset is supported in AGAP mode both on TDM and IP-DECT infrastructures. 4.2.1 OXE/Alarm server interface: ...
  • Page 22 8262 DECT Handset - Alarms: Geolocation and notification SIP can also be used for incoming calls to keep the current available features. Following figure shows example of prefixes & data digits propagation versus communication interfaces to Alarm server. The information presented is subject to change without notice. ALE International Enterprise assumes no responsibility for inaccuracies contained herein.
