NS-205G
Unmanaged 5-port Industrial 10/100/1000 Base-T
Ethernet Switch
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/ns_205g.html

1. Introduction

The NS-205G is 5-port unmanaged gigabit switches that support 10/100/1000
Base-T, with a 10/100/1000M auto-negotiation feature and auto MDI/MDIX
function. It can connect 5 workstations and automatically switches the
transmission speed (10 Mbps or 100 Mbps or 1000Mbps) for corresponding
connections.
That is an ideal solution for bandwidth-hungry applications (such as high
resolution digital image transmission, video/audio file streaming/downloading,
and server farm connectivity).
The flow control mechanism is also negotiated. There is link/data rate LEDs for
each port to aid trouble-shooting. Port connectors are shielded RJ-45

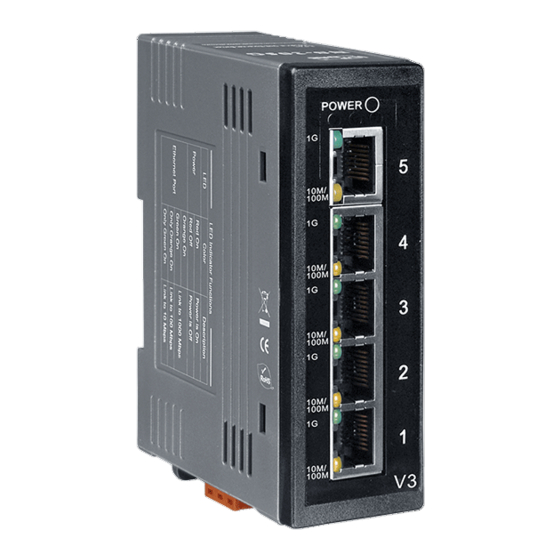

Figure 1 NS-205G
5-Port GigabitSwitch
NS-205G
- QuickStart (Feb/2017)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-205G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA NS-205G

Summary of Contents for ICP DAS USA NS-205G

  • Page 1 Product Website: http://www.icpdas-usa.com/ns_205g.html 1. Introduction The NS-205G is 5-port unmanaged gigabit switches that support 10/100/1000 Base-T, with a 10/100/1000M auto-negotiation feature and auto MDI/MDIX function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps or 1000Mbps) for corresponding connections.
  • Page 2 EMI radiation; improve EMI performance and ESD protection. 4. Checking Power: Since the NS-205G consumes 4.8W max, ensure that your power supply is able to meet this demand. The Input voltage range is +10~ +30VDC. 5-Port GigabitSwitch...
