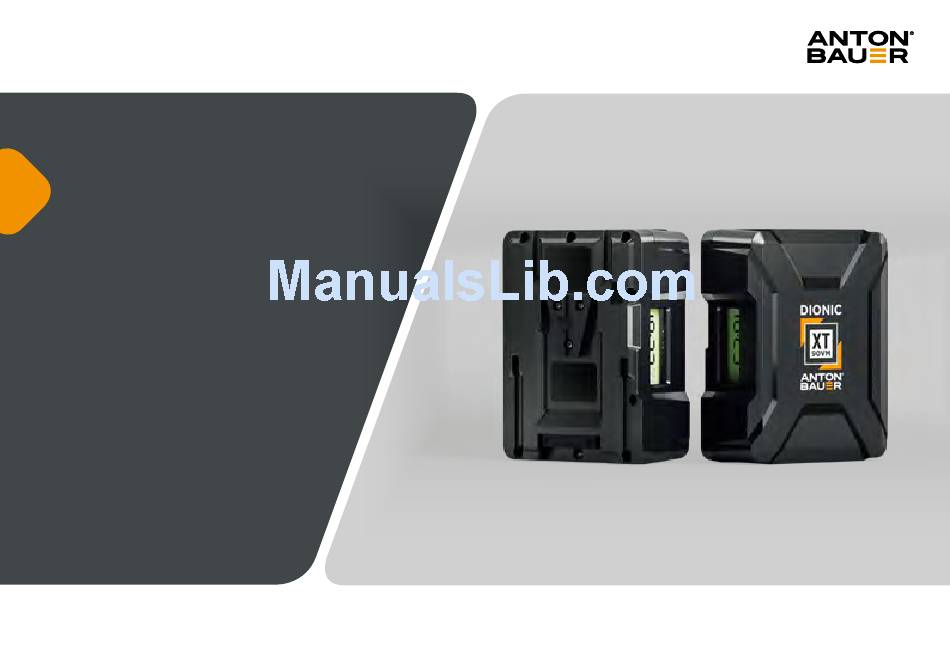

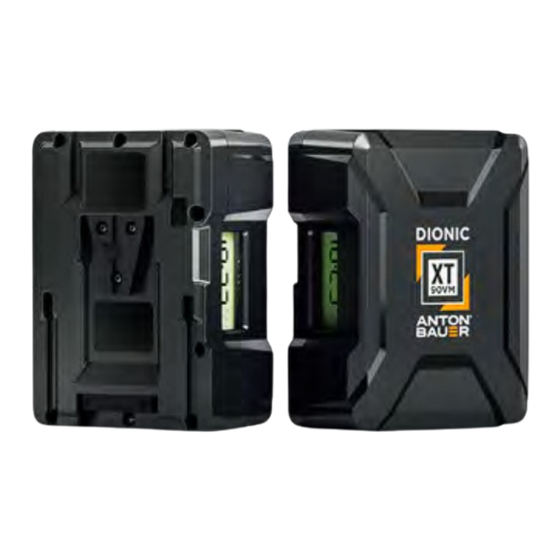

Page 1 USER GUIDE DIONIC Lithium-ion Battery Part No. 7595-0460 antonbauer.com...
Page 2 Original Instructions: English All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.
Page 3: Table Of Contents
Contents Safety ............................... 4 About this user guide ........................7 Components and connections Dionic XT Series LCD ............................8 Powertap® and USB ............................... 10 Operation ............................... 11 Technical Specifications ......................12 After Sales Support ........................13 General notices ..........................14 Warranty ..............................
Page 4: Safety
CAUTION! The product should not be used damage. Do not use a battery that has been The Anton/Bauer Dionic XT Series Lithium-ion outside the operating temperature limits. subjected to excessive mechanical shock or battery is specifically designed and optimized to Refer to the product technical specifications water damage.
Page 5 At the end of its useful life enter a “deep sleep” mode. The battery will Contact Anton/Bauer Customer Support contact the Anton/Bauer Customer Support “wake up” when placed on a charger. It is Group with additional inquires as to...
Page 6 Civil Aviation Organization (ICAO) regulations apply to all Lithium-Ion battery transport. Air Transportation Declaration Vitec Videocom, Inc. declares that the Anton/Bauer Dioni XT lithium-ion battery packs contain equivalent Lithium content (ELC) in a quantity exceeding 8 grams and therefore is considered and must be handled...
Page 7: About This User Guide
About this user guide Introduction Anton/Bauer Battery Compatibility The Anton/Bauer Dionic XT Series batteries contain a proprietary IP that increas- es run-time and lengthens life cycle, eliminating the negative effects incurred when running digital technology with traditional battery circuitry. All with An- Anton/Bauer Dionic XT Series batteries are compatible with all LP Per- ton/Bauer’s balanced, high-quality cells that deliver a long performance life.
Page 8: Components And Connections
Components and Connections Dionic XT Series LCD Every Dionic XT Series battery has an easy to read LCD which conveniently reports battery information in one of two ways. When the battery is sitting idle (no load When a specific load is applied to the For use in dark shooting environments, is applied) the LCD will show remaining battery, the LCD will display remaining...
Page 9 Components and Connections Dionic XT Series LCD The Dionic XT batteries are equiped with sophisticated on-board diagnostics. Entering diagnostic mode is achieved by a triple tap on the XT logo. Once in diagnostic mode different fields of information may be displayed. A single tap will advance to the next field. Fields available will depend on the installed firmware version.
Page 10: Powertap® And Usb
Components and Connections PowerTap® and USB The Dionic XT Series features an Integrated PowerTap and USB ports on the side of the battery to power camera accessories. The PowerTap allows for convenient deployment of up to 10 Amps of DC current for various parallel devices. The USB port supplies a regulated 5 volts and maximum 2 amps current and may be used for charging mobile devices.
Page 11: Operation
Stage 1 capabilities of the battery (typically a one or two Mount any Dionic XT Series battery to any open position on an Anton/Bauer charger and hour rate, depending on battery type). During the charger will automatically determine the appropriate charge routine and execute it.
Page 12: Technical Specifications
Technical Specifications Dimensions Physical Data Dionic XT G90 / V90 / G150 / V150 Dionic XT90V Dionic XT150G Dionic XT150V Dionic XT90G Capacity 99Wh Nominal 99 Wh Nominal 156 Wh Nominal 156 Wh Nominal Height 5.1 inches 5.1 inches 5.1 inches 5.1 inches...
Page 13: After Sales Support
After Sales Support Technical Support At Vitec Production Solutions we take great pride in the quality of our provide technical support for customers and partners, via telephone or products and we also recognize that your experience with our products email. For more information, including complete contact details, please go will be even more positive and productive with strong, effective support to: www.vitecsupport.com to back them up.
Page 14: General Notices
This equipment has been approved by one or more agencies. All changes when the equipment is operated in a commercial environment. This and/or modifications not expressly approved by Anton/Bauer. could void equipment generates, uses, and can radiate radio frequency and, if not the users’...
Page 15: Warranty
Shelton, Connecticut 06484. If you (the purchaser of the Product from Anton/Bauer will repair or replace the Product and return it to you, or Anton/Bauer, or the person for whom the Product was purchased, issue a credit, as applicable.
Page 16 Anton/Bauer with any battery, charger or accessory not manufactured, produced or sold by Anton/Bauer. Anton/Bauer only authorizes the use of original Anton/Bauer products with this Product. Use only original...
Page 17 WHERE POWERING CREATIVITY HAS NEVER BEEN EASIER. antonbauer.com...
