Summary of Contents for Anton/Bauer CINE VCLX/2

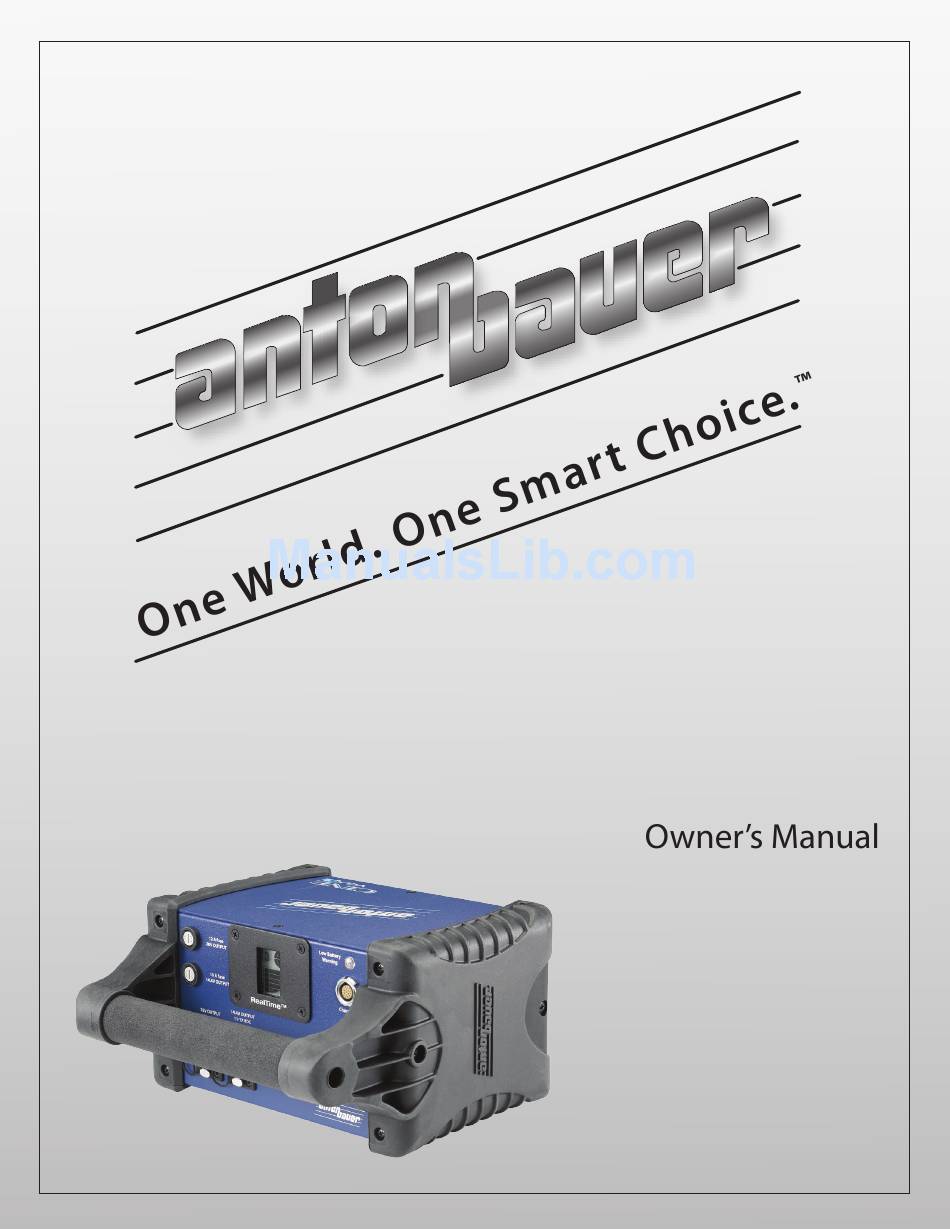

- Page 1 ® CINE VCLX/2 BATTERY 7595-0338 Rev D...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT INTRODUCTION 2-3 FEATURES CHARGING WITH CINE VCLX/2 CHARGER CHARGING WITH CINE VCLX CHARGER RealTime® LCD LOW BATTERY WARNINGS GUIDELINES FOR OPTIMUM PERFORMANCE AND MAXIMUM LIFE SERVICE SPECIFICATIONS LIMITED WARRANTY... -
Page 3: Important
IMPORTANT The CINE VCLX/2 Battery can only be charged with the CINE VCLX/2 or a CINE VCLX charger. DO NOT attempt to charge this battery with any other charger. The CINE VCLX/2 battery represents the latest in battery technology. Nickel Metal Hydride (NiMH) is similar to NiCad batteries in most character- istics. However, NiMH has more sensitive charging and discharging parameters and requires a longer charge time for optimum performance. The charge time is approximately 3 hours with the CINE VCLX/2 charger or 7 ½ hours with the CINE VCLX charger. INTRODUCTION The development of the CINE VCLX/2 battery system has been made possible by advancements in a cell technology. These nickel metal hydride cells provide the highest energy density cell available. The high performance of the new batteries is assured through the incorporation of the pioneering InterActive technology of the Anton/Bauer Digital system. The battery is equipped with an on board “fuel computer” which monitors energy put into and taken out of each battery, as well as critical operating characteristics and conditions. This data is communicated to the InterActive charger to ensure safe and optimize reliable performance. In addition, remaining battery capacity information is available to the operator by means of the RealTime™ LCD display on the battery. This battery surpasses the traditional “block battery”, which is the most common battery used to power film cameras, by having an extraor- dinary power rating of 280 watt hours or 19 ampere hours. The simultaneous 28v (regulated) and 14.4v (nominal) outputs allows powering of multiple pieces of equipment at the same time. Also, a regulated 28v output allows you to power virtually any film camera from a MovieCam to an ARRI 435. Cine VCLX/2 Low battery Fuel gauge 12A fuse warning LED warning LED 28V OUTPUT 10A fuse 14.4V OUTPUT 28V 3 Pin XLR 14.4V 4 Pin XLR... -
Page 4: Features
• Steady red: Battery holding for temperature stabilization High Current Output – Allows for 10 amp current drawn from • Flashing red: Charging 14.4 volt outputs and 12 amp draw from 28 volt output. ® • Steady green: Lifesaver or equalize mode. Batteries will remain charge and ready for use indefinitely • Flashing green: Full battery installed verifying charge state. Case design - The high quality design of the CINE VCLX/2 bat- tery protects the cells from impact and normal operating use. Individual Computer Testing - Like all professional Anton/Bauer batteries, this battery has been individually computer tested, for assurance of optimum capacity, voltage and overall quality. Low Voltage Cut-Off - The CINE VCLX/2 battery has a low volt- age cut-off to protect against damage to the battery. The low voltage cut-off is set to 12 volts. CINE-VCLX/2 Charger CS-GBC Charging LED’s Cable... - Page 5 CHARGING WITH THE CINE VCLX CHARGER Charge this battery fully before using. Allow the battery to reach a steady green mode before using. Charging is automatic. The flash- ing red and green lights indicate the charger and battery are establishing communications. Simply plug the 19p LEMO connector from the CS-GBC cable into the charger and then plug the other end (19p LEMO connector) into the battery. Note: it is recommended that the charger first be plugged into AC mains and then attach the battery for charging. The following are the standard indications on any Anton/Bauer charger: • Alternating red and green: Evaluating battery and/or rejuvenating low • voltage battery. • Steady red: Battery holding for temperature stabilization • Flashing red: Charging • ® Steady Green: Lifesaver or equalize mode. Batteries will remain charge and ready for use indefinitely Charging LED’s CINE VCLX Charger Charger CS-GBC Cable Cable...
-
Page 6: Realtime Lcd
“RES” Bar: Is the last “Fuel Gauge” Bar and will start to flash is required. RealTime automatically calculates the load and displays at 6% capacity and will continue to flash until EOD (End Of Dis- capacity information and battery status at all times. charge) is reached. “SERVICE” SEGMENT: Indicates self-diagnostic functions have Special electronics protect the NiMh cells in the battery from damage detected anomalies. A battery with a “Service” flag should be and to ensure safe operation. These electronics work in conjunc- returned to the Anton/Bauer Service Department tion with the battery electronics and will give the operator additional “SIDE BAR” SEGMENTS: Will remain ON unless a calibration indications in the RealTime display of the battery’s status as outlined charging routine is required below. Remaining Runtime Remaining Runtime If the SIDE BARS (only) flash, AND other icons are lit and not flash- Hours Minutes ing, this indicates the battery has requested to be fully charged and discharged in order to update its “learned capacity”. This “learning”... -
Page 7: Guidelines For Optimum Performance And Maximum Life
1. DO NOT attempt to service this battery under any circumstances. b. In the Field - Do not leave batteries in a hot vehicle trunk or out in direct sunlight unnecessarily. 2. DO NOT send this battery for service to anyone other than the Anton/ Bauer Customer Support Group. c. Storage - If batteries are not going to be used for several months,they should be fully discharged, sealed in a plas- 3. DO NOT re-cell this battery - At the end of its useful life contact the tic bag andstored in a refrigerator. Anton/Bauer Customer Support Group. This battery is unable to be re-celled due to proprietary circuitry that protects the battery. Contact 2. Use only an Anton/Bauer CINE VCLX or CINE VCLX/2 Char- Anton/Bauer to inquire about “Battery Modules” which are available ger and keep the battery on the charger until just prior to for your battery. being used. 3. Return battery to the charger as soon as possible after use preferrably within 24 hours. 4. Do not over-discharge batteries - It is quite proper to dis- charge a battery until a low voltage warning in the camera or VTR is observed. However, a switch to a fresh battery should SPECIFICATIONS occur as soon as possible following such indication a. A CINE... -
Page 8: Limited Warranty
LIMITED WARRANTY accessory not manufactured by and/or specified by Anton/Bauer. 0-12 MONTHS - “Anton/Bauer will repair or replace the product This warranty does not cover, and Anton/Bauer assumes no at Anton/Bauer’s option - FREE OF CHARGE.” responsibility for, any equipment or devices used in conjunction with the Product. This limited warranty for the product specified in this document is given by Anton/Bauer, Inc. (“Anton/Bauer”), 14 Progress Drive, ANTON/BAUER DISCLAIMS ANY LIABILITY FOR CONSEQUEN- Shelton, Connecticut 06484. If you have any questions regarding TIAL DAMAGES FOR BREACH OF ANY WRITTEN OR IMPLIED product applications, product specification, or to obtain warranty WARRANTY OF THE PRODUCT. UNDER NO CIRCUMSTANCES service on this or any Anton/Bauer product, contact the Anton/ WILL ANTON/BAUER BE RESPONSIBLE FOR ANY SPECIAL, Bauer Customer Support Group or the company at the address INCIDENTAL OR CONSEQUENTIAL DAMAGES. above. This Warranty is to be construed and enforced in accordance IMPORTANT: WARRANTY REGISTRATION CARD MUST BE with the law of the State of Connecticut, including the provisions MAILED WITHIN 30 DAYS OF PURCHASE TO QUALIFY FOR of the Uniform Commercial Code as adopted and from time to THIS WARRANTY. Warranty registration, including the serial num- time amended in the State of Connecticut, and not the Conven- bers of Anton/Bauer chargers used with this Product, must be tion for the International Sale of Goods. This choice of Connecti- supplied to Anton/Bauer. Anton/Bauer will warranty the Product cut law is exclusive of any Connecticut law that would require only against defects in material and workmanship for a period of reliance on any law foreign to Connecticut. Should any action of (see above) years from the date of purchase, in accordance with law or in equity be brought by any person under this Warranty, the terms set forth below, and then, only if the Product is used such action shall be brought only in the United States District only in conjunction with compatible Anton/Bauer chargers. If this Court for the District of Connecticut, or in any Superior Court in battery is returned to Anton/Bauer for warranty service it will be Fairfield County, Connecticut, U.S.A. Some states do not allow... - Page 9 The EPA certified RBRC Battery Recycling Seal on the Nickel Metal Hydride (Ni-MH) battery ® indicates Anton/Bauer is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful life, when taken out of service in the United States or Canada. The RBRC program provides a convenient alternative to placing used Ni-MH batteries into the trash ® or the municipal waste stream, which may be illegal in your area. Please call 1-800-8-BATTERY™ for information on Ni-MH battery recycling and disposal bans/restrictions in your area. Anton/ Bauer’s involvement in this program is part of our commitment to preserving our environment and conserving our natural resources. For recycling information outside the United States and Canada, contact Anton/Bauer ®...
- Page 10 The following are trademarks of Anton/Bauer, Inc.: Anton/Bauer, Anton/Bauer logo and parallelogram design, Aspekt, Automatique, DataTap, DIONIC, Elipz, Egripz, Elightz, Essentialz, Gold Mount, HubZ, HyTRON, Impac, Interactive and design, LifeSaver, Logic Series, Logic Series Logo, Maxx man logo design, Nexus, PowerStrap, Proformer, Probe, ProPac, RealTime, Satellight, Snap-On, Stasis, Stasis Flex, Tandem, TrimPac, Ultrakit, Ultralight, “One World.
