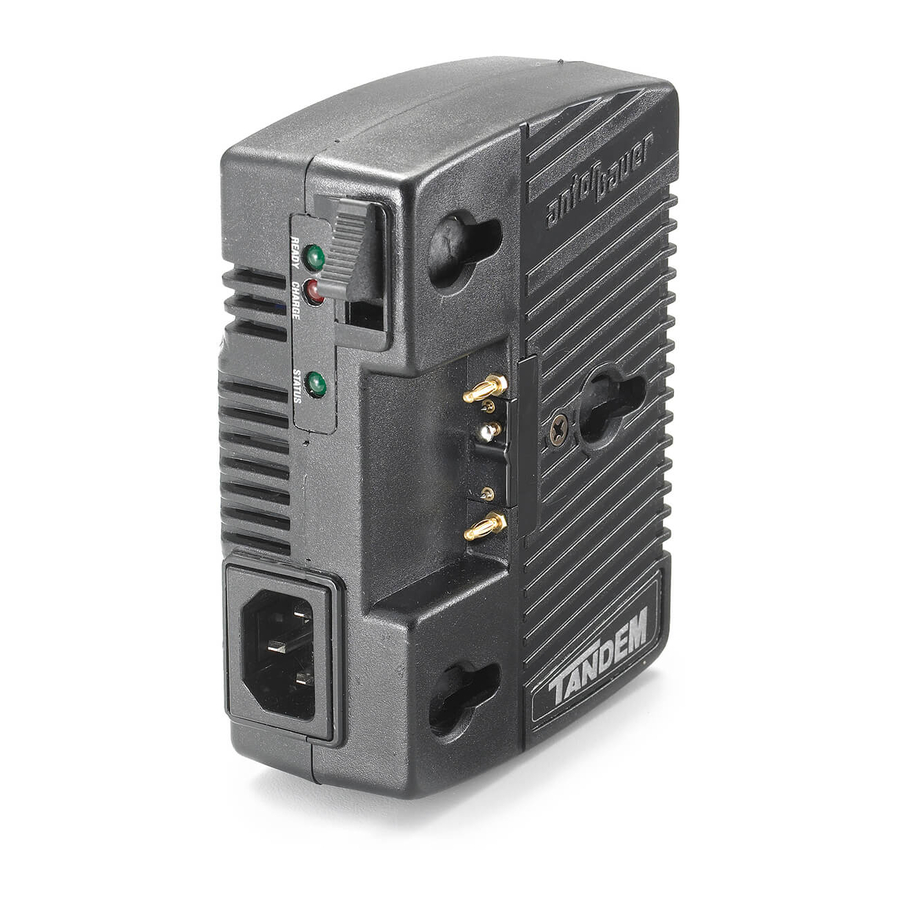

- Page 1 APPROVED COPY ® ™ TITAN Charger / Power Supply OWNER’S MANUAL...
- Page 2 APPROVED COPY...
-
Page 3: Table Of Contents
APPROVED COPY TABLE OF CONTENTS INTRODUCTION ... 1 FEATURES ... 1 SAFEGUARDS ... 2 GROUNDING/EARTHING ... 2 Charging ... 3 Applications ... 3 Three Stage Charging Methodology ... 4 LED Indications... 5 OPERATION AS DC CAMERA SUPPLY FROM MAINS POWER LOSS ... -
Page 4: Introduction
- Lightweight (16 oz.) WARNING Titan 70 is a 70 watt power supply. Exceeding 70 watts may cause fuse to short leaving unit unable to function. Please check equipment to be powered to ensure under 70 watts of total draw. -
Page 5: Safeguards
APPROVED COPY SAFEGUARDS Power Sources: This unit was designed to operate at mains voltages from 90 to 250 Volts AC, 50-60 Hz. Risk of Electrical Shock: Refer servicing to qualified service personnel. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. -
Page 6: Charging
APPROVED COPY Charging As with all Anton/Bauer chargers, charging with TITAN 70 is fully automatic. Mount any Logic Series battery to the TITAN 70 and it will automatically determine and execute the appropriate charge routine. Applications The Titan 70 will charge any Anton/Bauer Logic Series Gold Mount ®... -
Page 7: Three Stage Charging Methodology
APPROVED COPY Three Stage Charging Methodology In general, the TITAN 70 will deliver a three stage charge routine to each battery. 1. Stage One will deliver a high rate charge matched to the capabilities of the battery (typically a one or two hour rate, depending on battery type). During this... -
Page 8: Led Indications
APPROVED COPY LED Indications The TITAN 70 has three LEDs (one red, two green). One green LED indicates AC line voltage status. If the green status LED is steady, then line voltage is present. If the green status LED is flashing, then AC Line voltage has been removed. -
Page 9: Operation As Dc Camera Supply From Mains
TITAN 70 will again resume battery charging. If AC line voltage is removed from the TITAN 70, and a charged battery is mounted on the unit, power from the battery will be routed to the camera. When AC line voltage is restored, the battery will be re-evaluated for a proper charge routine. -
Page 10: Fcc Notice
Output Voltage 16.4 VDC Fuse Rating 7 amp Surface Mount Maximum Power 70 watts at 16.4 volts FUSE/TYPE REPLACEMENT The fuse of the TITAN 70 is a PCB mounted device which should only be replaced by a qualified service technician. -
Page 11: Warranty
APPROVED COPY LIMITED WARRANTY This one (1) year limited warranty for the product specified in this document is given by Anton/Bauer, Inc. (“Anton/Bauer”), 14 Progress Drive, Shelton, Connecticut 06484. If you have any questions regarding product applications, product specification, or to obtain warranty service on this or any Anton/Bauer product, contact the Anton/Bauer Customer Support Group or the company at the address above.
